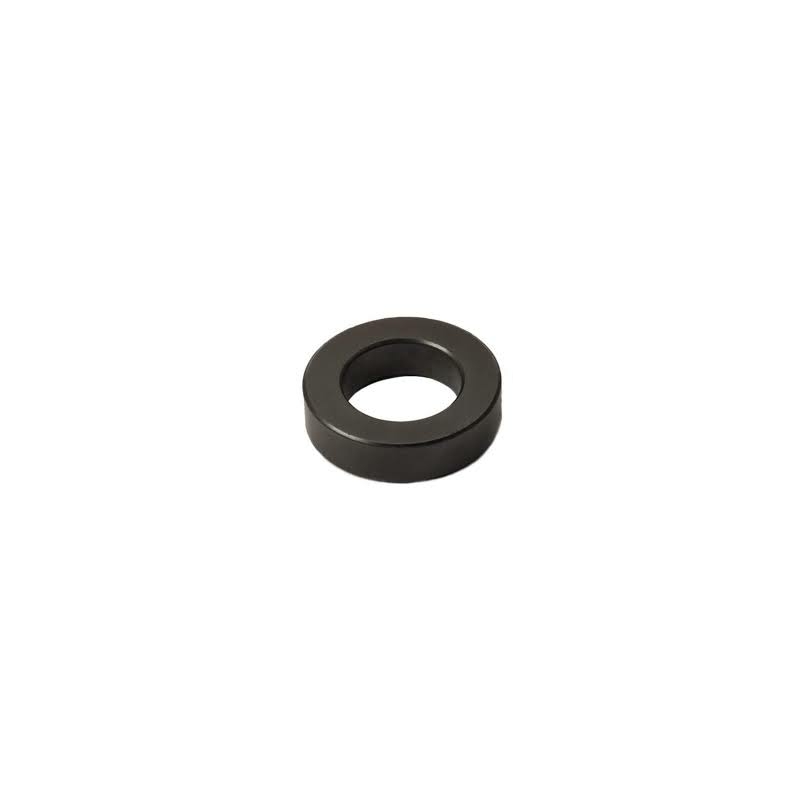

AMIDON FB-73-2401 FERRITE BEADS

Anico
Model: FB-73-2401
Availability: On stock
(1)
For EU private customers:
VAT is recalculated to your local VAT, when you add your country through checkout menu.
Companies with EU VAT number:
We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!
For NON EU customers:
We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.
0.47 EUR (0.39 EUR + VAT)
Qty:pieces

Description

Physical Dimensions



OD(A) = 0.380 in / 9.65 mm +/- 0.25 mm
ID(B) = 0.197 in. / 5.0 mm +/- 0.20 mm
Ht(C) = 0.190 in. / 5.05 mm +/- 0.45 mm
 AL=1600 +/- 20 %      uH=(AL*Turns2)/1000
Actual measured AL using 10 turns #28 wire
Temperature Stability (ppm /°C) = 6500
Color Code = shiny black
Application Freq Range
RFI Suppression below 30 MHz
