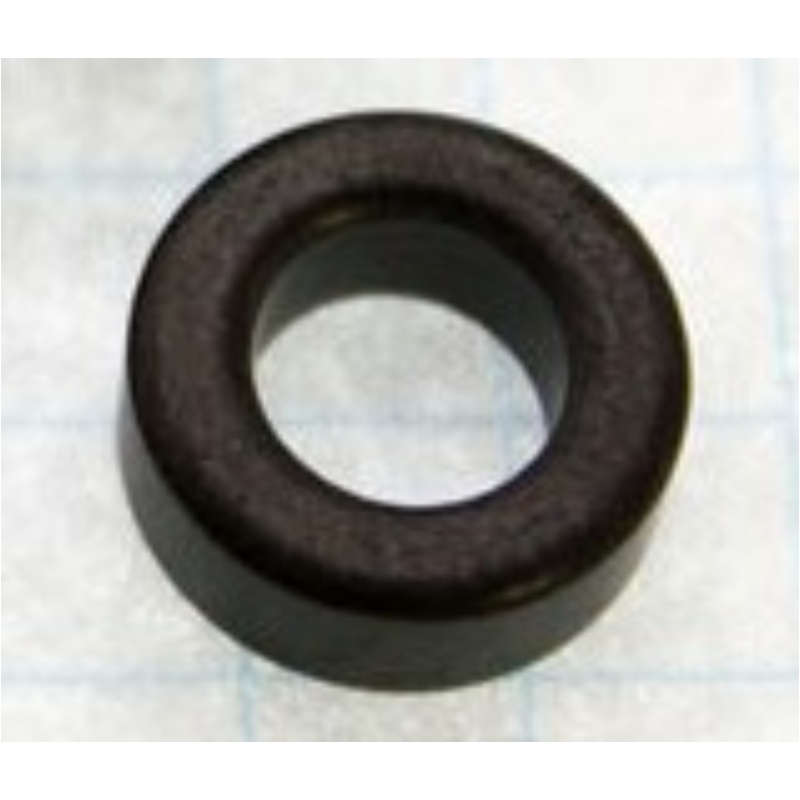

AMIDON FT50-75 FERRITE TOROID

Join our community for interesting content

Model:	FT50-75
Nyíregyháza (HU):	250 pcs in stock
Budapest (HU):	72 pcs in stock
Test device:	Back Order
(2)

For EU private customers:

VAT is recalculated to your local VAT, when you add your country through checkout menu.

Companies with EU VAT number:

We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!

For NON EU customers:

We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.

0.75 EUR (0.63 EUR + VAT)

Qty:pcs

Add to Cart

Description

AMIDON FT50-75 FERRITE TOROID

Physical Dimensions

OD(A) = 0.5 in / 12.7 mm +/- 0.25 mm
ID(B) = 0.281 in / 7.15 mm +/- 0.20 mm
Ht(C) = 0.188 in / 4.9 mm +/- 0.25 mm

A_L=4200 +/- 20 % uH=(A_L*Turns²)/1000
Actual measured AL using 10 turns #28 wire

Temperature Stability (ppm /°C) = 6000

Color Code = shiny black

Application Freq Range
Wideband Transformers 1 - 50 MHz
Power Transformers 0.1 - 3 MHz
RFI Suppression - above 1 MHz

The Al-factor and 1 turn Z impedance FRQ charts of the ferrite core can be downloaded from the attached documents.
