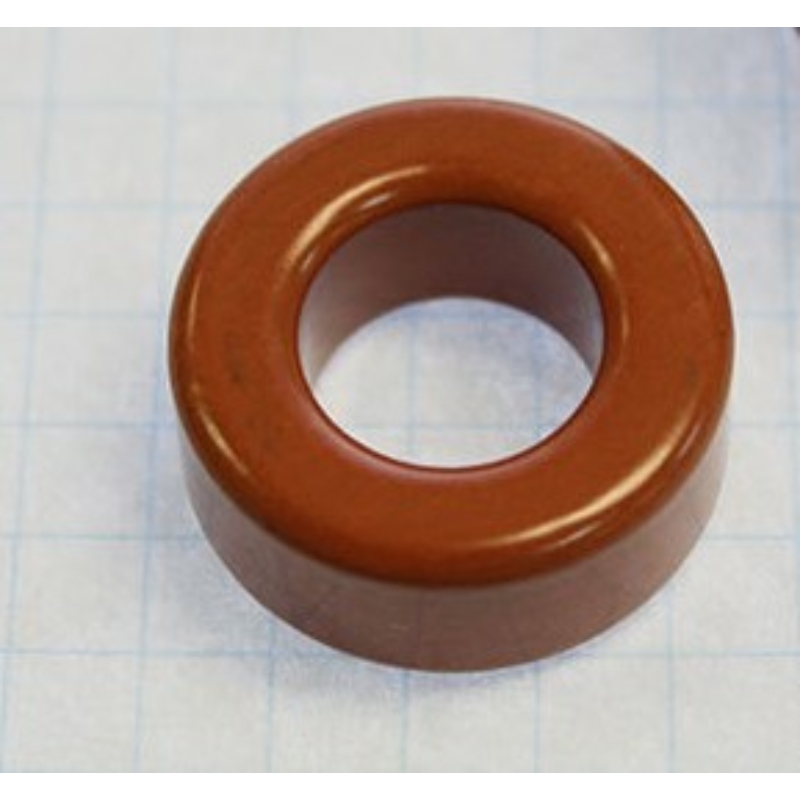

AMIDON T106-0 FERRITE TORROID

Anico
Model: T106-0
Availability: Back Order
(1)
For EU private customers:
VAT is recalculated to your local VAT, when you add your country through checkout menu.
Companies with EU VAT number:
We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!
For NON EU customers:
We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.
1.75 EUR (1.47 EUR + VAT)
Qty:pieces

Description

Physical Dimensions



OD = 1.06 in / 26.9 mm +/- 0.02 in
ID = .570 in / 14.5 mm +/- 0.02 in
Ht = .437 in / 11.1 mm +/- 0.025 in
 AL=1.9 +/- 5 %      uH=(AL*Turns2)/1000
Temperature Stability (ppm /°C) = 0
Color Code = Tan / Tan
Optimum Resonant Circuit Range
for highest Q and lowest core loss
50 MHz - 350 MHz
