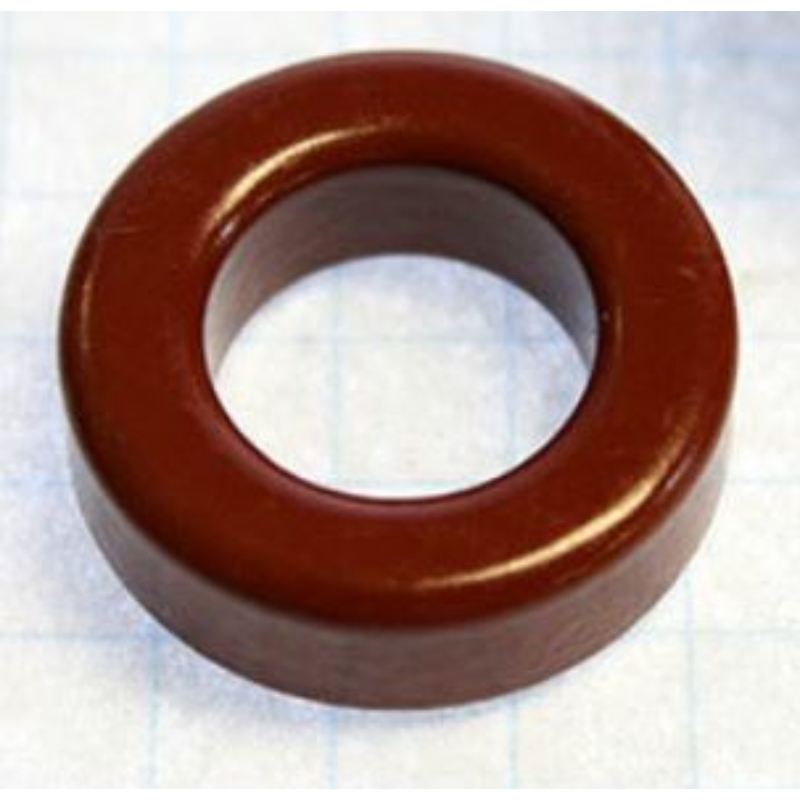

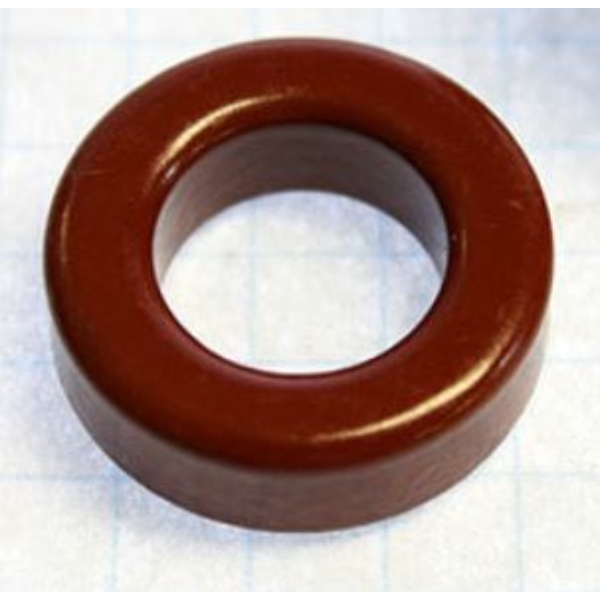

AMIDON T94-2 IRON POWDER TORROID

1.22 EUR (1.02 EUR + VAT)
Qty:pieces
Model: T94-2
Availability: On stock
1.22 EUR (1.02 EUR + VAT)
Qty:pieces

Description

Physical Dimensions



OD = .942 in / 23.9 mm +/- 0.02 in
ID = .560 in / 14.2 mm +/- 0.02 in
Ht = .312 in / 7.92 mm +/- 0.025 in
 AL=8.4 +/- 5 %      uH=(AL*Turns2)/1000
Temperature Stability (ppm /°C) = 95
Color Code = Red / Clear
Optimum Resonant Circuit Range
for highest Q and lowest core loss
250 KHz - 10 MHz
