Anico H1000-A (LMR-400) 50 OHM COAX CABLE

Click to enlarge
Price:
2.03 EUR
1.62 EUR (1.35 EUR + VAT)
Discount: 20%
Sale duration:
27/08/2018 - 31/03/2019
Model: H1000A
Availability: On stock
Average Rating: 5 out of 5 Stars!
Manufacturer:
Qty:meter

Description

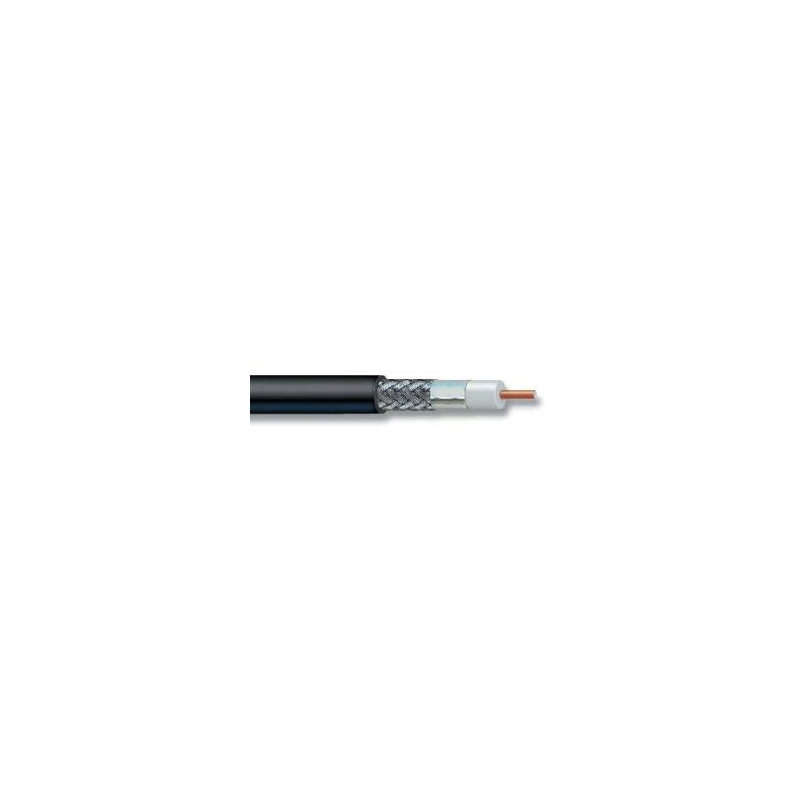

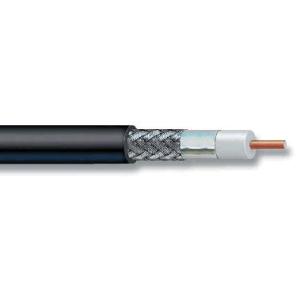

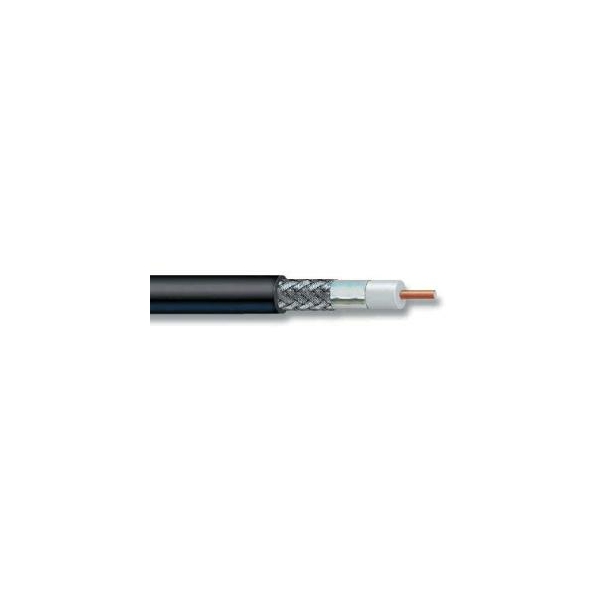

Anico H1000A (LMR400 compatible) 50 ohm low loss semi flexible coax cable. Price EUR/meter

Inner conductor: Copper Clad Aluminium, diameter: 2.74mm
Dielectric core: Physical Gas-injected Foam PE diameter: 7.24mm
Foil(shield) Aluminum/PET
Braid(shield) Tinned Copper
Coverage % 95
JACKET PVC, Diameter: 10.29mm, Color Black

Mean characteristic impedance: 50 Ω
DC loop resistance: ≤ 11 Ω/km
DC resistance inner conductor: ≤ 3.2 Ω/km
DC resistance outer conductor: ≤ 7.9 Ω/km
Capacitance: 80 pF/m
Velocity ratio: 0.83
Screening efficiency 30-1000 MHz: ≥ 85 dB
Return loss at 5-470 MHz: ≥ 22 dB*
470-862 MHz: ≥ 16 dB*
* max. peak values 4 dB lower than specified

Attenuation at Nominal
10 MHz: 1.2 dB/100m
50 MHz: 2.7 dB/100m
100 MHz: 3.9 dB/100m
230 MHz: 6.1 dB/100m
300 MHz: 7.0 dB/100m
400 MHz: 8.3 dB/100m
470 MHz: 9.1 dB/100m
860 MHz: 12.8 dB/100m
1000 MHz: 13.9 dB/100m
1350 MHz: 16.6 dB/100m
1750 MHz: 19.4 dB/100m
2050 MHz: 21.3 dB/100m
2400 MHz: 23.6 dB/100m

Price EUR/meter!
