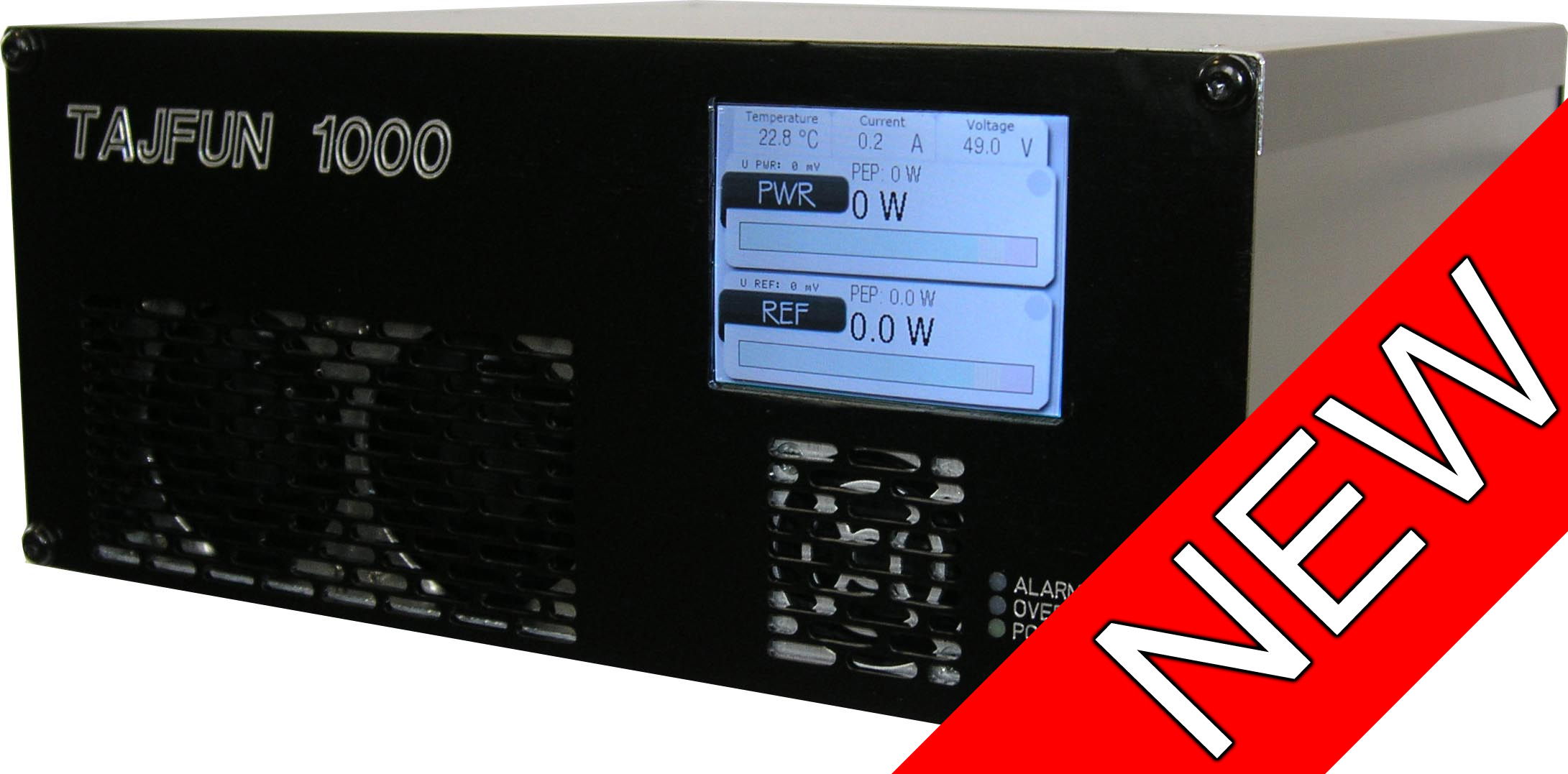

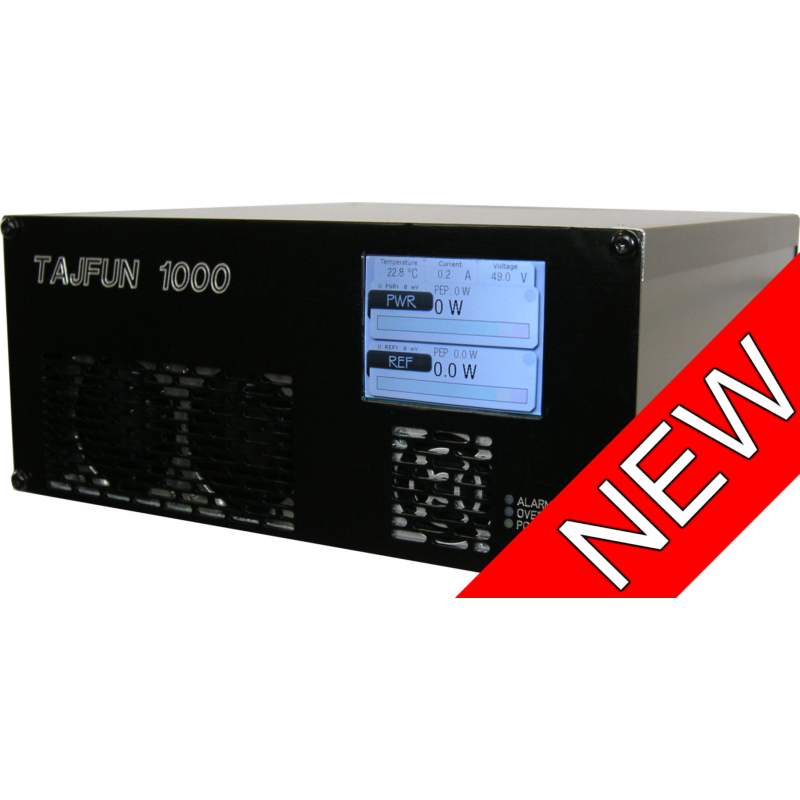

BIGTAJFUN 1000 1KW 432MHZ LDMOS LINEAR PA LCD
BIGTAJFUNDescription
BIGTAJFUN 1000 1KW 432HZ is small, lightweight but robus LDMOS Power Amplifier.
- Freqency Coverage: 430-434 MHz
- Operating Mode: FM, CW, SSB, DIGI
- Output Power: 1000W CW, 800W SSB, 700W FM and DIGI modes
- Input Power: 18-22W, install 3dB attenuator (option 6dB)
- Power supply inside: 48VDC / 1800W
- Suppression of harmonics: >= 70dBc
- Low Pass Filter
- Working temperature: 0-45 °C, Max. humidity 90%
- Protection from: PWR, SWR, Tmax, Imax, Umax/Umin
- Control / Display: color TFT display
- Measurment and display:
- Current
- Voltage
- Power
- Reflected power
- Peak power
- Temperature
- USB - configuration, service
- LAN - remote (optional)
- Power supply: 195-277VAC, 45-66Hz
- Dimension: 266x105x294mm
- Coaxial Relay: CX600NC - CX140D
- Weight: 6,2kg
