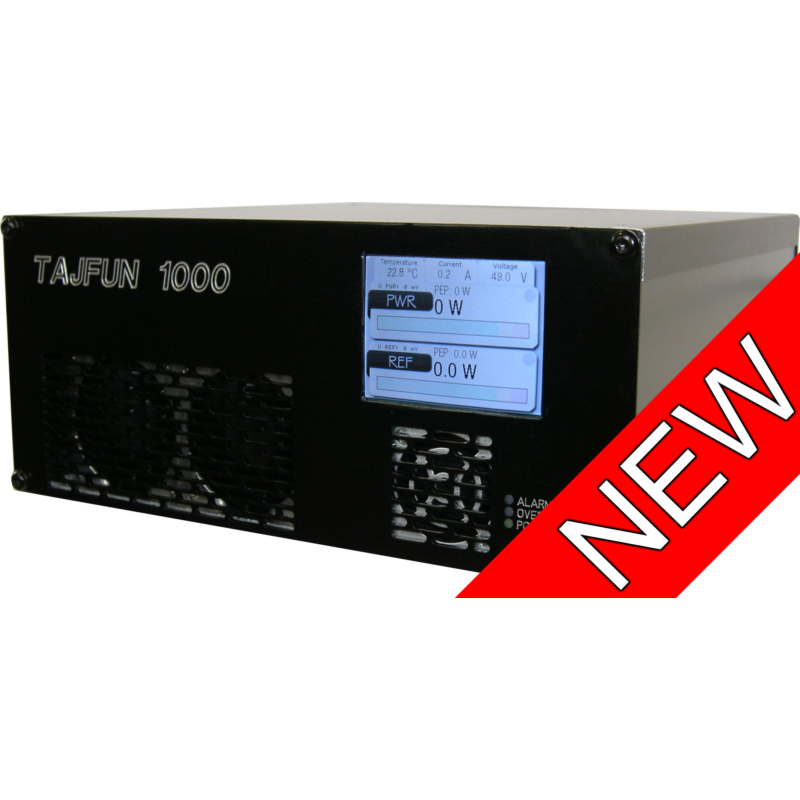

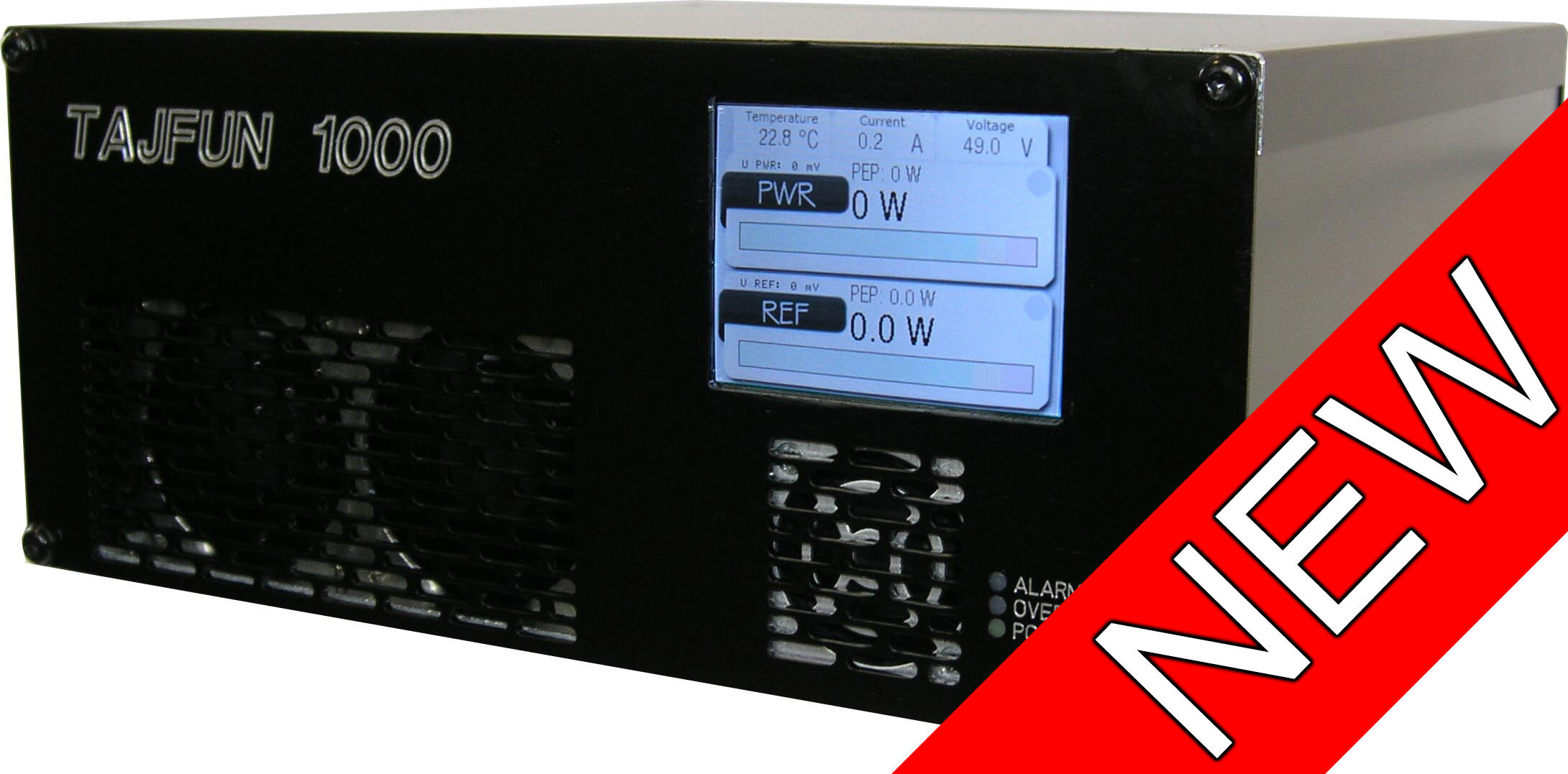

BIGTAJFUN 1000 1KW 50/70MHZ is small, lightweight but robus LDMOS Power Amplifier.

Freqency Coverage: 50 - 70 MHz
Operating Mode: FM, CW, SSB, DIGI
Output Power: 1000W - 50MHz, 700W - 70MHz
Input Power: 8-9W (inside 3dB hybrid attenuator)
Power supply inside: 48VDC / 1800W
Suppression of harmonics: <= 75dBc
Working temperature: 0-45 °C, Max. humidity 90%
Protection from: PWR, SWR, Tmax, Imax, Umax/Umin
Control / Display: color TFT display
Measurment and display:
Current
Voltage
Power
Reflected power
Peak power
Temperature
USB - configuration, service
LAN - remote (optional)
Power supply: 195-277VAC, 45-66Hz
Dimension: 266x105x294mm
Coaxial Relay: CX600NC - CX140D
Weight: 6,2kg
