FUSE 20A

0.05 EUR (0.04 EUR + VAT)

Qty:pieces

#fuse

Model:	05338
Availability:	On stock
Not Rated
Add to my wishlist

For EU private customers:

VAT is recalculated to your local VAT, when you add your country through checkout menu.

Companies with EU VAT number:

We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!

For NON EU customers:

We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.

0.05 EUR (0.04 EUR + VAT)

Qty:pieces

Add to Cart

Description
Reviews

Description

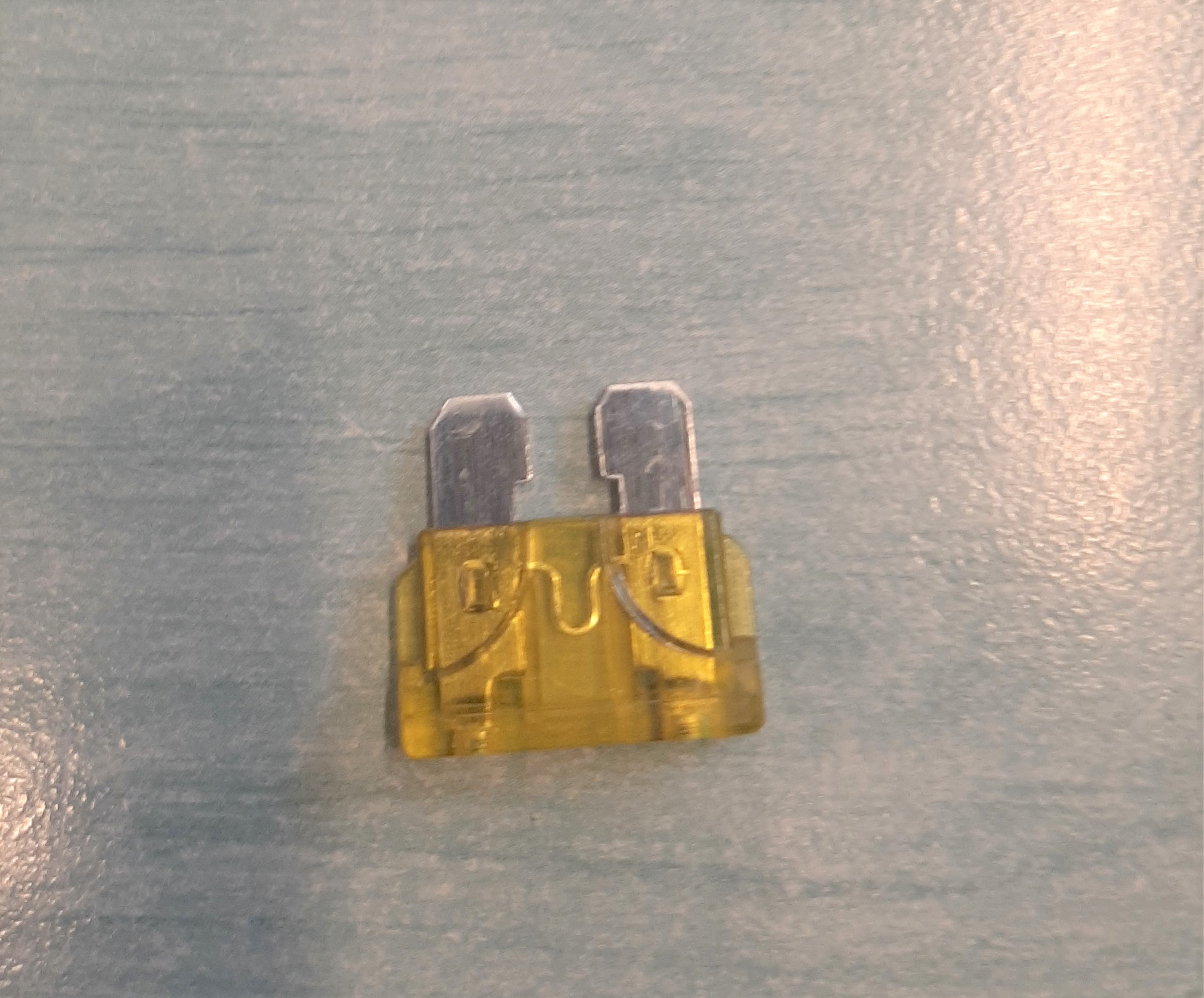

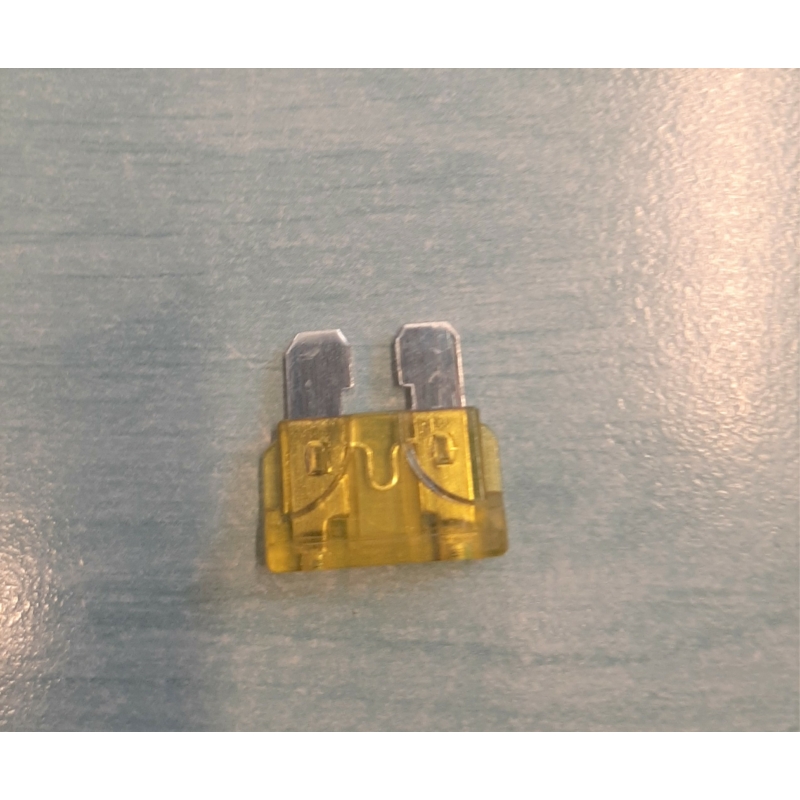

Fuse, 20A.

Developed by Littelfuse for the automotive industry, the ATOF® fuse has become the original equipment circuit protection standard for foreign and domestic automobiles and trucks.

Readily identifiable and easily replaced.
This fuse can be specified for a variety of low voltage electronic applications.

SPECIFICATIONS:

Complies with	ISO 8820 - 3; UL 248 Special Purpose Fuse
Voltage Rating	32 VDC
Interrupting Rating	1000A @ 32 VDC
Operating Temperature Range	-40˚C to +105˚C
Terminals	Sn plated
Typ. Voltage Drop	98 mV
Cold Resistance	3.38 mΩ
I²t	520 A²s
