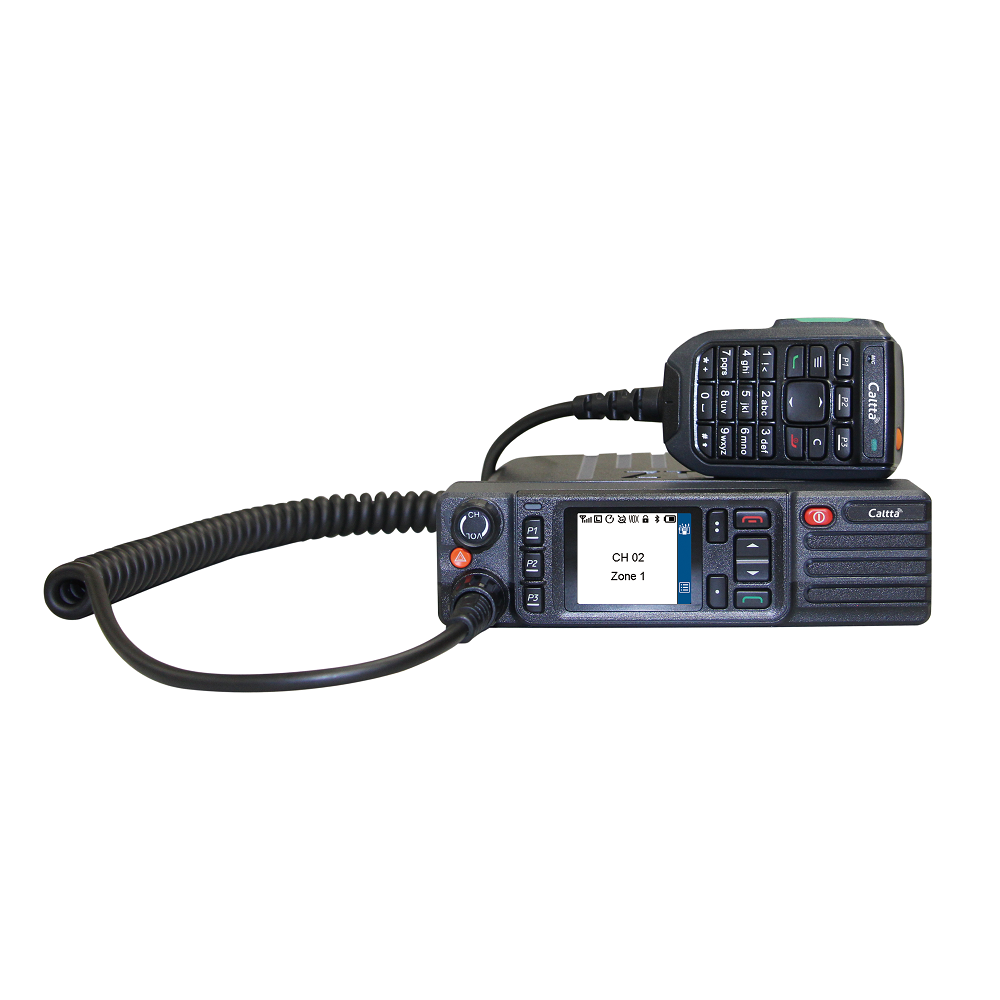

Caltta PM790 DMR mobile radio 2.0” display, GPS & Bluetooth
Caltta’s PM790 DMR mobile transceiver provides high quality voice service, and strictly meets the requirements of critical communication, and responses the call of professional users anywhere and anytime. DMR’s dual slot provides double channel capacity, thus easing the shortage of frequency.
Caltta's DMR system is based on the globally recognised ETSI DMR standard, which is also used by Motorola, Hytera etc. Thus, Caltta PM series DMR transceivers are compatible with Motorola DMR radios, conventional Motorola DMR systems (1 site systems), and other DMR radios that are using ETSI DMR standard.
Most Caltta models have basic encryption, which can be upgraded to AES256 encryption with licenses. Caltta's own dispatch software can also be integrated into the system.
Features of Caltta PM790 DMR mobile radio:
Compatible With Both Digital and Analog Standards
Can be used under the user’s existing analog network, and has better applicability, which supports smooth upgrade of network.
Loud And Clear Sound
Through carefully optimized audio design combined with excellent audio encoder, it provides loud and clear sound.
Excellent Man-Machine Interface Design
Based on professional user habits, deeply customized MMI is developed. It helps the professional users to operate radio more comfortably.
Besides voice and data services, it provides various customized services to help professional users to handle different types of tasks.
Various External Interfaces
Using external interfaces, users are able to avail many different functions. It provides audio port, serial port, ignition detection, local voice broadcast, GPIO and so on.
Rich AT instructions
Using AT instructions, users can control and integrate the mobile radio.
The digital standard and deeply customized OS provides high safety. Professional users are able to use hardware encryption card to encrypt voice and achieve higher safety performance.
Reliable Quality - IP54 standard
Meets IP54 standard, and is suitable for outdoor work. Shock, vibration, solar radiation and other indexes meet Mil-STD 810 G. It qualifies for all kinds of severe working environment.
In DMO, or simplex mode, the radio communicates without a repeater. In this case it is also possible to share the GPS position of the users, but without the Dispatcher program. Both the PM790 and PH690 have an optional feature to send their position to each other during DMR transmission.In this case, the GPS coordinates of the transmitting radio are displayed on the display of the receiving radio, or a bearing and distance data is displayed, depending on the programmed configuration. Within a range of 3500 meters, the radios will display fairly accurate data.
This feature can be particularly useful in areas without infrastructure, especially for search and rescue units or users engaged in similar activities.
SFR is a DMR mode feature that can be optionally enabled in second generation Caltta devices. The idea is that one of the radios operating on the same frequency will function as a repeater in SFR mode. In Tier I, it receives DMR audio and data traffic, and in Tier II, it transmits it to the other radios at 90ms intervals. Currently, the second generation Caltta PH690 and PM790 DMR transceivers are capable of this function. It is important to note that once the SFR function is activated, our transceivers can still be used as client radios. So you can still use it as a full-fledged transceiver in SFR mode.
The SFR function allows you to increase the range without installing a normal duplex (dual frequency) repeater. Of course, this is not a replacement for a professional repeater, but it can cover a larger area if you are far apart from your colleagues. It could be useful, for example, if you are travelling in a convoy of vehicles and the SFR radio is in the middle of the convoy. Or if the SFR radio is at an elevated point.
Devices programmed for Caltta SFR repeater mode can also work with Caltta's own devices and any DMR transceiver. Currently, only the Caltta PH690 v2 and PM790 are capable of frequency transfer, i.e. SFR licensing. Caltta”s PH600 and PH660 models can only be used as client radios and cannot themselves be used as repeaters. Other brands may have different SFR settings or operation, so please contact Anico Ltd. technicians for testing before purchase.
With 3 years manufacturer's warranty.
Caltta PM790 DMR mobile transceiver box includes:
- PM790 moile radio with 2.0” display, GPS, Bluetooth compatibility, optional UHF 400-470 MHz or VHF 136-174 MHz frequency
- handheld microphone
- GPS antenna
- power cable
Caltta PM790 - a wealth of possibilities
Three useful extra features for Caltta transceivers
Do you use a walkie talkie in the snow or cold? Watch out for these!
IP Protection of Transceivers
|Digital Protocol||ETSI TS102 361-1,-2,-3,-4|
|Frequency||optional UHF 400-470 MHz or VHF 136-174 MHz frequency|
|Frequency Stability||+/- 0.5ppm|
|Operating Voltage||DC13.6V +/- 15%|
|Size ( H×W×D )||49×178×156mm|
|Screen||2.0" TFT LCD, 220×176, 4 Lines Text|
|Encryption||Support SW and HW Encryption(Optional)|
|Low Power Output||1W-25W ( UHF3 ) / 5-25W( UHF1 / VHF )|
|High Power Output||5-45W ( UHF1/UHF3 ) / 5-50W ( VHF )|
|FM Modulation||12.5KHz:11K0F3E / 20KHz:14K0F3E / 25KHz:16K0F3E|
|4FSK Digital Modulation||12.5KHz Data Only:7K60F1D&7K60FXD, 12.5KHz Voice Only:7K60F1E&7K60FXE, 12.5KHz Voice and Data:7K60F1W|
|Conducted/Radiated Emission||-36dBm ≤1GHz ; -30dBm >1GHz|
|Adjacent Channel Power||60 dB @ 12.5KHz / 70 dB @ 20 / 25KHz|
|Sensitivity(Analog)||0.3uV (12dB SINAD )|
|Sensitivity(Digital)||0.3uV ( 5% BER )|
|Adjacent Channel Selectivity||60 dB @ 12.5KHz / 70 dB @ 20 / 25KHz ( TIA603A ) -1T 50 dB @ 12.5KHz / 75 dB @ 20 / 25KHz ( TIA603D ) -2T 60 dB @ 12.5KHz / 70 dB @ 20 / 25KHz ( ETSI )|
|Intermodulation||75 dB ( TIA603D ) 70 dB ( ETSI )|
|Spurious Rejection||75 dB ( TIA603D ) 70 dB ( ETSI )|
|Hum and Noise||-40 dB @ 12.5KHz / -43dB @ 20KHz / -45 dB @ 25KHz|
|Rated Audio Power||3W ( Internal )|
|Max Audio Power||6W ( Internal )|
|Audio Distortion @ Rated Audio||≤3% ( Typical )|
|Dust and Water Resistance||IP54|
