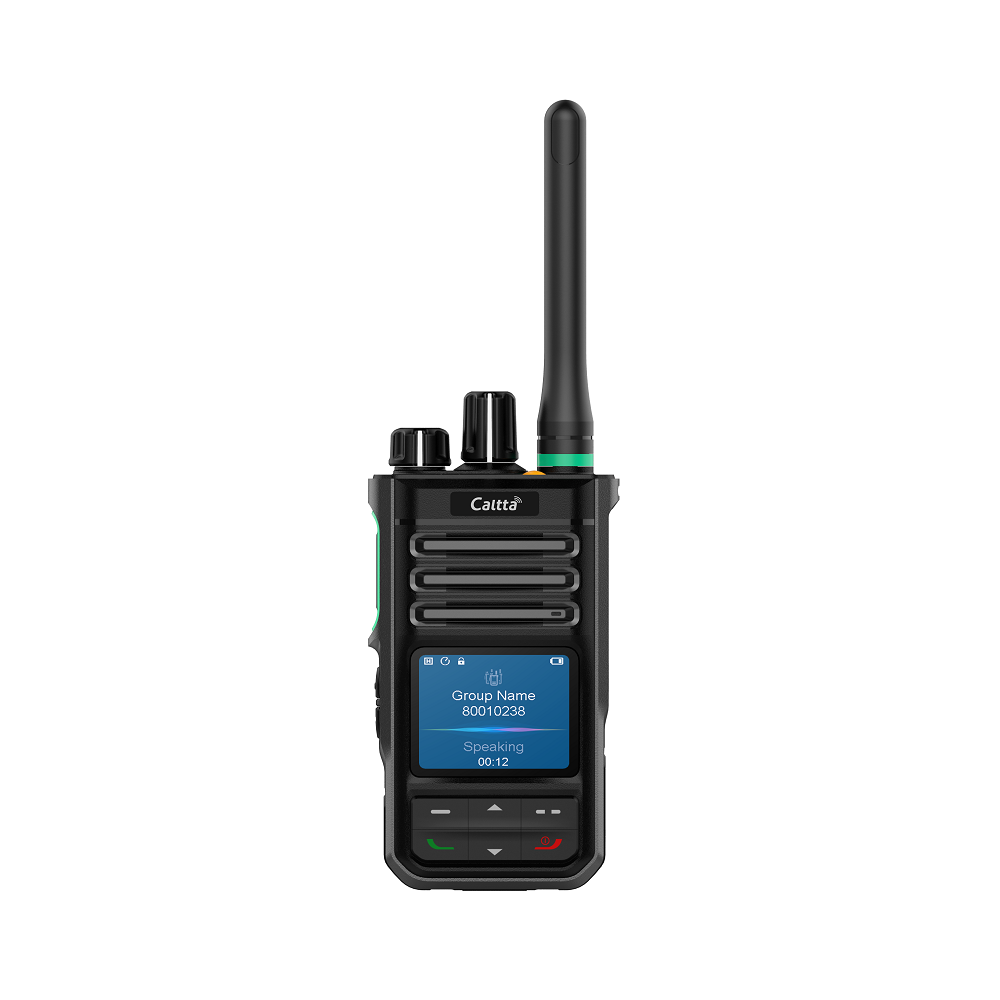

Caltta PH660 DMR analog / digital handheld radio with 1.74” display, Bluetooth & GPS
Caltta PH660 DMR transceiver with 1,74” display, Bluetooth and GPS option integrate professional appearance layout, perfect PTT function design and professional manufacturing technology. It makes the user's work easier, the organization’s operation more efficient.
Caltta's DMR system is based on the globally recognised ETSI DMR standard, which is also used by Motorola, Hytera etc. Thus, Caltta PH series DMR transceivers are compatible with Motorola DMR radios, conventional Motorola DMR systems (1 site systems), and other DMR radios that are using ETSI DMR standard.
Most Caltta models have basic encryption, which can be upgraded to AES256 encryption with licenses. The PH600, PH660, PH690 models include GPS and Bluetooth, while the PH600L is a basic model without GPS and Bluetooth. Caltta's own dispatch software can also be integrated into the system.
Features of Caltta PH660 DMR transceiver:
Professional appearance and light weight
The height of Caltta PH660 DMR transceiver is only 100mm, which makes it very cute. Based on dualcolored shell design and classic layout, Caltta PH660 DMR transceiver looks compact but full of strength. The total weight is less than 290g, and user can carry it easily.
Friendly user interface and easy to use
Caltta PH660 DMR transceiver has a classic compact radio layout, so the user can operate it skillfully. With voice prompt, the user can grasp status and informations easily.
Long battery life makes work flexible
Equipped with a 2600mAh standard battery, Caltta PH660 DMR transceiver can work for 20 hours under a 5-5-90 duty cycle in DMR conventional mode. A long battery life can help user to focus on their essential job.
Loud and clear voice quality
With a 36mm front speaker and high efficiency amplifier, Caltta PH660 DMR transceiver can provide loud and clear voice, which is more than 90dB, and can help user capture every key voice command in the noisy environment.
Rich features, facilitate daily work
In addition to basic DMR voice and data services, Caltta PH660 DMR transceiver can also support many optional features, such as repeater compatibility, dispatch program compatibility, GPS, voice recording, advanced encryption, ECS (Enhanced Conventional System), optional board and so on.
Solid and reliable quality - with IP68 protection
Caltta PH660 DMR transceiver meets IP68 and Mil-STD 810G certifications. It can be used in tough and harsh environments as a professional and reliable communication tool.
Warranty
With 3 years manufacturer's warranty.
Caltta PH660 DMR transceiver function list:
- Voice Services: Private Call, Group Call and All Call, Call Alert, Priority Interrupt, Background Call
- Working Mode: Digital Conventional, Analog Conventional, ECS (Enhanced Conventional System)
- Bluetooth 2.1+EDR/4.0
- GPS/BDS Positoning System
- Vibration
- Real Time Clock
- Open API
- Data Services: Text Message, Status Message, Location
- Supplementary Services: Roaming, Programmable Buttons, One Click Upgrade.
- Security Protection: Emergency Alarm, Man Down, Lone Worker, Registration Authentication, End-to-End Encryption, Remote Stun/Revive
Caltta PH660 DMR transceiver box includes:
- DMR digital/analog PH660 with Bluetooth and GPS, 1.74” display and limited kepad, UHF 400-470MHz frequency
- antenna
- belt clip
- desktop charger
- EU power adaptor
- 2600 mAh LI-ION battery
Caltta PH660 DMR transceiver optional accessories:
- earsets
- bluetooth headset
- bluetooth microphone
- bluetooth PTT
- 8-way charger
Caltta PH660 DMR transceiver specifications:
GENERAL | |
Digital Protocol | ETSI TS 102 361-1,-2,-3 |
Frequency | UHF1:400-470MHz |
Channel Capacity | 1024 |
Zone Capacity | 64 |
Channel Spacing | 12.5kHz/20KHz/25KHz |
Frequency Stability | +/-0.5ppm |
Operating Voltage | 7.4V |
Battery Capacity | 2600mAh |
Battery Life(5 | 5:90):16 hours (Analog) / 20 hours (Digital) |
Size (H×W×D) | 100×54.5×36.5mm (Without Antenna) |
Weight | About 290g |
Screen | 1.74” Transflective LCD, 240×180 |
Vocoder | AMBE++ |
Bluetooth | BT2.1+EDR / 4.0 |
Location | GPS / Glonass |
Man down / Vibration | Support |
Real-time Clock | Support |
Encryption Support | SW and HW Encryption (Optional) |
TRANSMITTER | |
Power Output | 1W/4W (UHF1) |
FM Modulation | 12.5KHz:11K0F3E / 20KHz:14K0F3E / 25KHz:16K0F3E |
4FSK Digital Modulation | 12.5KHz Data Only 7K60F1D&7K60FXD, 12.5KHz Voice Only 7K60F1E&7K60FXE ; 12.5KHz, Voice And Data 7K60F1W |
Conducted/Radiated Emission | -36dBm ≤1GHz ; -30dBm >1GHz |
Modulation Limiting | +/-2.5KHz @12.5KHz /+/-4KHz; @20KHz /+/-5.0KHz @25KHz |
FM Hum and Noise | -40 dB@12.5KHz /-43dB@20KHz /-45 dB@25KHz |
Adjacent Channel Power | 60 dB@12.5KHz /70 dB @20/25KHz |
Audio Distortion @ Rated Audio | ≤3% (Typical) |
Audio Response | +1~-3dB (TIA603D) |
RECEIVER | |
Sensitivity(Analog) | 0.22uV(12dB SINAD) |
Sensitivity(Digital) | 0.22uV (5% BER) |
Adjacent Channel Selectivity | 60 dB@12.5KHz/70 dB@20/25KHz (TIA603A) -1T, 45dB@12.5KHz /70 dB@20/25KHz (TIA603D) -2T, 60dB@12.5KHz /70 dB@20/25KHz ( ETSI ) |
Intermodulation | 70 dB (TIA603D) / 65 dB (ETSI) |
Spurious Rejection | 70 dB (TIA603D) / 70 dB (ETSI) |
Blocking or Desensitization | 80dB (TIA603D) / 84dB (ETSI) |
Co-channel Rejection | -12~0 dB @12.5KHz/-8~0 dB @20/25KHz |
Hum and Noise | -40 dB@12.5KHz /-43 dB@20KHz /-45 dB@25KHz |
Rated Audio Power | 0.5W |
Max Audio Power | 2.0W |
Audio Distortion @ Rated Audio | ≤3% (Typical) |
Audio Response | +1~-3dB (TIA603D) |
Conducted Spurious Emission | -57 dBm (TIA603D) |
GPS | |
Accuracy specs are for long-term tracking (95th percentile values>5satellites visible at nominal -130 dBm signal strength) | |
TTFF (Time To First Fix) | Cold Start:<60s; Hot Start:<10s |
Horizontal Accuracy | <10m |
ENVIRONMENTAL | |
Operating Temperature | -30°C ~ +60°C |
Storage Temperature | -40°C ~ +85°C |
ESD | IEC 61000-4-2 (level 4) +/-8kV (Contact) +/-15kV(Air) |
Dust and Water Resistance | IP68 |
Reliability | MIL-STD-810 G |
