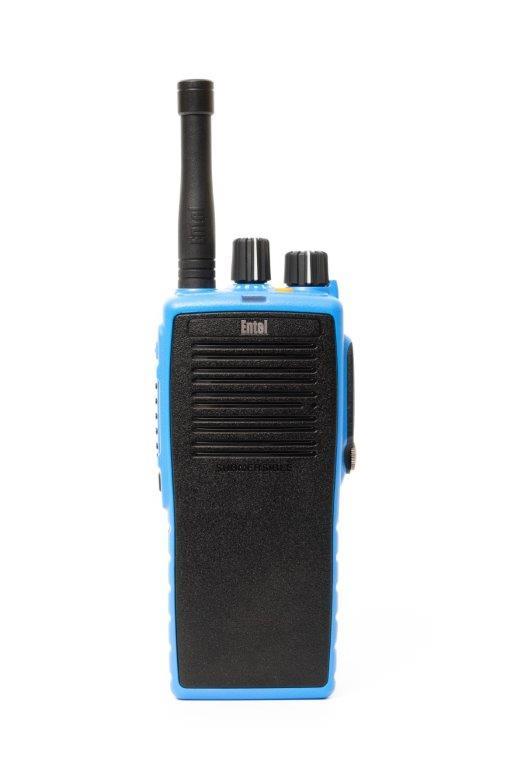

Entel DT982 ATEX, UHF 400-470 MHz frequency, 16 channel, EU modell, none display, 1W Tier II analog/digital transceiver.
The ultra durable Entel DT982 is the latest addition to Entel’s DTEx series range of Intrinsically Safe radios. The rugged Entel DTEx delivers exceptionally loud audio coupled with outstanding audio clarity, plus the ergonomic controls are specifically designed for gloved hand use. By combining the latest DMR digital technology and highest ATEX gas group ratings*, the Entel DTEx series delivers best in class range, safety and reliability.
Exceeding MIL-STD-810 and a market leading IP68 rating (2-meters 4-hours) the fully submersible DTEx can be depended on to withstand the most extreme and hostile of environments.
Entel DT982 ATEX transceiver key features:
- The most stringent ATEX ratings as per EU Directive 94/9/EC
- IP68 submersible
- Digital and analogue modes
- Outstanding range and performance
- Crystal clear audio
- Simple end user programming app
- Extensive range of approved accessories
- Supports 3rd party BA kit
- Audio accessory optimisation
The fully featured and versatile Entel DT982 radios can be configured for basic push-to-talk (PTT) operation or the more advanced features that you would expect of a high tier two-way radio.
Using the latest noise reduction technology, our DTEx portables deliver loud and crisp audio no matter what operational environment you are in. The full DTEx accessory range incorporates a robust locking plug and high-grade cable, whilst intelligent speech tailoring technology automatically detects the type of accessory connected and optimizes the audio accordingly to deliver the very best performance.
Safety Features You Can Rely On
Entel DT982 radios support optional digital mode Lone-Worker, Man-Down function and Emergency Button with call interrupt as dealer programmable features. These three levels of safety ensure an alarm is raised, even if the channel is already busy.
IP68 2 Metres, 4 Hours Submersible
The DTEx Series offers the highest submersibility rating of any manufacturer - IP68. Ensuring protection against corrosion and likely hazards encountered in wet environments, these radios are constructed to withstand total immersion in water to a depth of 2 metres for 4 hours.
Simple End User Programming
With our unique and simple-to-use PC app included free of charge with the purchase of your Entel DT982 radio, there is no longer any need to return a handset to your dealer to reprogram or update. With the user-friendly app you can simply transfer programming data, future-proofing software updates or add new features to your DTEx radios.
High Grade Accessory Interface
The rugged, multi-pin interface and Micro-USB socket are both submersible and gold-plated to minimise any risk of damage and protect against corrosion. To ensure the integrity of IS protection levels and safeguard against noncompliant accessories being used, any accessory connected to the handset automatically undergoes a validation process. All DTEx accessories incorporate a robust locking connector to further safeguard the user.
Migrate to Digital Your Way
DTEx radios utilise both analogue and DMR digital technologies. Supporting both technologies ensures backwards compatibility with existing analogue radio systems and a simple migration path to the many benefits of digital communications.
Intelligent Batteries, Audio Accessories & BA Support
Entel’s intelligent batteries and accessories are designed to deliver optimum performance and safety. In digital mode the Lithium-ion battery endurance on DT900 radios is more than 18.5 hours from a single charge! From simple earpiece to bone conductive options for extremely high noise environments, we offer a vast range of Entel-original audio accessories. Entel’s intelligent speech tailoring technology optimises audio to match the connected accessory; ensuring the very best clarity, volume and natural sounding audio.
*Intrinsically Safe ATEX Approved IIC - The DT900 series of ATEX certified portables meet IIC T4 - the most stringent ATEX ratings as per EU Directive 94/9/EC.
Entel DT982 ATEX radio specifications:
|Battery DT800/DT900 CNB950EV2||1800mAh Lithium-Ion|
|Overall Dimensions (HxWxD)||138mm x 60mm x 38mm (with CNB950EV2)|
|Frequency Stability||± 1.5ppm|
|Frequency Range||UHF 400-470 MHz|
|Number of Channels||16 (non-display)|
|Analogue Channel Spacing||12.5/20/25KHz|
|Digital Channel Spacing||12.5KHz|
|Programmable Buttons||3 (non-display)|
|Battery Endurance (5/5/90 Duty Cycle @ 1W)||Analogue 14.5 hours Digital 18.5 hours|
|Sensitivity (Typical)||Analogue -121dBm (0.2uV) for 12dB SINAD Digital -121dBm (0.2uV) for 5% BER|
|Intermodulation Response Rejection (ETSI)||> 70dB|
|Adjacent Channel Selectivity (ETSI)||> 70dB(12.5KHz) 60dB(25KHz)|
|Spurious Response Rejection (ETSI)||> 70dB|
|Audio Output Power||2-Watts|
|Audio Distortion (Typical)||3%|
|Conducted Spurious Emission (ETSI)||> -57dBm|
|Output Power||ATEX IIC 1 Watt (100mW versions available)|
|Modulation Limiting||±2.5kHz @ 12.5kHz ±4.0kHz @ 20kHz ±5.0kHz @ 25kHz|
|Conducted / Radiated Spurious Emissions||Better than -36dBm|
|Adjacent Channel Power||Better than 60dB|
|Audio Distortion (Typical)||3%|
|Operating Temperature||-20°C to +55°C|
|Storage Temperature||-40°C to +85°C|
|Thermal Shock, Humidity Shock & Vibration, Packing Test, Drop Test||MIL-STD-810 C/D/E/F/G|
|Dust & Liquid Ingress||IP68 (2m 4h Submersible)|
|Approvals||Analogue mode RF EN 300 086 v2.1.2 Digital mode RF EN 300 113 v2.2.1 EMC EN 301 489-1 v2.2.0 & EN 301 489-5 v2.2.0 Safety (LVD) EN 60950-1:2006/ A11:2009/A1:2010/A12:2011/A2:2013 SAR EN 50566:2017, EN62311:2008 & EN 62209-2:2010 EN 300 296 v2.1.1|
|Ex Protection||ATEX II 2G Ex ib IIA T4 Gb ATEX II 2G Ex ib IIC T4 Gb Ex ib IIA T4 Gb|
