Expert Electronics
Nyíregyháza (HU): Back Order
Budapest (HU): Back Order
For EU private customers:
VAT is recalculated to your local VAT, when you add your country through checkout menu.
Companies with EU VAT number:
We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!
For NON EU customers:
We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.
Buy Now Pay Later
Buy now and pay in 30 days with PastPay! For corporate clients only, in certain EU countries.
379.12 EUR (318.59 EUR + VAT)

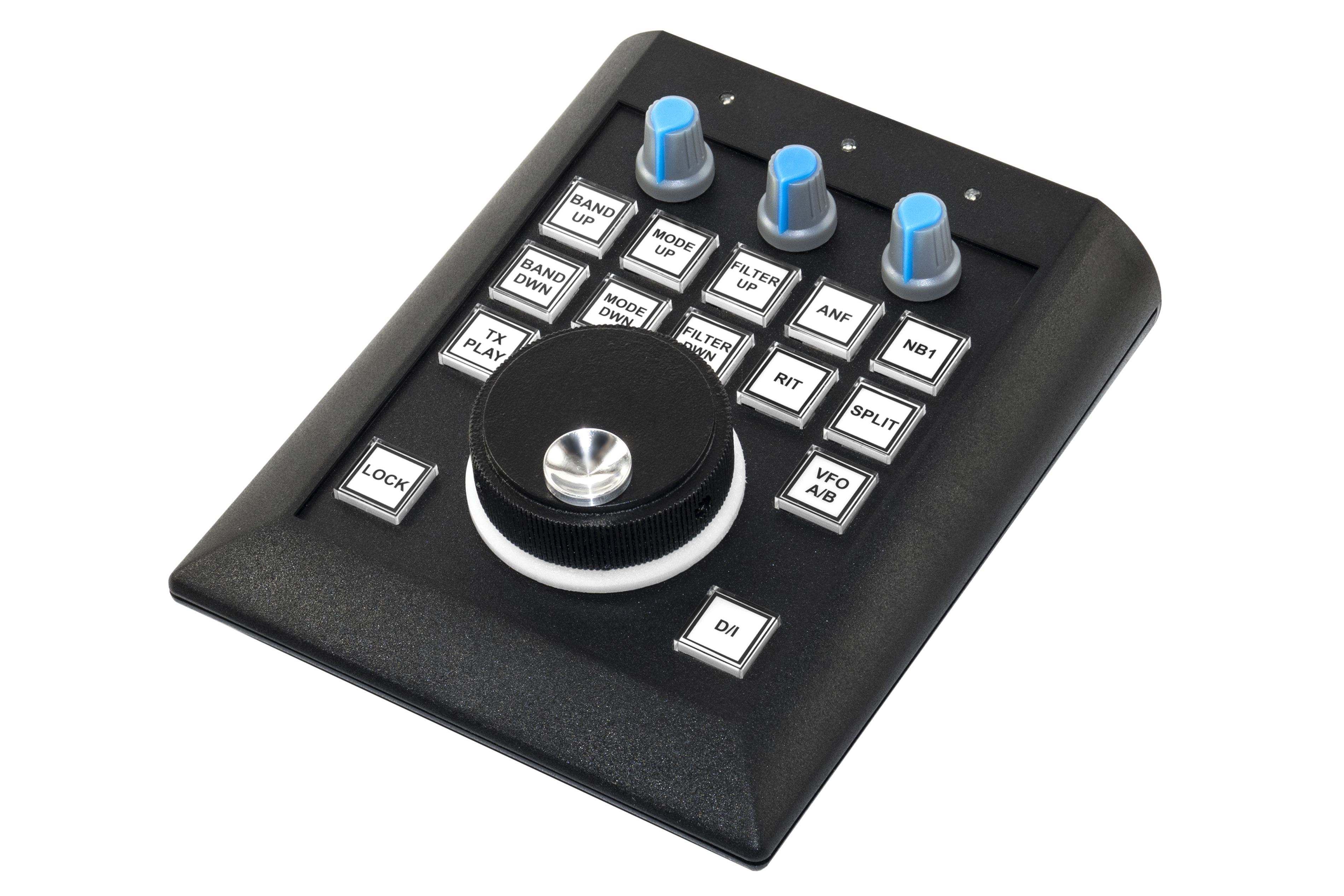

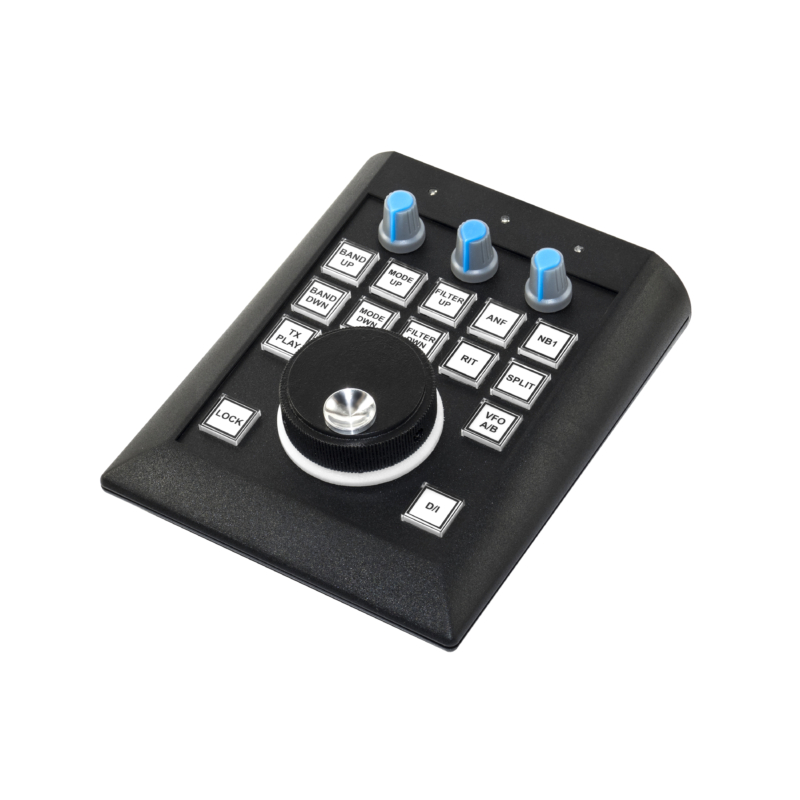

Expert Electronics E-Coder panel was designed to control SDR-devices. It has a wide range of functionality, which makes it a perfect tool for contests. In the Panel menu, you can see the settings of the E-Coder control panel. In the drop-down Device menu, you can select the type of the connected control panel. In the meantime, only one type is available - E-Coder. Note! If one E-Coder panel is connected to the transceiver, in the Panel menu displayed one E-Coder 1 tab, if several E-Coder panels are connected to the transceiver, in the Panel menu displayed a several tabs E-Coder 1, E-Coder 2 etc. with identical settings for each panel. Resolution 256 ppr.

The following functions may be assigned to the E-Coder panel buttons:

  • Unused – button is unused.


  • AGC Up/Down – AGC type switching
  • Band Up/Down – band switching
  • Filter Up/Down – receiver's filter switching
  • Mode Up/Down – mode switching
  • MOX – enable/disable manually operated transmit mode
  • PA – enable/disable power amplifier
  • Preamp Up/Down – preamp or attenuator level switching
  • Power ON/OFF – transceiver's power on/off
  • RX ANT - enable/disable receive antenna
  • Step Up/Down – change the tuning step
  • Tone – enable/disable tone signal in TX mode
  • WF - enable/disable Wide Filter. Filter for all Nyquist zone. If in the Device menu settings, you set Auto enable checkbox, then you don't need this function on the panel
  • Zoom In/Out – spectrum zoom modes switching


  • A>B - assign the frequency from heterodyne VFO A to heterodyne VFO B
  • B>A - assign the frequency from heterodyne VFO B to heterodyne VFO A
  • B<>A - frequency exchange between VFO A and VFO B
  • Change VFO A/VFO B – switching between VFO A and VFO B
  • IF as RIT – tune the RIT offset by moving the filter over the panorama
  • LOCK - lock the frequency tuning
  • RX2 On/Off - enable/disable RX2
  • RIT On/Off – enable/disable RIT offset
  • RIT Reset – reset RIT offset to 0
  • Sub RX On/Off - enable/disable SubRX
  • Split – enable/disable Split mode
  • Switch DDS/IF – tuning the frequency by moving the filter over the panorama, in other words changing the digital IF, or when filter stands still and spectrum moves, this is the central frequency tuning
  • Switch Receiver – switching between software RX1 and RX2. The main knob will tune the frequency of one of the receivers
  • XIT On/Off – enable/disable XIT offset
  • XIT Reset - reset XIT offset to 0

While you operate both RX1 and RX2, usually you need to listen to either only one of them or both of them, but in different channels (left / right). To do that we added special functions to the E-Coder panel, which set the mixer for both RXs


  • Listen both RX1, RX2 – default settings, both RXs have equal volume in both channels
  • Listen RX1 only – listen to the RX1 in both channels
  • Listen RX2 only - listen to the RX2 in both channels
  • Listen RX1 in left channel, RX2 in right – listen to the RX1 in the left channel and RX2 in the right channel
  • Listen RX1 in right channel, RX2 in left - listen to the RX1 in the right channel and RX2 in the left channel

Similar settings were added for VFOs:

  • Listen both VFO A/B - default settings, both VFOs have equal volume in both channels
  • Listen VFO A only - listen to the VFO A in both channels
  • Listen VFO B only - listen to the VFO B in both channels
  • Listen VFO A in left channel, VFO B in right - listen to the VFO A in the left channel and VFO B in the right channel
  • Listen VFO A in right channel, VFO B in left - listen to the VFO A in the right channel and VFO B in the left channel
  • Mute – switch off the sound
  • Switch RX and mute former – change the software receiver and mute former one
  • TX/Play – turn to TX and play the signal record in air
  • Voice recording – enable/disable voice recording
  • Volume Up/Down – volume adjustment


  • ANF – enable/disable auto notch filter
  • APF - enable/disable analog pick filter
  • BIN – enable/disable binaural mode
  • NR – enable/disable noise reduction
  • NB1 – enable/disable noise blanker 1
  • NB2 – enable/disable noise blanker 2
  • SQL – enable/disable squelch

The following functions may be assigned on the E-Coder panel knobs:

  • Unused – encoder is unused
  • Volume – volume adjustment
  • Mic Gain – Mic gain adjustment
  • SQL – squelch threshold adjustment
  • Filter Low/High – tuning the frequency of the low/high filter's front
  • Filter Width – adjusting the filter width
  • Filter Shift - shifting the filter's central frequency
  • Drive – adjusting the output power
  • IF – tuning the frequency by moving the filter over the panorama
  • RF Gain – RF Gain control
  • CW Speed – CW Speed control
  • RIT Offset – adjusting the RIT Offset
  • XIT Offset – adjusting the XIT Offset

In the right part of the menu you can see the main panel settings:

  • Enable - enable E-Coder panel control
  • Use IF - frequency tuning by moving the filter over the panorama
  • Use IF as RIT - tuning by IF when the RIT offset is on
  • Use IF as XIT - tuning by IF when the XIT offset is on
  • VFO B - enable sub-receiver
  • Key Led - enable backlit keypad
  • Encoder Led - enable backlit encoder
  • RX1/RX2 menu - switching between RX1 and RX2 receivers, or assign an exact E-Coder panel to your receiver
  • Volume - set the volume change step, per knob's clack
  • Mic Gain - set the Mic gain change step, per knob's clack
  • SQL - set the squelch threshold change step, per knob's clack
  • Filter High - set the filter's high limit change step, per knob's clack
  • Filter Low - set the filter's low limit change step, per knob's clack
  • Filter Width - set the filter's width change step, per knob's clack
  • Filter Shift - set the filter's shift change step, per knob's clack
  • Drive - set the output level power change step, per knob's clack
  • RF Gain - set the RF gain step, per knob's clack

Additional functions:

  • RX1/RX2 tab - COM-port settings tab for rerouting the PTT signal from the panel to the COMport
  • Enable PTT Transfer - rerouting of the PTT signal from the panel to the COM-port. Set the Enable PTT Transfer checkbox to enable rerouting the PTT signal
  • Port name - COM-port number
  • DTR/RTS - select the COM-port line, which is used for transferring the PTT commands. Set one of the DTR/RTS line checkboxes to set it as the control line.
Two types of OS are supported Windows XP, Vista, Windows 7/8/10 (32 and 64 bit); Linux Ubuntu/Kubuntu
Supports PowerSDR software, only with Windows OS Requires E-Coder Pro SW, works with the TS-2000 protocol via CAT-system.
Programmable buttons 14
Programmable encoders (small knobs) 3
Optical encoder (tuning knob) 1
Optical encoder resolution (pulses) 256 PPR
Optical encoder dimensions, mm d 48, metal
USB cable length, m at least 1.2
Optical encoder backlight (on/off) Yes
Programmable buttons backlight (on/off) Yes
Backlight color green


6 rating
Write a review!
Verified purchase
Fantastic Service
Verified purchase
Not essential for your SunSdr, but very easy to use ...Transfor the sun in a conventional TRX with in the past. Comfort and practical...with a lot of quick way that can be programmed..
But beware if you are using Linux...E-coder will be not reconize immediatly, you have to do a few things :
Copy the line
KERNEL=="hidraw*", SUBSYSTEM=="hidraw", MODE="0664", GROUP="plugdev"
save it to file
99-hidraw-permissions.rules (then you must create it)
This file will be located in
restart and enjoy !!

Verified purchase
The encoder works flowlessly as expected. It helps a lot with pileups to chase the right frequency.
Beside the product, anico service is great with fast and fixed price shipping and good communications.
Thank you
Verified purchase
I purchased the EE-Encoder for my SunSDR2 PRO and am very happy to have the feeling of tuning my old transceivers.
Thanks also to ANICO for extremly quick sending the encoder.
Verified purchase
Let's keep it short and sweet.

The E-Controler is one of the most useful additions I have ever bought. In conjunction with my small Expert SDRNano, this is a full RX !
Through the many options of the control buttons, you can program the device wonderfully on itself.
In addition, the VFO runs silky smooth !

Also the company Anico has behaved exemplary in that they shipped really fast. Everything arrived neatly.

Device and company absolutely commendable !
High versatility product. I miss a little bit plus of versatility in software to be used with more programs. Perhaps a bit overprized if compared with the mini version (if it's the same electronics, as I think). Personally I'll prefer a more robust metal enclosure, but it's OK.
