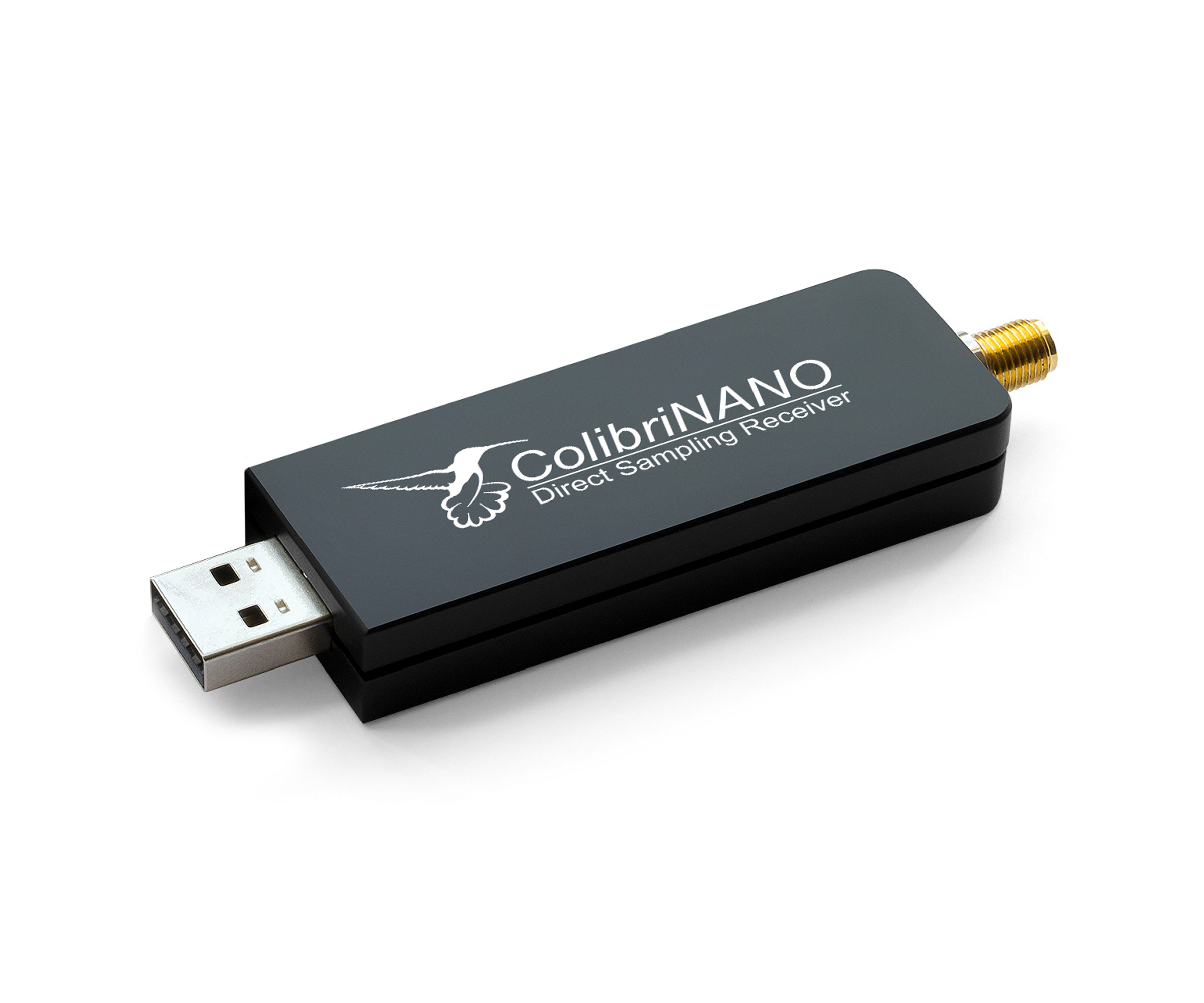

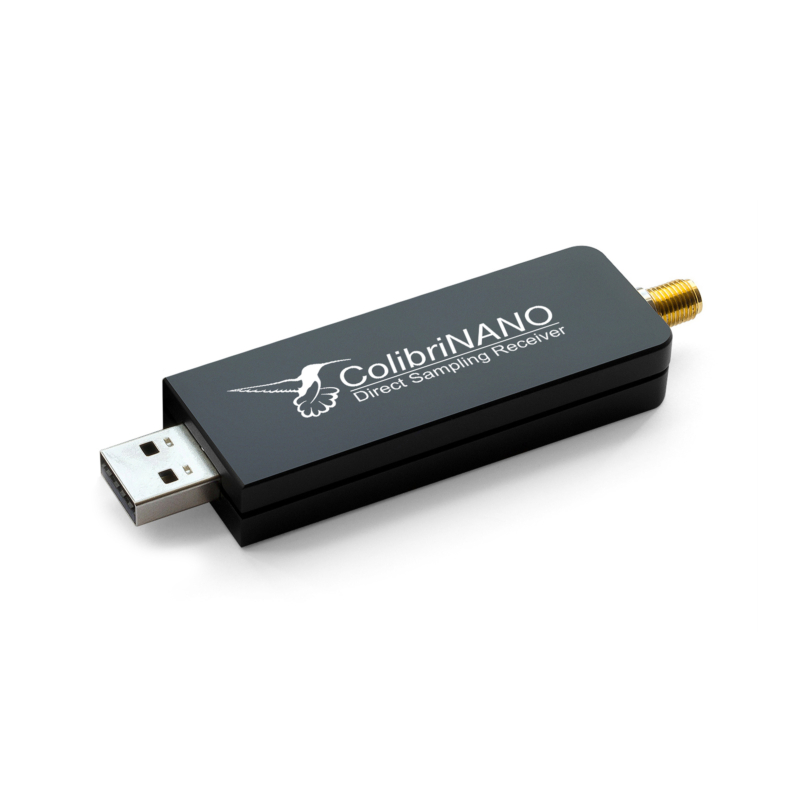

EXPERT ELECTRONICS COLIBRINANO SDR RECEIVER

Click to enlarge
Price:
264.48 EUR (220.40 EUR + VAT)
Model: COLIBRINANO
Availability: Back Order
Average Rating: 5 out of 5 Stars! (1)
Manufacturer: Expert Electronics
Qty:pieces
More pictures

Description

The Expert Electronics' ColibriNANO SDR receiver opens new horizons for HF band enthusiasts, thanks to its 14-bit ADC, which provides a ~110 dB BDR and up to 3 MHz sample rate. A 0.5 ppm local oscillator gives the ColibriNANO SDR radio a great frequency stability. Using the ColibriNANO SDR receiver remotely, in some rural area will give you the lowest air noise you've ever seen while won't rob you from any comfort or functionality. The ColibriNANO SDR radio operated by Expert Electronics' ExpertSDR2 software and compatible with popular HAM software such as HDSDR, SDRSharp via the ExtIO library.

You must enable the program on windows10 firewall, otherwise it will disable the communication. After every firmware upgrade, you should do it.

Expert Electronics ColibriNANO SDR receiver typical applications:

  • Direct connection with your laptop
  • Remote operation
  • Remote connection with a local transceiver
  • Spectrum analyzer

You can find more information about SDR radios on the following links:

IMPORTANT NOTICE!
SDR radios have no control panel, therefore manufacturers do not supply a user manual. Our company only sells SDR hardware; operation of these devices requires various software that you can download from the internet.  Most of these software products are only available for download in the English language  from the websites of manufacturers and third party developers (many of them radio amateurs) either for free or for a fee.  Installation, setup and usage of the software require an intermediate level of proficiency in computing and the English language. We do not advise to buy these equipment unless you are in possession of these required skills, and we highly recommend to seek assistance and prior information from other radio hams on internet-based forums and user groups.

Expert Electronics ColibriNANO SDR receiver technical specifications:

Modes* LSB/USB/DSB/CW/AM/SAM/NFM/WFM
Receiving bandwidth, MHz 0.01 - 55
Receiving bandwidth in the undersampling mode MHz 0.01– 500
Noise floor, dBm 1.9 MHz (160M) - 131; 7.1 MHz (40M) - 130; 52.5 MHz (6M) - 127
Sample rate with IQ stream resolution 24-bit, kHz 48, 96, 192, 384, 768
Sample rate with IQ stream resolution 16-bit, kHz 1536, 1920, 2560, 3072
Amount of software receivers 1 (+1 SubRX)
Sensitivity, uV 0.35
Blocking Dynamic Range (BDR), dB 110
IMD3 Dynamic Range, dB 95
RMDR (Reciprocal Mixing Dynamic Range) with 1 kHz offset dB 104
NPR (Noise Power Ratio) with Noise Bandwidth 5 MHz dB 59
Supply voltage range, V 4.5...5.5
Maximum antenna input voltage, without ADC overload, mV (ATT=0 dB) 74 (Pk-Pk); 32.7 (RMS)
Maximum current consumption, A 0.41
Input impedance, Ohm 50
ADC clock frequency, MHz 122.88
ADC resolution, bit 14
Local oscillator stability, ppm +/- 0.5
Local attenuator with 0.5 dB step, dB from -31.5 up to +6
RF input with up to 15 kV ESD protection SMA connector
Dimensions L x W x H, mm (inches) 25х17х90 (3 1/2" x 1" x 5/8")
Operating temperature, °C from 0 up to 60
Active device temperature, °C +45...+50
Weight, gram (ounces) 43 (1.52)
* More modes can be supported via external software

Videos

Reviews

5.00
1 rating
5
(1)
4
(0)
3
(0)
2
(0)
1
(0)
Write a review!
| 5 out of 5 Stars!
22/02/2019
Nagyon gyors és kedves volt a kiszolgálás.

A stick akkora mint egy nagyobbacska pendrive, masszív fémházban van. Jó a tapintása, na, de nem tapintgatni vettem :) Annál is kevésbé akarom tapogatni, mert menet közben azért eléggé felmelegszik. Tervezett feladata nálam: panadapter, skimmer és másodvevő az Icom 7400 adóvevő mellé.
Mivel nem tudom közvetlenül a laptopba dugni (rövid az antenna-patchkábel), egy USB hosszabbító-kábelen kötöttem be. Az orosz-ukrán szoftvereket (ExpertSDR2, SDC) már elözö este felkonfiguráltam, és amikor megjött az eszköz, teljes meglepetésemre a szoftver elindítása után minden további gombnyomás nélkül már ment is, rajzolta szépen a vízesést, rakta ki a spotokat a képernyőre. Minden szépen, szinkronban tekeredik az Icommal, gyorsan, szinte real time reagál, kényelmesen lehet tekergetni a rádió vfo gombját, finoman viszi az SDR-t. Fut a saját skimmere, küldi a spotokat a spektrumszkópra és a lokális DX clusterembe, illetve a logprogramba (N1MM+). Sajnos az antenna beteg, és este már nem tudtam kimenni megnézni, hogy mi a gond, de azért jöttek így is jelek 80m-en. Az öregecskedő i5 laptomon, amin az SDR Console szoftver is állandóan fagy meg belassul a végletekig, az Expert SDR2 szoftver 192kHz mintavételezéssel, az SDC skimmerrel együtt 25% prociterheléssel fut, és több óra futás után is teljesen stabilnak látszik. Ráadásul pár paraméter átpöccentése után az SDC skimmer máris egy másik, kevésbé leterhelt PC-n fut a TCI protokoll segítségével. Hallgattam a laptop fejhallgató-kimenetén, egy kis keverőn át - (hogy össze tudjam hasonlítani az adó-vevővel) - a hang sem akadozik. A vételi képességeit még most fogom csak tesztelni, de akit az Icom adóvevőn eddig hallottam, azt ezen a nano méretű SDR-en is.

Arre optimalizált saját szoftverei miatt elsősorban rövidhullámú CW, SSB, RTTY versenyző rádióamatőröknek ajánlom, de kis mérete és jó paraméterei miatt a rövidhullámok más szerelmesei és profi felhasználói számára általános vevőkészülékként is jó választás lehet.
