Description

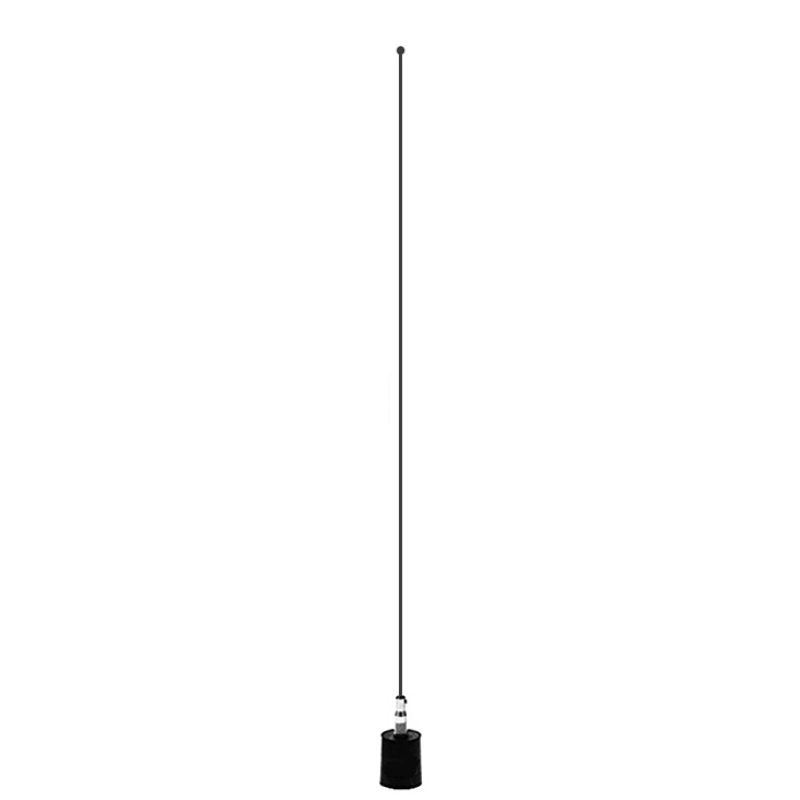

Economical yet durable, the (B)MMC antennas feature insert molded top stud and bottom mounting threads that will not leak water, pullout or rotate. Additionally, they can be ordered with a black shock spring for a complete black finish.
Features:
• Molded weather-proof matching coil in an attractive black base
• Coil is wound on a low-loss coil form to withstand the heaviest shocks
• Optional 55” whip extends the frequency range down to 118 MHz
• Mates with all 1-1/8” -18 thread mounts, including 3/4” mounts
Maximum Power:
200 Watts
VSWR at Resonant Point:
<1.5:1
Nominal Impedance:
50 Ohms
Antenna Type:
Base loaded 5/8 Wave
Radiator Material:
.100”- .062” diameter tapered stainless steel; bright or black finish
Optional Spring:
Stainless steel; bright or black finish
Rod Ferrule:
5/16”-24 thread; bright or black chrome plated brass
Base Coil Housing:
Molded polymer jacket with copper, nickel and chrome plated insert ring and stud
Antenna Height:
Approximately 59” at lowest frequency
