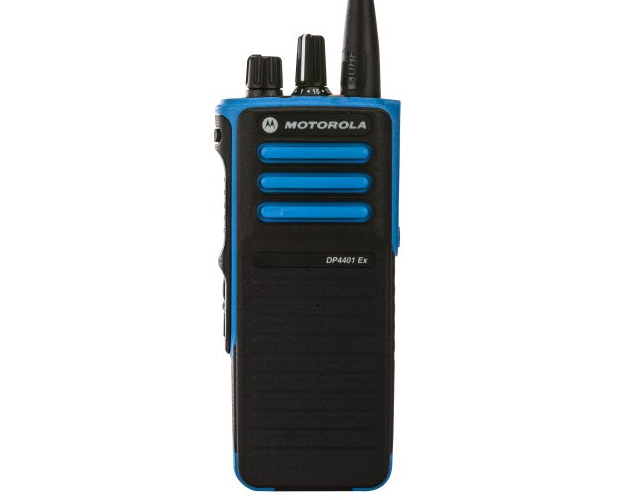

Motorola DP4401EX DIGITAL ATEX TRANSCEIVER

Click to enlarge
Price:
1,284.82 EUR (1,070.68 EUR + VAT)
Model: MDH56QCC9LA3AN
Availability: Back Order
Average Rating: Not Rated
Manufacturer: Motorola
Qty:pieces
More pictures

Description

Threats from explosive gas or combustible dust, on an oil rig or in an open mine, your workers confront them daily. Safe, reliable communication is absolutely critical in such dangerous environments. That’s where the power and performance of Motorola MOTOTRBO digital portable radio stands out.

The Motorola DP4401EX digital, ATEX-certified portable transceiver delivers unrivaled voice and data communications with integrated GPS, built-in 2075 mAh battery plus best-in-class audio that includes Intelligent Audio and customizable voice announcements.

Available in UHF and VHF frequency bands, the Motorola DP4401EX digital portable two-way radio is easy to use and features up to 32 channel capacity, three programmable buttons, emergency button, mandown and lone worker functions and IP67 specifications for submersibility.


Motorola DP4401EX digital ATEX transceiver features:

Best-in-class Audio
Loud front-facing speaker and Intelligent Audio feature that automatically adjusts the radio volume according the environment’s noise level.

Text Messaging
Send preprogrammed update messages to team members when radio communications need to be delivered without interrupting workers or guests.

Integrated GPS
Locate mobile work teams using integrated GPS.

Emergency Button
Orange button on the top of the radio can be programmed to send an alert to a supervisor or dispatcher during an emergency situation.

Security
Three levels of scrambling or encryption built-in for increased security: 16-bit Basic Privacy, 40-bit Enhanced Privacy or 256-bit AES256 encryption.

Transmit Interrupt
Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it’s needed.


Warranty:
Standard warranty, 2 years


Motorola DP4401EX digital ATEX transceiver parameters:

PERFORMANCE CHARACTERISTICS
Frequency band VHF, UHF
Repeater capable Yes
Battery life (based on a 05 05 90 duty cycle) 19 hours in digital mode, 16 hours in analogue mode
Standard battery chemistry type Lithium Ion
1 Watt Yes
PHYSICAL CHARACTERISTICS
Emergency button Yes
Keypad None
Display No display
Weight (With 1400mAh LiIon battery) 455.5g (16.1 oz)
Dimensions H x W x D (with standard battery) 138.5 x 56.7 x 37.8 mm (5.45 x 2.23 x 1.49 in)
RADIO FEATURES
Transmit interrupt Yes
Digital private line Yes
Private line Yes
Monitor Permanent (Sticky) Monitor Yes
Lone worker Yes
GPS operation Yes
Voice announcement Yes
Signalling DMR, PL/DPL, MDC, Quik-Call II, 5-tone
Intelligent audio Yes
Programmable buttons Yes
Voice operated transmit (VOX) Yes
Time out timer Yes
Talkaround Yes
Scan types Normal, Priority, Dual priority, Nuisance channel delete, Talk group, All group, System, Home revert
Group call Yes
One to one calling Yes
Missed call alerts Yes
CPS (Customer Programming Software) Yes
Channel spacing 12.5, 25, 20
Number of channels 32
Channel scan Yes
Call tones Yes
Call forward Yes
Busy channel lockout Yes
Integrated voice and data Yes
TECHNOLOGY
System type TDMA, Capacity Plus, Linked Capacity Plus, IP Site Connect
Digital technology Yes
USER ENVIRONMENT
ATEX IECEx Yes
Submersible Yes
Mil spec 810 C, 810 D, 810 E, 810 F, 810 G
Noise reduction software Yes
IP Standards IP67
