N FEMALE FOR 7/8" FEEDER CABLE

Anico
9.40 EUR (7.90 EUR + VAT)
Qty:pieces
Model: NF-78
Availability: On stock
Not Rated
For EU private customers:
VAT is recalculated to your local VAT, when you add your country through checkout menu.
Companies with EU VAT number:
We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!
For NON EU customers:
Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.
9.40 EUR (7.90 EUR + VAT)
Qty:pieces

Description

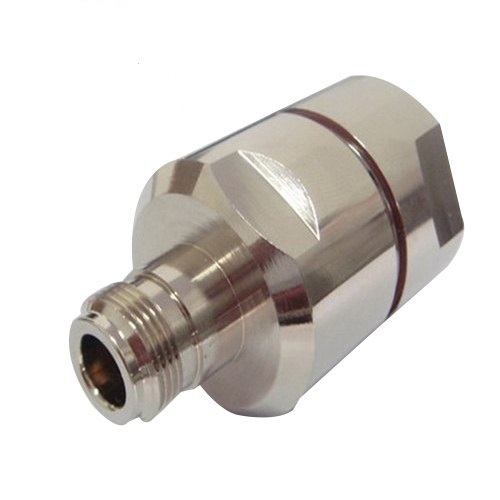

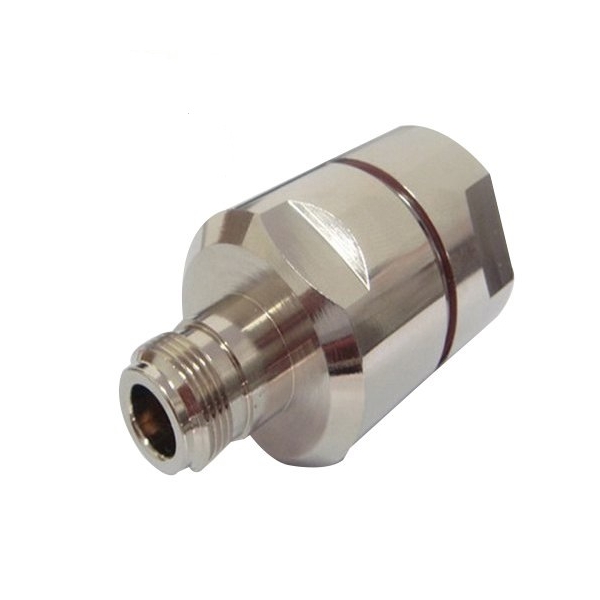

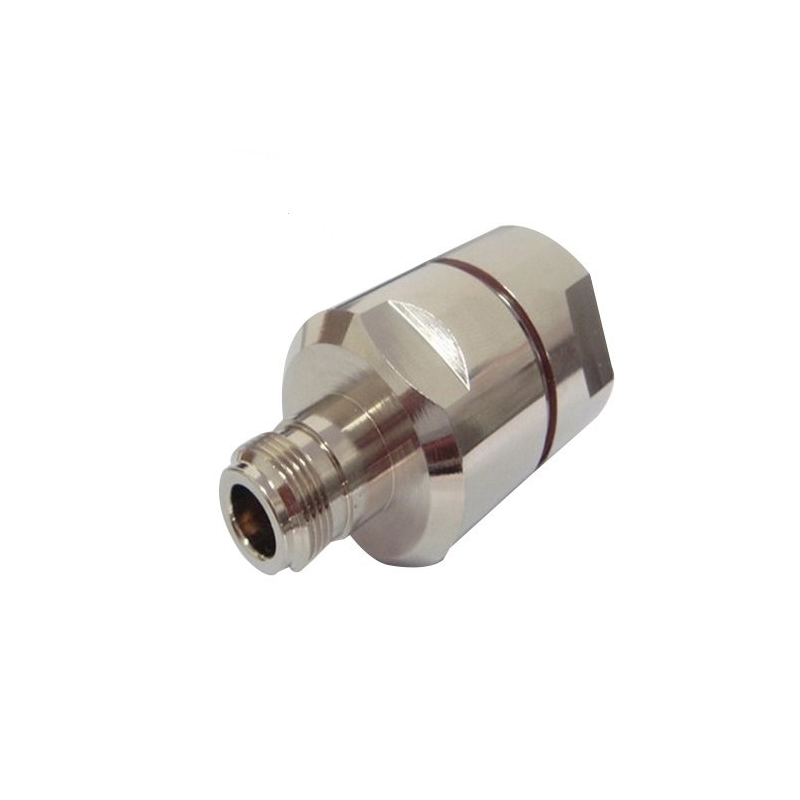

N female connector (straight cable jack) for 7 by 8 feeder cable

MATERIALS & PLATING

Description

Material

Surface Plating

Shell/Body

BRASS

Nickel

Contact pin

PHOSPHOR BRONZE

Gold

Insulator

PTFE



PHARAMETERS:

Suitable standard IEC 60169-16
Impedance 50Ω
Frequency range max 3 GHz
VSWR <1.15 @ 0~3GHz
PIM -115dbm
Dielectric Withstanding Voltage 1500V (RMS)
Contact Resistance Center conductor ≤ 1.5mΩ, Outer conductor ≤ 1mΩ
Insulation Resistance ≥ 5000MΩ
Mating 5/8-24UNEF-2A
Durability ≥ 500 cycles
Temperature range - 40°C to +85 °C
