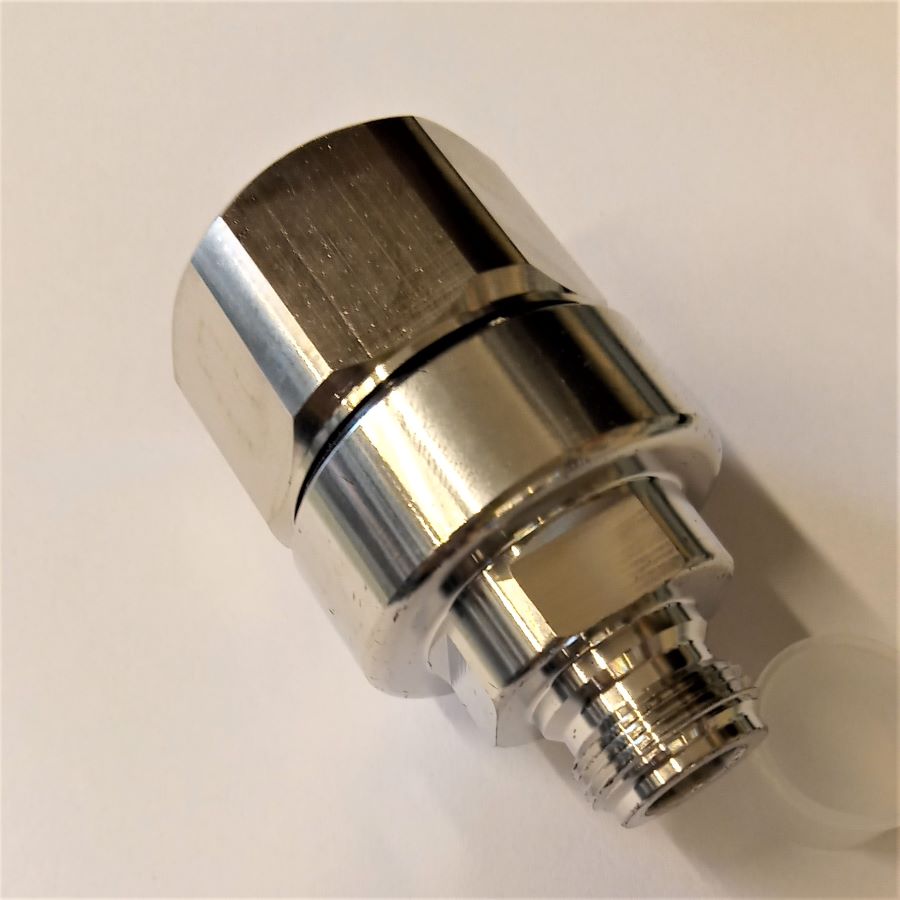

N male for 7/8" feeder cable

Anico
Model: NM-78
Availability: On stock
Not Rated
For EU private customers:
VAT is recalculated to your local VAT, when you add your country through checkout menu.
Companies with EU VAT number:
We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!
For NON EU customers:
We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.
10.32 EUR (8.68 EUR + VAT)
Qty:pieces

Description

N MALE - straight cable plug for 7/8’’ feeder cable

MATERIALS & PLATING

Description

Material

Surface Plating

Shell/Body

BRASS

Nickel

Contact pin

PHOSPHOR BRONZE

Gold

Insulator

PTFE



PHARAMETERS:

Suitable standard IEC 60169-16
Impedance 50Ω
Frequency range max 3 GHz
VSWR <1.15 @ 0~3GHz
PIM -115dbm
Dielectric Withstanding Voltage 1500V (RMS)
Contact Resistance Center conductor ≤ 1.5mΩ, Outer conductor ≤ 1mΩ
Insulation Resistance ≥ 5000MΩ
Mating 5/8-24UNEF-2A
Durability ≥ 500 cycles
Temperature range - 40°C to +85 °C
