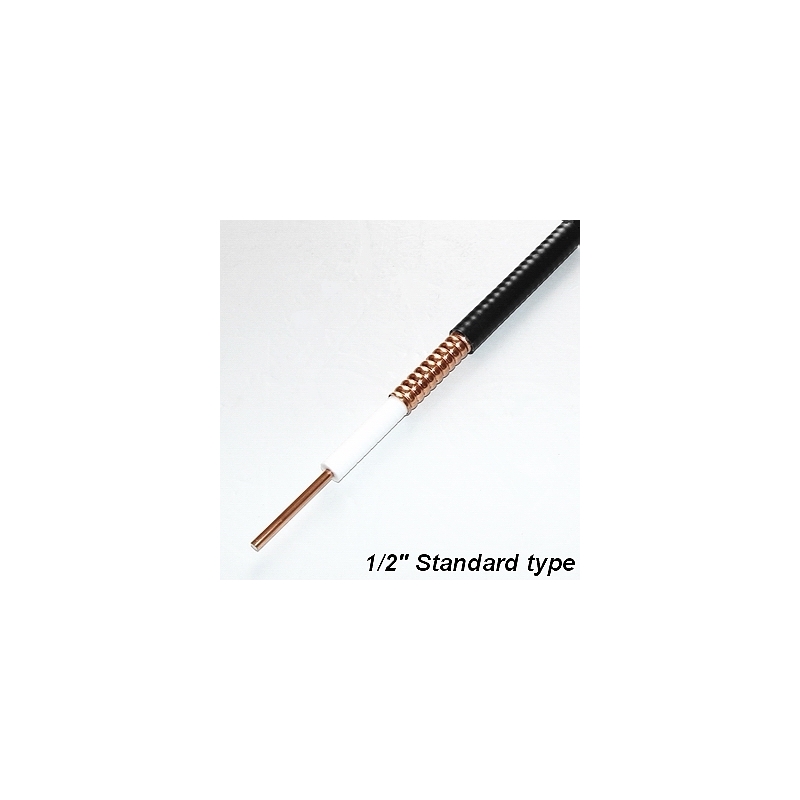

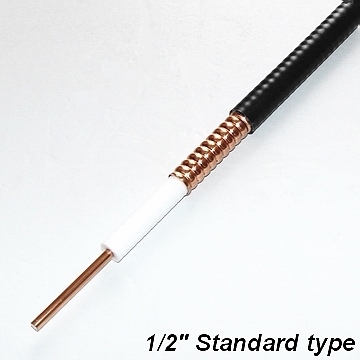

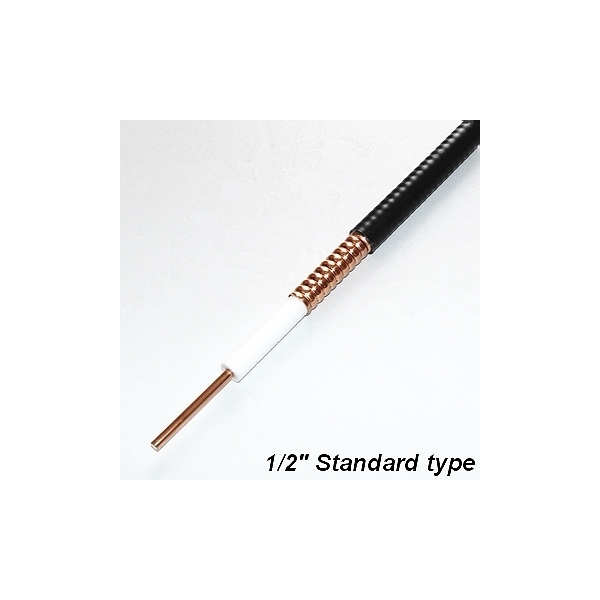

RF-1/2" FEEDER COAX CABLE 1/2" 50 OHM

Anico
Model: 1/2 KÁBEL
Nyíregyháza (HU): 138 meter in stock
Budapest (HU): Back Order
For EU private customers:
VAT is recalculated to your local VAT, when you add your country through checkout menu.
Companies with EU VAT number:
We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!
For NON EU customers:
We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.
Buy Now Pay Later
Buy now and pay in 30 days with PastPay! For corporate clients only, in certain EU countries.
3.90 EUR (3.28 EUR + VAT)
Qty:meter

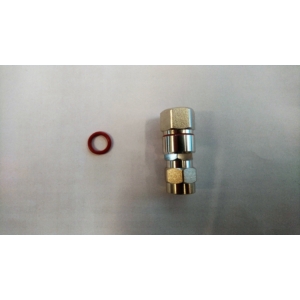

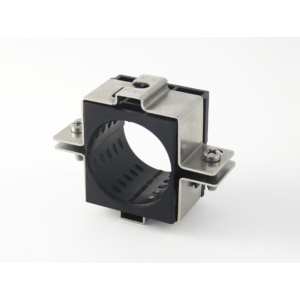

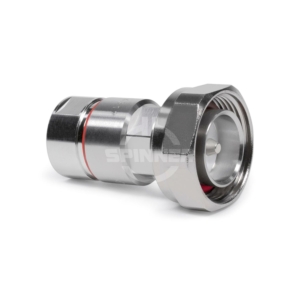

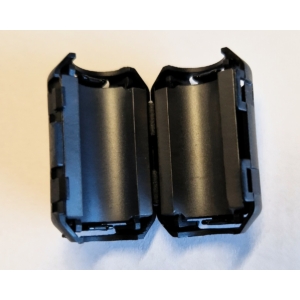

Please select the accessory products you would like to add to the cart!

Description

RF-1/2 feeder coax cable 1/2" 50 OHM. 1 reels= 500 m= 83 kg, drum size: 75*53 cm.

Price is for 1-100 meter.
Discount: above 100 meter 10%
Complete reel (500 meter): 15%


Technical specifications for 1/2 inch feeder cable
Item Material Diameter(mm)
Inner conductor Copper Clad Aluminum 4.8 mm
Dielectric Physical Foam Polyethylene 12.3 mm
Outer conductor Annular Copper Tube 13.9 mm
Jacket Black PE 16 mm
Electrical Characteristics
Capacitance(pF/m) 76
Impedance(Ω 50
Velocity (%) 88
Peak Power Rating(kW 40
RF Peak Voltage(kV) 1.6
Insulation Resistance(MΩ.km >5000
Cut-off Frequency (GHz) 8.8
Insulation Voltage(kVrms) 6
Inner Conductor DC Resistance(Ω/km) 1.52
Outer Conductor DC Resistance(Ω/km) 1.9
Jacket Spark(kVrms) 8
Sheilding Effectiveness(dB) >120
Mechanical Environment Characteristics
Min. Single Bending Radius(mm) 50
Min. Repeated Bending Radius(mm) 125
NO. of Bends 15
Tensile Strength(kg) 110
Storage Temp(℃) -55~+85
Installation Temp(℃) -20~+60
Operating Temp(℃) -55~+85
VSWR≤ 1.15 10M~3000MHz, 1.1 800M~1000MHz, 1.1 1700M~2000MHz, 1.1 2100M~2400MHz, 1.1 2100M~2400MHz
Frequency, Attenuation(VSWR1.1, Cable Temp. 20℃ )and Average Power(VSWR1.0,Cable Temp. 40℃) 100 2.15 3.98, 200 3.08 2.78, 450 4.7 1.82, 800 6.35 1.34, 900 6.75 1.26, 1000 7.2 1.19, 1500 9.05 0.96, 1800 9.9 0.87, 2000 10.5 0.82, 2200 11.1 0.77, 2400 11.6 0.74, 2500 12 0.72, 3000 13.2 0.65, 4000 15.9 0.55, 5000 18.2 0.48, 6000 20.3 0.43
