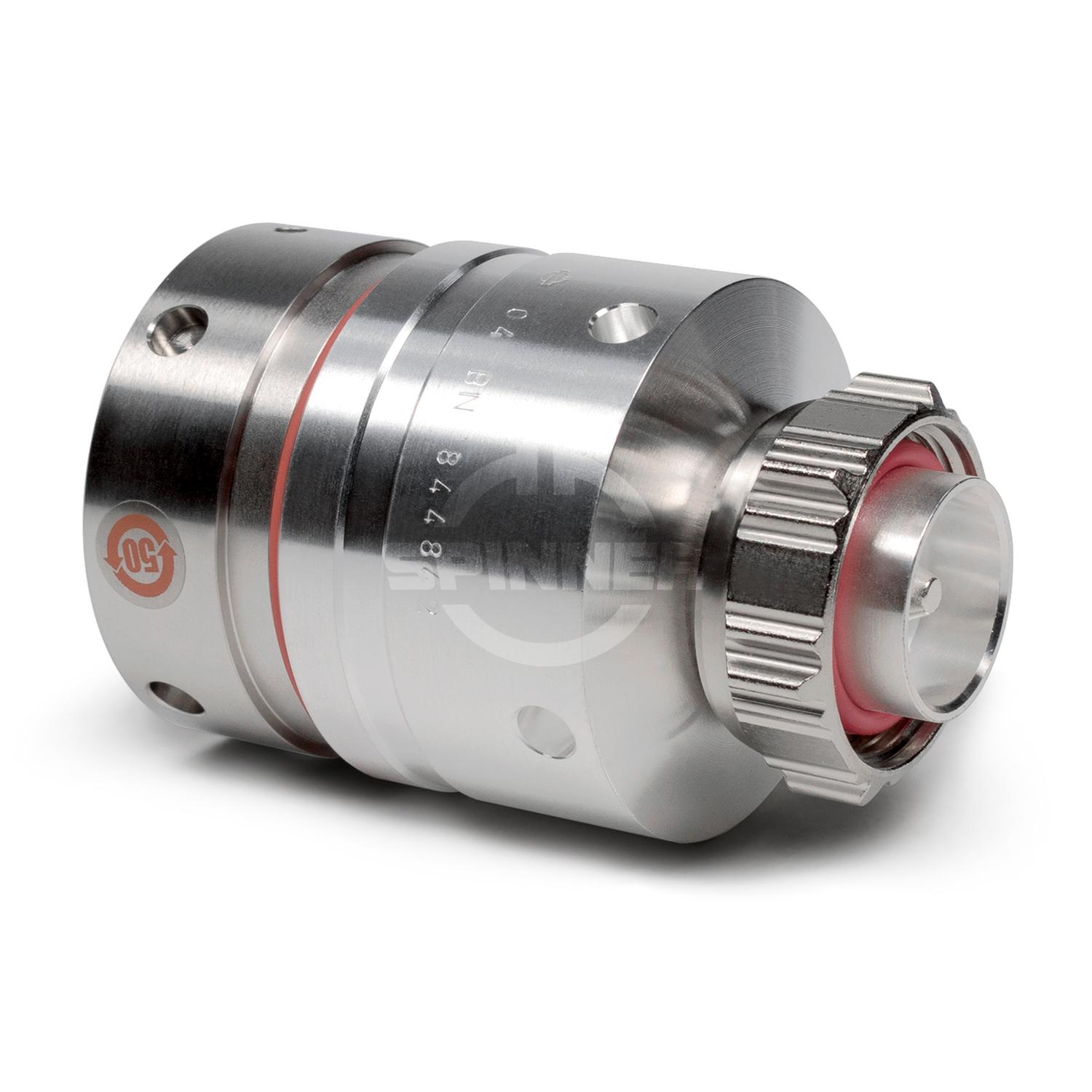

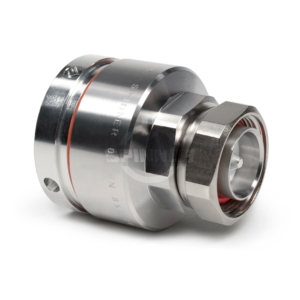

SPINNER 7-16 CONNECTOR 1 1/4"-50 CAF Plast2000

SPINNER 7-16 connector 1 1/4"-50 CAF Plast2000. For Heliax, Andrew, TimesMicrowave, Belden, Draka, CommScope, EUPEN etc. cables.

RF characteristics

Number of interfaces:  1
Interface type:  7-16 male (50 Ω) per IEC 61169-4
Interface direction:  straight
Mounting type:  none
Frequency range:  DC to 3.3 GHz
VSWR, max.:
     1.02 @ DC to 1.0 GHz
     1.04 @ 1.0 to 2.2 GHz
     1.06 @ 2.2 to 2.7 GHz
     1.08 @ 2.7 to 3.3 GHz

Mechanical characteristics

Cable entry type:  CAF®
Cable compatibility:  LF 1 1/4
Cable manufacturer types:  RFS: LCFS 114-50 A, UCF 114-50 A
Inner conductor:  copper-alloy / silver-plated
Outer conductor material / surface:  copper-alloy / silver-plated
Other metal parts material / surface:  copper-alloy / nickel-plated
Insulation:  PTFE
Housing sealing:  silicone rubber, PLAST® 2000
IP protection level:  IP 68
IP protection level remark:  mated
Weight, approx.:  400.0 g
