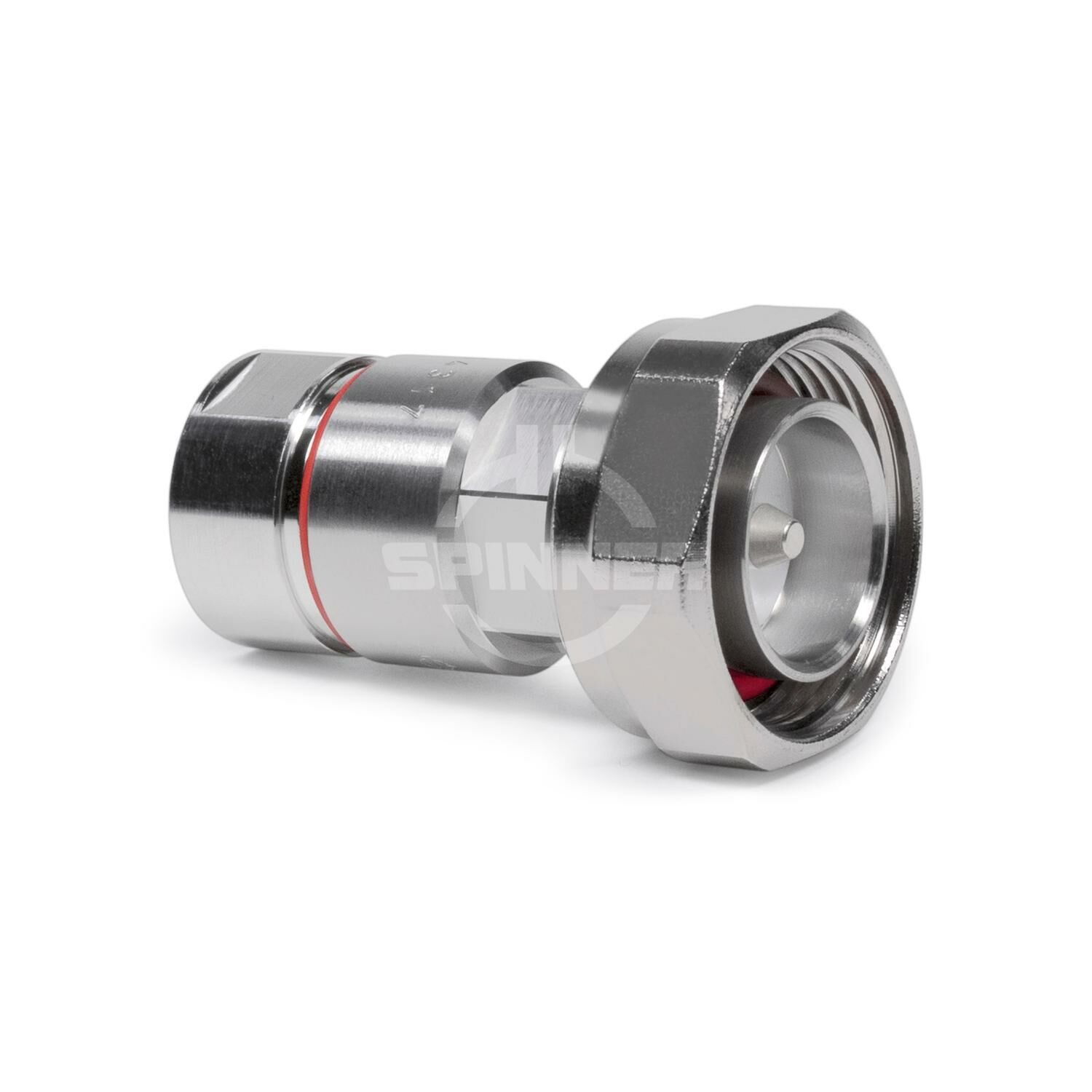

SPINNER 7-16 CONNECTOR LF 1/2"-50 MULTIFIT

Anico
Model: BN854317
Nyíregyháza (HU): 51 pieces in stock
Budapest (HU): Back Order
For EU private customers:
VAT is recalculated to your local VAT, when you add your country through checkout menu.
Companies with EU VAT number:
We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!
For NON EU customers:
We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.
18.70 EUR
9.35 EUR (7.86 EUR + VAT)
Discount: 9.35 EUR 50%
Sale duration: 09/02/2023 - 31/12/2024
Qty:pieces

Description

SPINNER 7-16 connector LF 1/2"-50 MULTIFIT. For Heliax, Andrew, TimesMicrowave, Belden, Draka, CommScope, EUPEN etc. cables.


RF characteristics

Number of interfaces:  1
Interface type:  7-16 male (50 Ω) per IEC 61169-4
Interface direction:  straight
Mounting type:  none
Frequency range:  DC to 6 GHz
VSWR, max.:
        1.02 @ DC to 1.0 GHz
        1.03 @ 1.0 to 2.7 GHz
        1.06 @ 2.7 to 3.8 GHz
        1.10 @ 3.8 to 6.0 GHz

Mechanical characteristics

Cable entry type:

  • Spinner MultiFit®
  • Cable compatibility:
  • LF 1/2
  • Cable manufacturer types:
  • SPINNER: SpinnerFlex® LF 1/2"-50
  • Acome: HPL50-1/2 F
  • Andrew: LDF4-50 A
  • Draka: RFA 1/2"-50
  • Eupen: EC4-50
  • Hansen: RF 50 1/2"
  • Hengxin: HCAAY-50-12
  • Leoni: FlexLine 1/2" R
  • LS Cable: HFC 12D Flexible Foam
  • RFS: LCF 12-50, LCF 12-50 L

Inner conductor:  copper-alloy / silver-plated
Outer conductor material / surface:  copper-alloy / CuSnZn-plated
Other metal parts material / surface:
        copper-alloy / tin-plated
        copper-alloy / nickel-plated
        copper-alloy / CuSnZn-plated
Insulation:  PTFE, PE
Housing sealing:  silicone rubber, EPDM
IP protection level:  IP 68
IP protection level remark:  mated
Weight, approx.:  125.0 g
