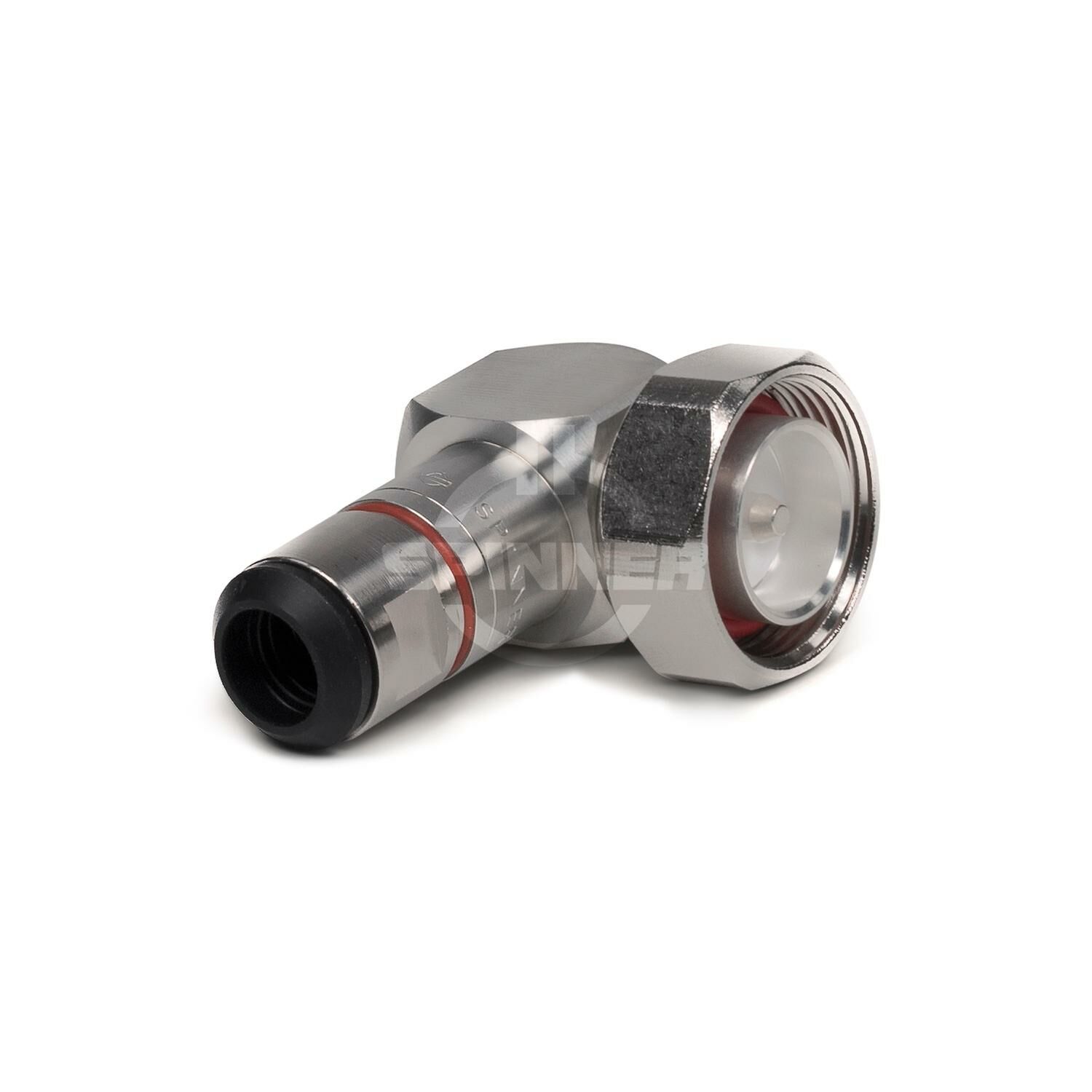

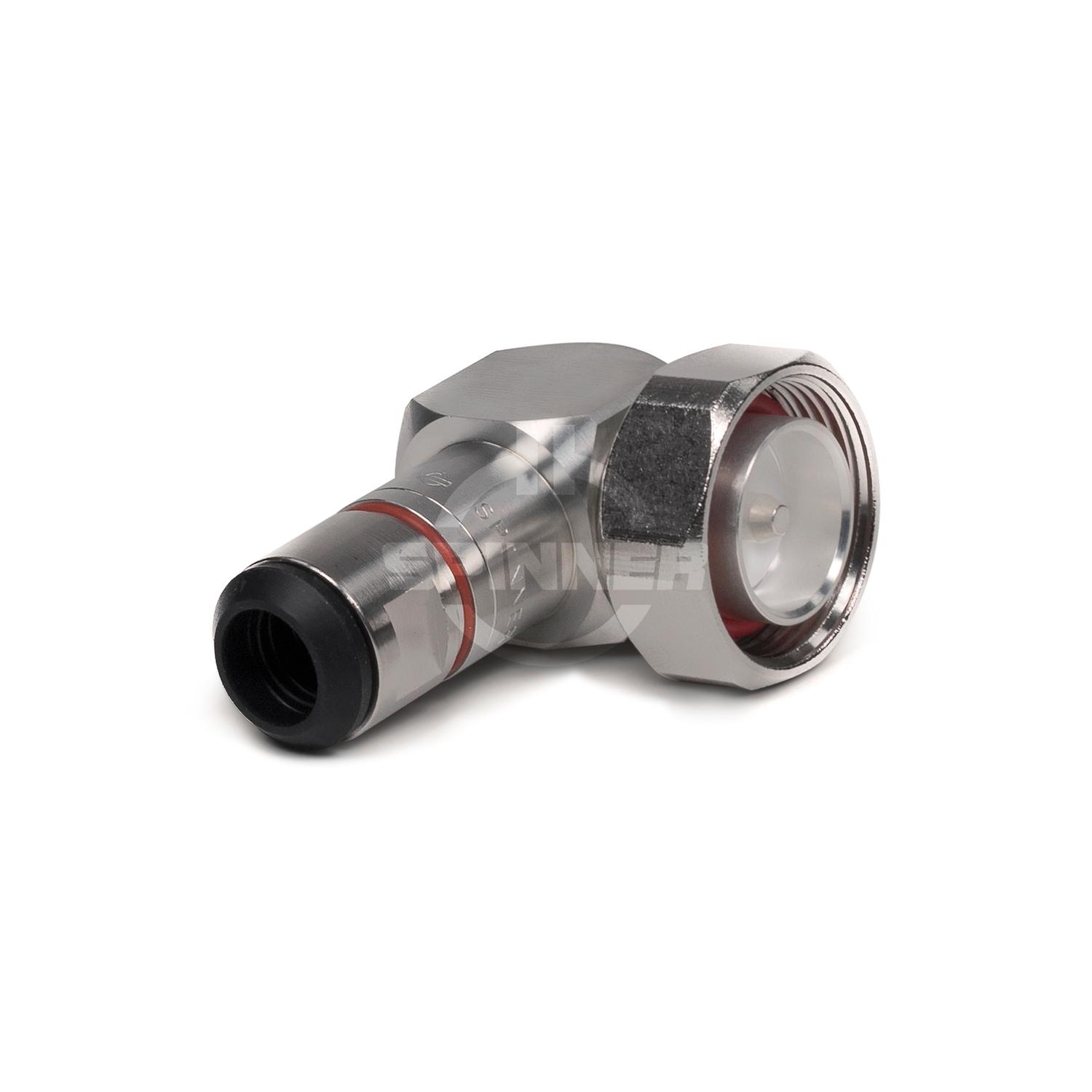

SPINNER 7-16 RIGHT ANGLE CONNECTOR SF 1/2"-50 MULTIFIT

SPINNER 7-16 right angle connector SF 1/2"-50 MULTIFIT. For Heliax, Andrew, TimesMicrowave, Belden, Draka, CommScope, EUPEN etc. cables.


RF characteristics

Number of interfaces:  1
Interface type:  7-16 male (50 Ω) per IEC 61169-4
Interface direction:  right angle
Mounting type:  none
Frequency range:  DC to 3.8 GHz
VSWR, max.:
     1.04 @ DC to 1.0 GHz
     1.06 @ 1.0 to 2.7 GHz
     1.13 @ 2.7 to 3.8 GHz

Mechanical characteristics

Cable entry type:
        Spinner MultiFit®
        Cable compatibility:
        SF 1/2
        Cable manufacturer types:
        SPINNER: SpinnerFlex® SF 1/2"-50
        Acome: HPL50-1/2 SF
        Andrew: FSJ4-50 B
        Draka: RFF 1/2"-50
        Eupen: EC4-50-HF
        Hansen: RF 50 1/2" S
        Hengxin: HRCAY-50-9
        Leoni: FlexLine 1/2" S
        LS Cable: HFSC 12 D
        RFS: SCF 12-50
Inner conductor:  copper-alloy / silver-plated
Outer conductor material / surface:
        copper-alloy / silver-plated
        copper-alloy / CuSnZn-plated
Other metal parts material / surface:  copper-alloy / nickel-plated
Insulation:  PTFE
Housing sealing:  silicone rubber
IP protection level:  IP 68
IP protection level remark:  barrier and mating face sealed
Weight, approx.:  200.0 g
