Standard Horizon HX-320E VHF HANDHELD MARINE RADIO

Standard Horizon
Model: AM068N303
Nyíregyháza (HU): 4 piece in stock
Budapest (HU): 1 piece in stock
For EU private customers:
VAT is recalculated to your local VAT, when you add your country through checkout menu.
Companies with EU VAT number:
We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!
For NON EU customers:
We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.
Buy Now Pay Later
Buy now and pay in 30 days with PastPay! For corporate clients only, in certain EU countries.
Product variations:
Owner's manual:
155.36 EUR (130.56 EUR + VAT)
Qty:piece

Description

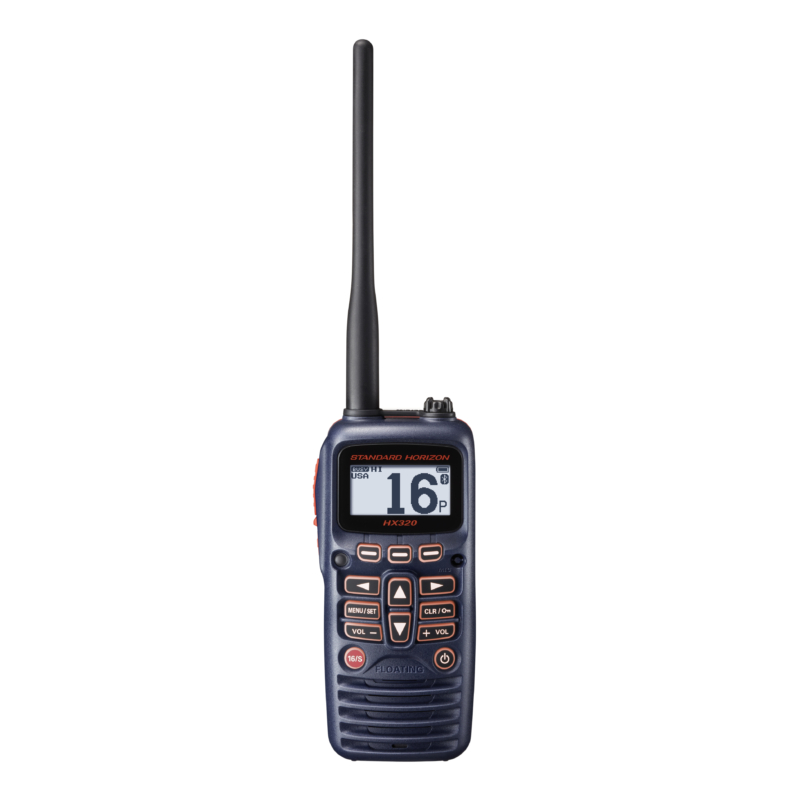

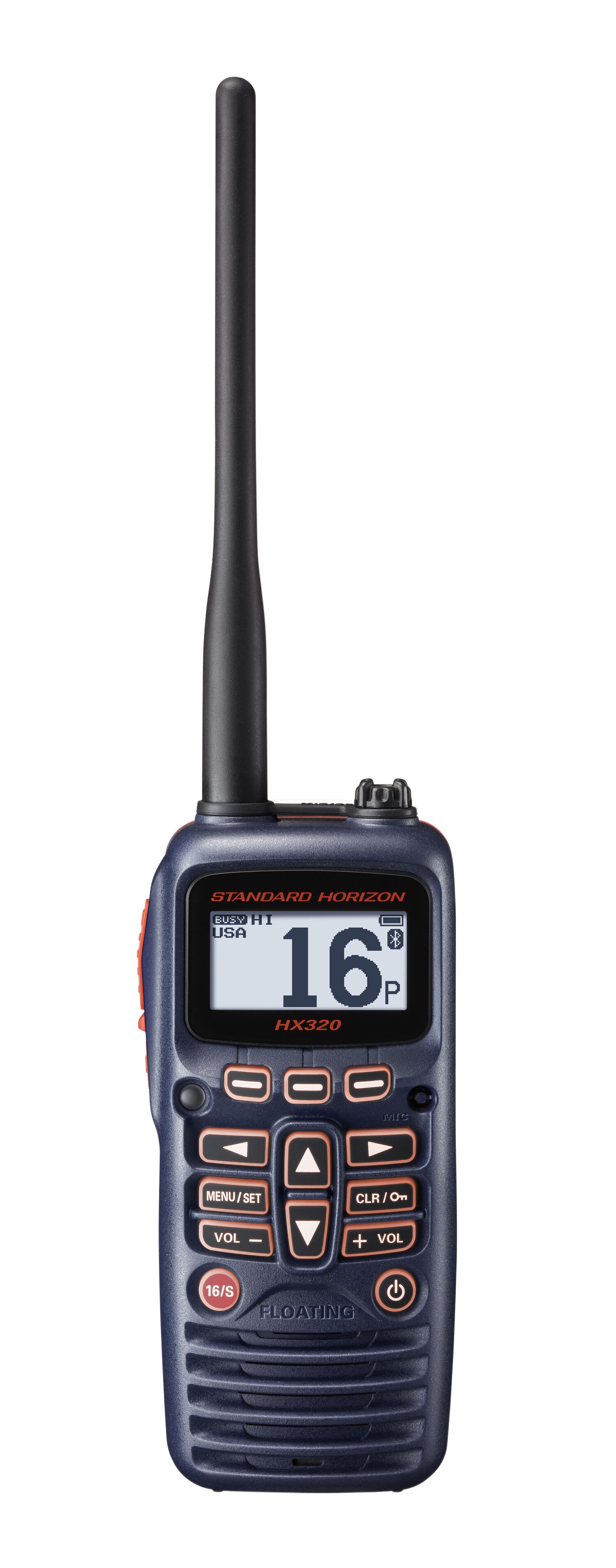

The Standard Horizon HX-320E handheld marine radio is submersible with IPX7 protection, submersible to a maximum depth of 1 m for 30 minutes. Optional 6W / 2.5W / 1 Watt transmitter power. It comes with a 2100 mAh Li-polymer battery, allowing up to 17 hours of operation.

With a robust and reliable design, the Standard Horizon HX-320 handheld marine radio is designed to float on water in accordance with the IPX7 water resistance standard. It lasts 30 minutes submerged at a depth of 3.3 feet / 1m. The Standard Horizon HX-320 handheld marine radio has a USB Type-C charging port. The included USB charging cable and USB to AC adapter make it quick and easy to charge your radio virtually anywhere. If you accidentally drop the Standard Horizon HX-320 handheld marine radio in water, it's easy to find with a highly visible strobe light that activates at the touch of water (the strobe light feature activates when the radio is turned on or off). With built-in Bluetooth technology, the Standard Horizon HX-320 handheld marine radio can now be put on speakerphone with the optional SSM-BT10 Bluetooth headset.

Standard Horizon HX-320E handheld marine radio key functions:

6W Transmit Power on Marine VHF
The Standard Horizon HX320 handheld marine radio provides a full 6 Watts of transmit power, also selectable to 2.5W or 1W settings to assist in obtaining maximum battery life. (5W TX power required in some countries)

700mW Loud Audio Output
The Standard Horizon HX320 handheld marine radio is designed to be heard, even in noisy environments, with 700mW of audio power supplied to the internal speaker.

Floating IPX7 Submersible Construction (3.3ft /1m of water for 30 minutes)
Engineered to be rugged and reliable, the Standard Horizon HX320 handheld marine radio is designed to float and constructed to survive submersion with the IPX7 water resistant rating. (When the MIC/SP jack and USB jack are securely covered with rubber caps.)

Water Activated Emergency Strobe Light
When the Standard Horizon HX320 handheld marine radio comes in contact with water, the water activated strobe light will turn on “WHITE” to assist in finding the radio in low light

  • Preset key used to recall up to 10 favorite channels
  • Programmable Scan, Priority Scan, Dual Watch and Triple Watch
  • Integrated FM Broadcast Receiver
  • NOAA Weather Channels with Weather Alert (Only available in NOAA weather service areas)

Standard Horizon HX-320E box contains:

  • Standard Horizon HX-320E Transceiver
  • VHF Marine Antenna
  • Charger Cradle
  • USB AC Adapter
  • USB Cable type-A to USB type-C Charging cable
  • Belt Clip
  • Hand Strap
  • Owner’s Manual

Blog posts:

IP Protection of Transceivers

All about VHF radios: frequency, range, MMSI code, ATIS code, DSC call, licences

General
Channels All USA Marine, Canadian Marine and International (Depends on the version)
Channel Spacing 25kHz
Frequency Stability ±3ppm –4°F to +140°F (–20°C to +60°C)
Emission Type 16K0G3E
Antenna Impedance 50 Ω
Supply Voltage 7.4VDC Negative Ground
Current Consumption 330mA (Receive), 100mA (Standby) TX:1.6A / 1.0A / 0.7A (TX:6W* / 2.5W / 1W)
Operating Temperature –4°F to +140°F (–20°C to +60°C)
Waterproof rating IPX7:3.3ft (1m) for 30 minutes
Case Size (W × H × D) 2.36" × 5.24" × 1.65" (60 × 133 × 42mm) (w/o knob & antenna)
Weight (Approx.) 10.23oz (290g) (With hand strap, belt clip & antenna)
Transmitter
Frequency Range (MHz) Marine Band 156.025MHz - 161.600MHz RF Output Power 6W* / 2.5W / 1W (@7.4V) (*5W TX power required in some countries)
Maximum Deviation ±5kHz
Spurious Emission Less than 0.25μW
Microphone Impedance 2kΩ
Receiver
Frequency Range (MHz) Marine Band 156.050MHz - 163.275MHz
Circuit Type Single-Conversion Superheterodyne
Sensitivity 0.25μV for 12dB SINAD(US) –5dBμ for 20dB SINAD(EXP)
Selectivity 12kHz / 25kHz (–6dB / –60dB)
Intermodulation 70dB typ.(US), 68dB typ.(EXP)
AF Output (Internal SP) 700mW @ 16Ω for 10% THD (@ 7.4V)
FM Broadcast Receiver
Frequency Range 65MHz - 108MHz
Frequency Step 100kHz
Sensitivity 1.0μV for 12dB SINAD
