BIGTAJFUN 1000 500 W 144/432MHZ LDMOS LINEAR PA W/LCD DISPLAY

BIGTAJFUN

Join our community for interesting content

Model:	BIGTAJFUN1000-144/432
Nyíregyháza (HU):	Back Order
Budapest (HU):	Back Order
Add to my wishlist

For EU private customers:

VAT is recalculated to your local VAT, when you add your country through checkout menu.

Companies with EU VAT number:

We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!

For NON EU customers:

We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.

Buy Now Pay Later

Buy now and pay in 30 days with PastPay! For corporate clients only, in certain EU countries.

2,401.97 EUR (2,018.47 EUR + VAT)

Qty:pieces

Add to Cart

Description
Reviews

Description

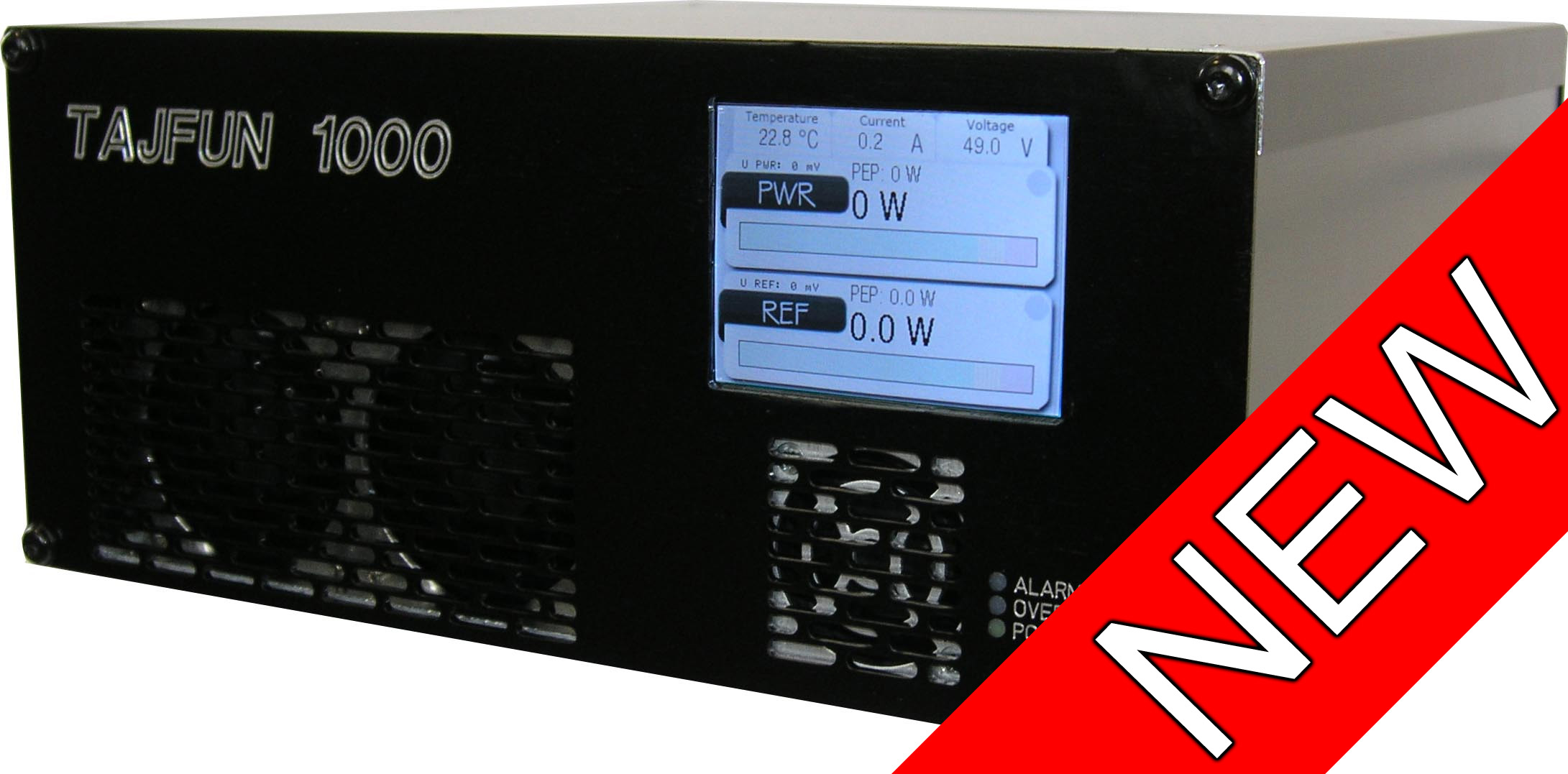

BIGTAJFUN 1000 500 W144/432MHZ is small, lightweight but robus dualband LDMOS Power Amplifier.

Freqency Coverage: 430-434 and 142-146 MHz
Operating Mode: FM, CW, SSB, DIGI
Output Power: 500W / 400W
Input Power: 15W / 432MHz, 22W / 144MHz default inside 6dB hybrid attenuator (optionaly 3dB)
Power supply inside: 48VDC / 1000W
Suppression of harmonics: <= 75dBc / 432 MHz, <=40dBc / 144 MHz
Low Pass Filter on 432 MHz
Working temperature: 0-45 °C, Max. humidity 90%
Protection from: PWR, SWR, Tmax, Imax, Umax/Umin
Control / Display: color TFT display
Measurment and display:
Current
Voltage
Power
Reflected power
Peak power
Temperature
USB - configuration, service
LAN - remote (optional)
Power supply: 195-277VAC, 45-66Hz
Dimension: 266x105x294mm
Coaxial Relay: CX600NC - CX140D
Weight: 5,5kg
