Wilson RG-11/U COAXIAL CABLE 75 OHM

Model: RG-11
Nyíregyháza (HU): 103 meter in stock
Budapest (HU): Back Order
Add to my wishlist
For EU private customers:
VAT is recalculated to your local VAT, when you add your country through checkout menu.
Companies with EU VAT number:
We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!
For NON EU customers:
We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.
Buy Now Pay Later
Buy now and pay in 30 days with PastPay! For corporate clients only, in certain EU countries.
4.25 EUR (3.57 EUR + VAT)
Qty:meter
Add to Cart
Please select the accessory products you would like to add to the cart!
ASSEMBLING CONNECTOR TO CABLE / 1 PCE.
ASSEMBLING CONNECTOR TO CABLE / 1 PCE.
7.44 EUR

Description

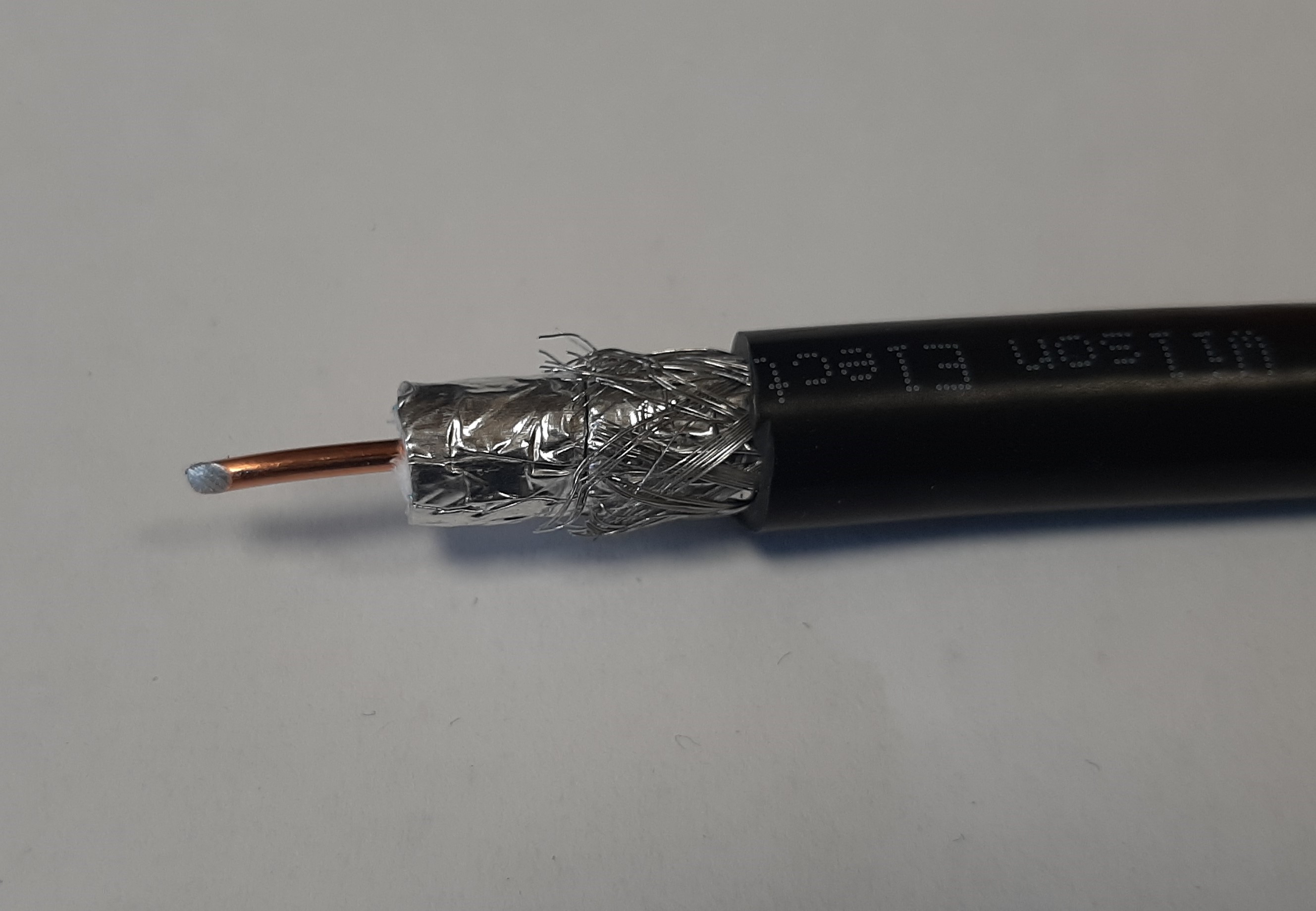

Wilson RG-11/U COAXIAL CABLE 75 OHM. Price is for 1 meter cable!

Conductor: Copper cladded steel
Conductor count: 1
Conductor size: 1.63mm
Insulation: Foam high density polyethylene
Shield: aluminum foil
Braid: aluminum
Outer jacket: UV stabile polyethylene
Nominal impedance: 75 ohm
Return loss: min 25dB, 5-850MHz
Insertion loss per 100 meters: 1MHz 0.42; 10MHz 1.2dB, 50MHz 2.5dB, 150MHz 6dB
Velocity factor: 0.84
Minimum bend radius: 12.5cm
Recommended application: impedance transformation for HF and VHF.

Because of aluminum foil shield and braid we recommend to use our N-SM400, N-SF400, UHF-SM400 and UHF-SF400 connectors, or the CM (crimp type) verions.
