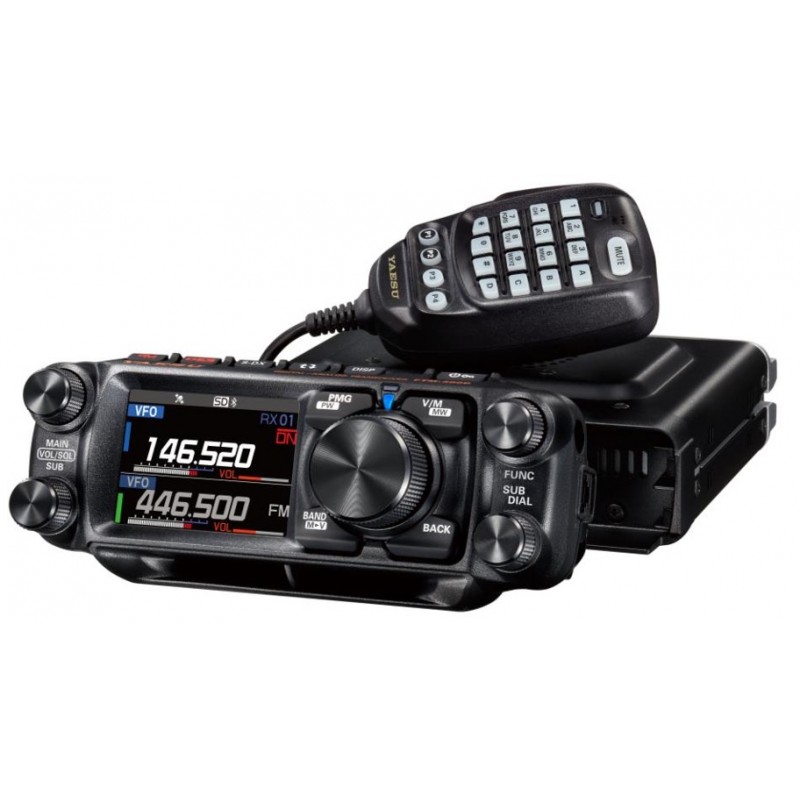

Yaesu FTM-500DE C4FM/FM VHF/UHF mobile transceiver / with 5 year warranty

Yaesu
Model: FTM-500DE
Nyíregyháza (HU): 2 pieces in stock
Budapest (HU): 1 pieces in stock
For EU private customers:
VAT is recalculated to your local VAT, when you add your country through checkout menu.
Companies with EU VAT number:
We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!
For NON EU customers:
We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.
Buy Now Pay Later
Buy now and pay in 30 days with PastPay! For corporate clients only, in certain EU countries.
Product variations:
Owner's manual:
619.79 EUR (520.84 EUR + VAT)
Qty:pieces

Description

Yaesu Cashback 10 May 2024 - 30 June 2024. 50 EUR can be claimed back. Details HERE!

We are pleased to introduce the new Yaesu FTM-500 50W C4FM/FM 144/430MHz dual band digital mobile transceiver. The Yaesu FTM-500 dual band digital mobile transceiver shares the Yaesu advanced core features, and utilizes the latest C4FM Digital technology.

Front Speaker with AESS* Dual Speaker System *(AESS: Acoustic Enhanced Speaker System)
Total 9W Clear & Powerful High-fidelity Audio, delivered by the Front Panel 6W and the Main Unit Internal 3W speakers

E2O(Easy to Operate)-IV
Innovative, Smart Operating System with TOUCH&GO / SEARCH&GO / PMG** Functions. **(PMG: Primary Memory Group Monitor)

Yaesu FTM-500DE C4FM/FM VHF/UHF mobile transceiver functions:

  • 144MHz, 430MHz C4FM Digital / FM / AM (Air Band Receive)
  • True Dual Band Operation, C4FM/C4FM Digital D-D Dual Receive
  • Advanced C4FM Digital Mode with AMS (Automatic Mode Select), DG-ID feature and Smart Navigation
  • 2.4-inch High-Resolution Full-Color Touch-panel Display and Demountable Front Panel Controller
  • Swing-Head adaptable Front Panel improves display visibility
  • Single-Touch Spectrum Scope function
  • High speed Band Scope function
  • Built-in 66ch High precision GPS receiver and External GPS device connectivity
  • Wireless Operation Capability with the Bluetooth® Headset  - Optional Swing-head Kit (SJMK-500) allows the Flexible angle adjustment of the Front Control Panel
  • Customized Function List (CFL) Display allows checking and immediately executing priority functions. (Up to 8 functions or settings from the set-up menu can be registered.)
  • MAG (Memory Auto Grouping) Function allows Memory channels to be automatically categorized in ALL, AIR band, VHF band, UHF band and OTHER.
  • VFO Band Skip Function
  • Memory Channel Data Transfer to the VFO Register
  • Single-Touch Spectrum scope function: Instantly switches the operating screen between "Scope display operation" and "Dual Receive operation" while in MAIN channel operation
  • High speed Band Scope function *up to 61 channels centered on the current frequency displayed in VFO mode and up to 21 channels of signal information in memory channel mode
  • 1104 Memory Channels including 5 "Home" channels, 50 sets of memories for programmable memory scan and 999 "Basic" memories.
  • 1200/9600bps APRS® Data Communication

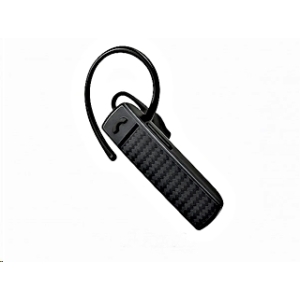

  • Wireless Operation Capability with a Bluetooth® Headset

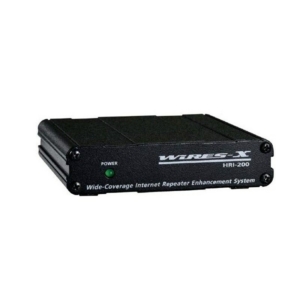

  • WiRES-X Portable Digital Node or HRI-200 Fixed Node capability
  • Voice Recording of the received and transmitted audio
  • 50W Stable High-Power with Heavy Duty Heat Sink and FACC (Funnel Air-Convection Conductor)
  • Selectable 50W / 25W / 5W
  • Micro SD Card Slot (up to 32GB)

Yaesu FTM-500DE C4FM/FM VHF/UHF mobile transceiver box content:

  • FTM-500DE transceiver
  • SSM-85D DTMF microphone
  • Radio unit mounting bracket
  • Control cable for operation with adjustable front mount
  • DC power cable
  • User manual in English

Radio amateur transceivers can only transmit within amateur bands in factory default settings. Frequency extension is extra cost, you have to order separately!

Freq. Range TX 144 - 148MHz or 144 - 146MHz, 430 - 450MHz or 430 - 440MHz (Depends on the transceiver version),:RX 108 - 137MHz (AIR Band), 137 - 174MHz (144MHz HAM / VHF Band), 174 - 400MHz, 400 - 480MHz (430MHz HAM / UHF Band), 480 - 999.995MHz (USA Cellular Blocked)
Ch Steps 5/6.25/8.33/10/12.5/15/20/25/50/100kHz (8.33kHz:only for Air band)
Mode of Emission F1D, F2D, F3E, F7W
Freq. Stability ± 2.5ppm (-4°F to +140°F [-20°C to +60°C])
Antenna Impedance 50Ω
Supply Voltage Nominal 13.8V DC, negative ground
Current Consumption (approx.) 0.5A (Receive) 10A (50W TX, 144MHz) 10A (50W TX, 430MHz)
Operating Temperature -20°C to +60°C
Case Size Radio unit 139 x 42 x 132mm (w/o Fan) Controller 156 x 64 x 58.6mm (w/o Knob)
Weight ~1.4kg (with Radio Unit, Controller, Control Cable)
Transmitter
RF Power Output 50W / 25W / 5W
Modulation Type F1D, F2D, F3E:Variable Reactance Modulation, F7W:4FSK (C4FM)
Maximum Deviation ±5kHz
Spurious Emission At least 60dB below
Microphone Impedance 2kΩ
DATA Jack Impedance 10kΩ
Receiver
Circuit Type Double-Conversion Super heterodyne
Intermediate Frequency 1st:MAIN Band 56.75MHz, 1st:SUB Band 55.85MHz, 2nd:MAIN Band, SUB Band 450kHz
Sensitivity 0.8μV typ for 10dB SN (108 - 137MHz, @AM), 0.2μV for 12dB SINAD (137 - 150MHz, @FM), 0.25μV for 12dB SINAD (150 - 174MHz, @FM), 0.3μV typ for 12dB SINAD (174 - 222MHz,@FM), 0.25μV typ for 12dB SINAD (222 - 300MHz, @FM), 0.8μV typ for 10dB SN (300 - 336MHz, @AM), 0.25μV typ for 12dB SINAD (336 - 420MHz,@FM), 0.2μV for 12dB SINAD (420 - 470MHz, @FM), 0.2μV typ for 12dB SINAD (470 - 540MHz, @FM), 0.8μV typ for 12dB SINAD (540 - 800MHz, @FM), 0.4μV typ for 12dB SINAD (800 - 900MHz, @FM), 0.8μV typ for 12dB SINAD (900 - 999.99MHz, @FM), 0.19μV typ for BER 1% (Digital Mode), Cellular Blocked (USA only)
Selectivity (-6 dB/-60 dB) NFM, AM 12 kHz / 30 kHz
AF Output 6W (8 Ω, THD10%, 13.8 V) Front Speaker, 3W (8 Ω, THD10%, 13.8 V) Internal Speaker, 3W (8 Ω, THD10%, 13.8 V) External Speaker
AF Output Impedance 8 Ω
Strength of secondary radio waves 4 nW and below
Bluetooth Version 5.0, Class 1
