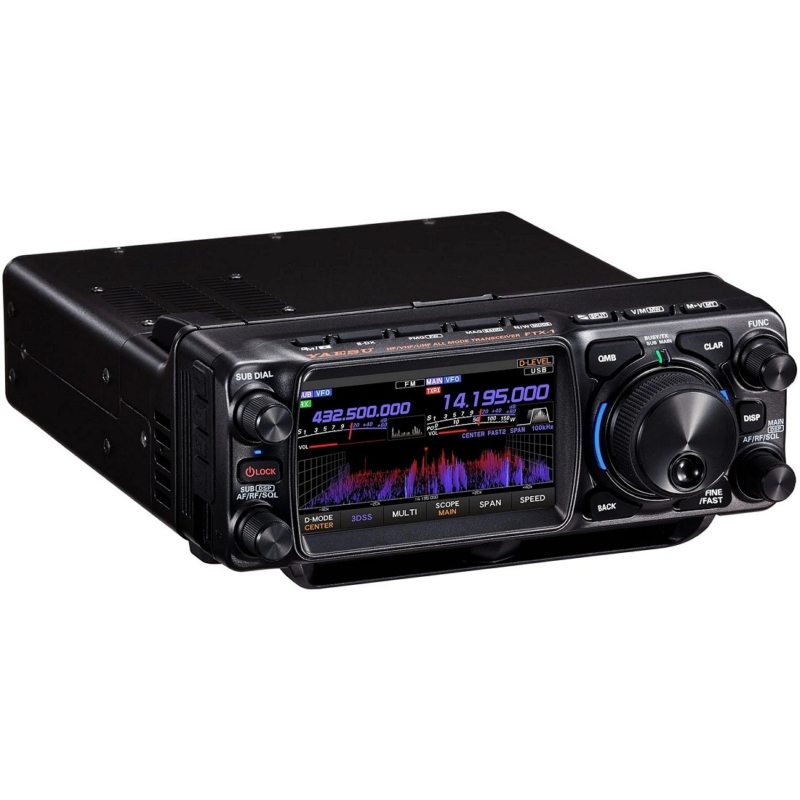

Yaesu FTX-1 OPTIMA 100W HF/VHF/UHF SDR mobile transceivers / with 5 year warranty

The Yaesu FTX-1 OPTIMA is a versatile all-mode transceiver based on SDR technology, covering HF, 50 MHz, VHF and UHF bands. Its compact size (213 × 89 × 55 mm) and modular design make it an ideal choice for both base station and field use. The OPTIMA version includes the SPA-1 100 W RF power amplifier, which enables high power base station operation. In the field, up to 6 W (5 W in QRP mode) can be achieved with the included SBR-52LI 6400 mAh lithium-ion battery, or up to 10 W with an external 13.8 V power supply.

• The Yaesu FTX-1 provides continuous wide-range receiver coverage from 30kHz through 174MHz and from 400MHz through 470MHz including SWL, FM broadcast, and Air-band.
• The Yaesu FTX-1 FIELD and Yaesu FTX-1 OPTIMA shares the “Field Head” - a field compact transceiver (W8.4’’ H3.5’’ D2.2’’).
• Yaesu FTX-1 OPTIMA is supplied with a detachable 100W RF power amplifier - SPA-1 for a Base Station in addition to the SBR-52LI Li-ion battery for field operation.
• 9-hour stand-alone operating time with 6W on HF bands (SSB), and 8-hour operating time with 6W on V/UHF bands (FM) are available (6-6-48 duty cycle).
• The SBR-52LI is rechargeable separately with a third-party’s USB Type-C PD cable (45W or greater/ 15V 2A). When using an external 13.8V DC power supply, up to 10W of power output is available, and the Field Head charges the SBR-52LI automatically. By connecting the SPA-1 to the rear of the Field Head, the Yaesu FTX-1 operates as a 100W Base Station. No tools are necessary for connection.
• 100W Base Station Operation with external DC power supply. 6W (5W for QRP) Field Operation with the supplied Li-ion Battery. 10W Field Operation with external DC power supply.

The YAESU RF-Front End with Superb Interference Rejection

While the Yaesu FTX-1 is compact, it boasts excellent proximity two-signal characteristics thanks to a powerful RF Front-End design with 10-divided BPF (Band Pass Filter) In amateur bands from HF through UHF and RF amplifier with a low NF (Noise Figure) which is excellent in intermodulation characteristics. In addition, a high-purity 110.592MHz oscillator circuit configuration supplies a high-quality sampling clock signal with excellent C/N characteristics to the A/D converter.

Equipped with 3DSS (3-Dimensional Spectrum Stream) High-Resolution 4.3-inch TFT Color Touch Panel Display

The large 4.3-inch wide full-color touch panel display affords outstanding visibility and intuitive management of the operating frequency, meters and main function settings.

3DSS (3-Dimensional Spectrum Stream)

The 3DSS Real-time spectrum scope presents the constantly changing band conditions in three dimensions (3-D). The signal strength flows in time to the rear of the screen, then an operator can intuitively view the constant changes in a signal's strength. The frequency can also be instantly changed on the scope screen by touching the peak of desired signal.

3 Display Modes are switchable according to the User's preference and usage

With one-touch operation, the user can switch between 3 display modes to suit operation usage and preferences.

Various Functions support Comfortable Operation

• Various Functions support Comfortable Operation
• True Dual-Band Operation including C4FM/C4FM Simultaneous Receive
• QRP Mode to set output power to 5W and below
• Super-DX expands the Communication Range
• VFO Mode Indicator presents the current operation status at a glance
• Memory Channel Scope
• Micro SD Card Slot
• FUNC (Function) Dial useful to change and recall settings
• Versatile Array of functions for CW Operation
• "PRESET" mode suitable for FT8 operation
• C4FM Digital Technologies: Outstanding Audio Quality, AMS etc..
• Compatible with WIRES-X, APRS® Data Communication (Wires-X will be available from August 2025)
• Convenient Functions for FM Mode

Yaesu FTX-1 OPTIMA transceiver supplied accessories:

• Yaesu FTX-1 OPTIMA transceiver Field Head
• SPA-1 - 100W RF Power Amplifier

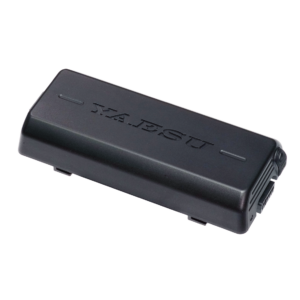

• Heavy-Duty DC Power Cable for SPA-1 (25A) DC Power Cable with 2p-round plug for Field Head SBR-52LI - 6400mAh Li-ion Battery
• SSM-75E Hand Microphone
