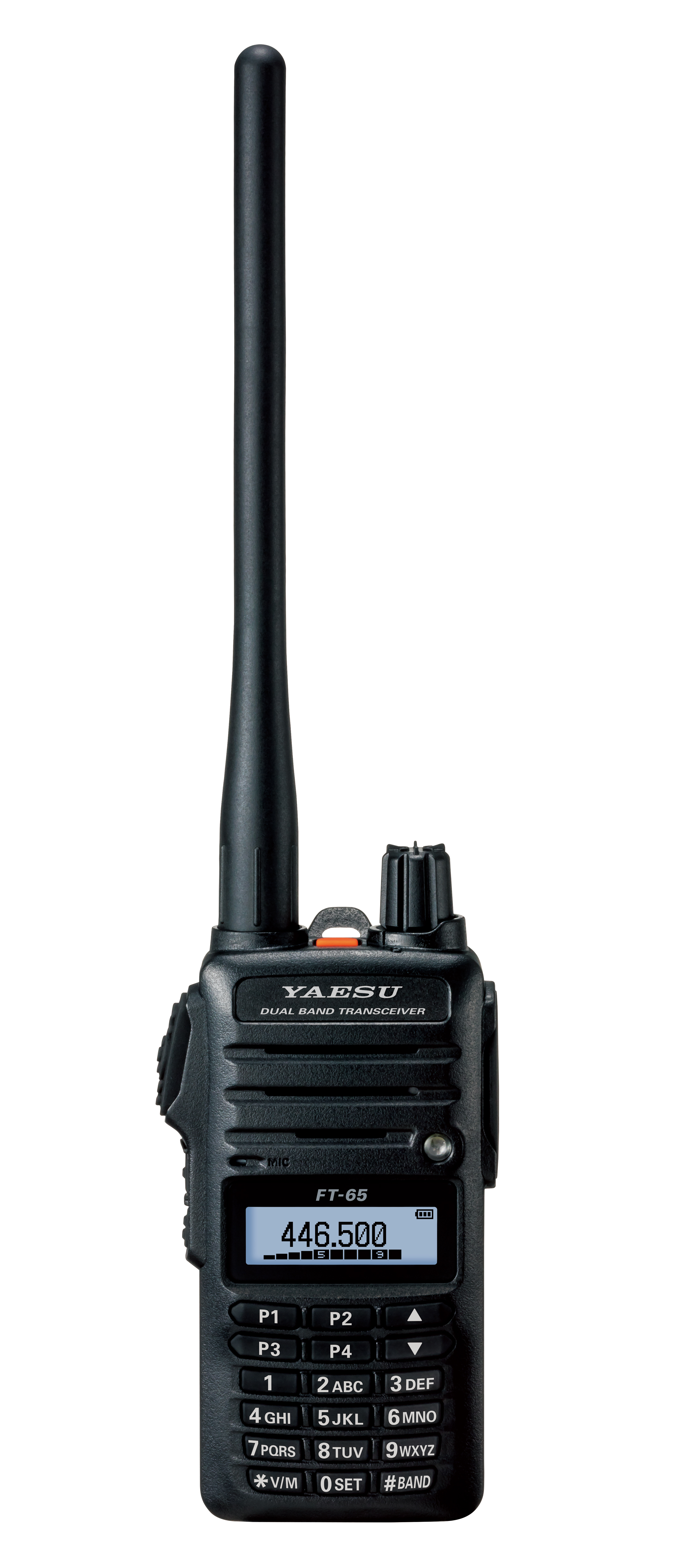

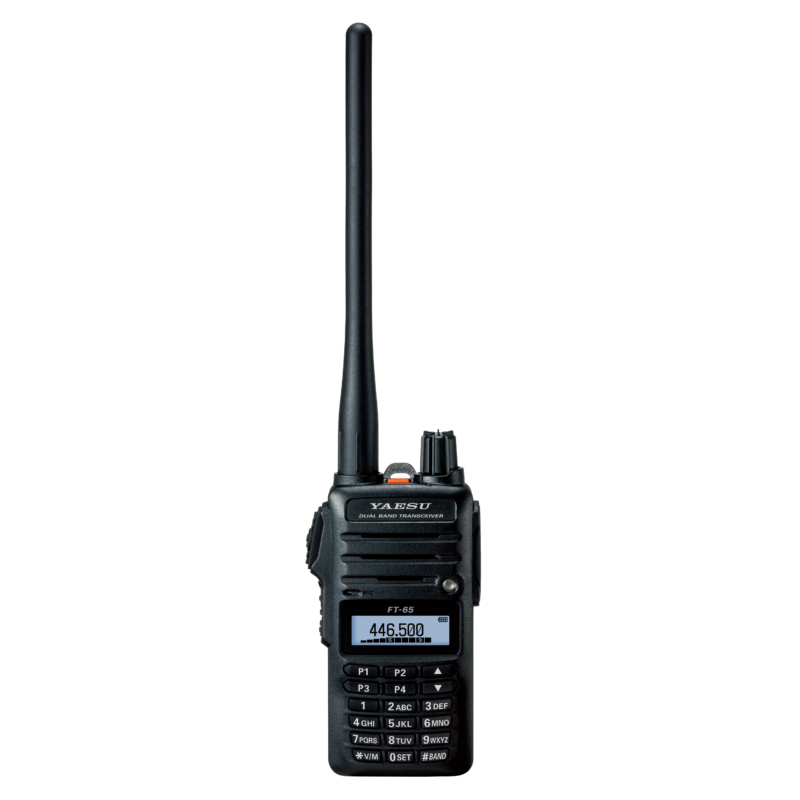

Yaesu FT-65E-B2 VHF/UHF DUAL BAND PORTABLE TRANSCEIVER
Click to enlarge
Yaesu FT-65 - VHF/UHF 2 Meter/70cm Dual Band FM Handheld Transceiver. The Yaesu FT-65 is a very compact, ruggedly constructed Handheld VHF/UHF with three selectable power settings 5W / 2.5W / .5W allowing each user to select the power they need. The big front speaker provides a full 1 watt of crisp, clear audio quality. The unit comes supplied with a 1950mAh Li-ion battery pack capable of over 9 hours of operation, with an optional higher capacity 2500mAh Li-ion battery for over 11.5 hours of operating time.
A 2.5 hour rapid charger comes standard, making the transceiver ready to operate at any time. Our newly designed large white LED displays are vibrant and highly visible. Four Quick Recall Keys (QRK) are user programmable to instantly recall favorite channels with just the push of a button.

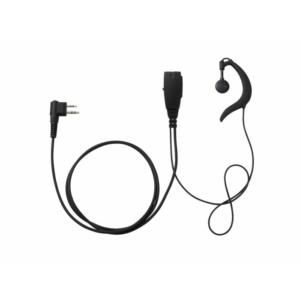

VOX operation is available with the optional Earpiece Microphone SSM-512B. Other useful features included: versatile scanning capabilities such as Programmable VFO Scan, Memory Scan, Priority Channel Scan, and Weather Alert Scan, WX Channels with "Severe Weather" Alert, PC Programming, Transceiver-to-Transceiver Cloning, FM Broadcast Receiver, Automatic Range Transponder System (ARTS), CTCSS/ DCS Operation, Busy Channel Lockout (BLCO), Automatic Power Off feature, and Transmitter Time Out Timer (TOT).
Yaesu FT-65 features:
Commercial Grade VHF / UHF
The Yaesu FT-65 is built to commercial grade standards, including the IP54 Rating for Dust and Water protection, and the MIL-810-C,D and E standards making this radio suitable for operation in the harshest of environments.
With 5 Watts of reliable RF output power this radio is sure to be heard. Never miss a call with One watt of Crisp, Clear Audio output from the oversized front panel speaker.
High Capacity Li-Ion battery

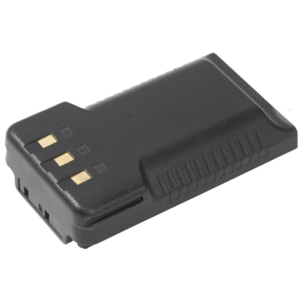

Packaged with a powerful 1950 mAh Li-Ion battery pack, giving the radio over 9 hours of operating time, or upgrade to the optional High-Capacity 2500 mAh Li-Ion battery pack for over 11.5 hours of extended operating time. To ensure minimal down time the Yaesu FT-65 also comes packaged with a 3.5-Hour Rapid charger.
QRK (Quick Recall Key)
Four Dedicated User programmable Keys serve as short cut keys to preferred menu options, or use the four dedicated recall keys to quickly and easily store and recall desired frequencies.
Versatile Scanning Capabilities
Programmable VFO Scan scans all channels in the desired frequency range, Memory scan allows scanning of user selectable frequencies, Priority Channel Scan can be used to scan memory channels while making one channel a priority. Weather Alert scan alerts the user when severe weather is approaching.
The Yaesu FT-65 is capable of being programmed directly from a PC making all of the advanced setup features a breeze using the optional software and SCU-35 programming cable.
More Advanced features
Tons of advanced features are loaded into this compact radio including: Transceiver to Transceiver cloning with the optional SCU-36 clone cable, FM Band receiver equipped, ARTS (Automatic Range Transponder System), DTMF operation, CTCSS/DCS operation, TOT (time out timer) and more.
Yaesu FT-65 box contains:

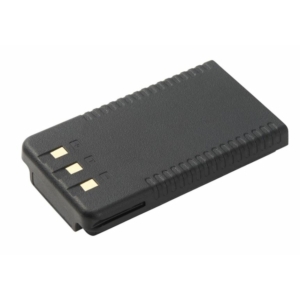

- SBR-25LI 7.4V, 1,950 mAh Rechargeable Li-Ion Battery Pack
- SAD-20 Adapter for European model

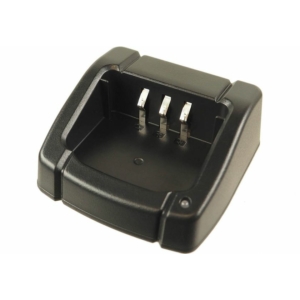

- SBH-22 Rapid Charger
- SHB-18 Belt Clip

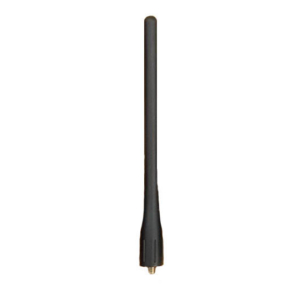

- SRA-15 Antenna
- Operating Manual
- Quick Manual
- Warranty Card
3 years warranty!
|Frequency||RX136-174 MHz 400-480 MHz TX144 - 148 (146) MHz 136-174 MHz(Asia) 430 -450 (440) MHz 400 -480 MHz (Asia)|
|FM Broadcast||65-108 MHz FM Broadcast 65-108 MHz|
|Channel steps||5/6.25/10/12.5/15/20/25/50/100 kHz|
|Frequency Stability||±5 ppm +14 °F to +140 Of (-10 oc Q +60 °C)|
|Emission Type||F2D, F3E|
|Antenna lmpedance||50 Ohms|
|Supply Voltage||Nominal:7.4 V DC, Negative Ground|
|Current Consumption||205 mA (Receive) 200 mW Output 100 mA (Standby, Saver Dfi)|
|18 mA (Standby, Saver Dn) 4 mA (Auto Power Off) 1.5 A(5 WTx, 144MHz) 7.4V DC|
|1.7 A (5 W Tx, 430 MHz) 7.4 V DC * FT-65 only|
|Operating Temperature||- 4 °F to + 14 °F (- 20 °C to + 60 °C)|
|Case Size||2.1" (W)x4.1" (H)x 1.2" (D) (52.5 x 104.5x31 mm) (w/o Knob and Antenna)|
|Weight||9.17 Dz (260 g) with SBR-25LI and Antenna|
|RF Power Output||5 W (High) / 2.5 W (Middle) / 0.5 W (Low) @7.4 V|
|Modulation Type||Variable Reactance|
|Maximum Deviation||±5.0 kHz|
|Spurious Emission||At least 60 dB down (@ High and Middle power) At least 40 dB down (@ Low power)|
|Microphone lmpedance||2 k Ohms|
|Sensitivity||0.2 µV tor 12 dB SINAD (140 - 150 MHz, NFM) 0.2 µV tor 12 dB SINAD (420 · 470 MHz, NFM) • FT-65 only|
|Selectivity||12 kHz / 35 kHz (-6 dB /-60 dB)|
|AF Output||MAX Power 1 W@16 Ohms, 0.8 W@ 16 Ohms tor 10 % THD|
A KÉSZÜLÉK MEGFELELŐEN MŰKÖDIK. ÜZEMKÉPES.ÜZEMBIZTOS.
AZ SCU -35-ÖS PROGRAMOZÓKÁBEL HIÁNYZIK. NINCS AZ ALAPKÉSZLETBEN. MINTAHOGYAN NINCSEN A KLÓNOZÓKÁBEL SEM.
- A KLÓNOZÓKÁBEL RENDELHETŐ, A PROGRAMOZÓKÁBEL, ÉS A PROGRAMOZÓSZOFTVER VALAMIÉRT NINCS, NEM TALÁLTAM, A RENDELHETŐ TARTOZÉKOK KÖZÖTT.
- A PROGRAMOZÓKÁBEL, ÉS A PROGRAMOZÓSZOFTVER ,SCU 35 SZÜKSÉGES. DE NINCS VA RENDELHETŐ OPCIONÁLIS TARTOZÉKOK KÖZÖTT.
- CSAK A KLÓNOZÓKÁBEL VAN FÖLTÜNTETVE, SZEREPELTETVE, AZ SCU 36, A RENDELHETŐ OPCIONÁLIS TARTOZÉKOK KÖZÖTT.
- AZ SCU 35 PROGRAMOZÓKÁBELT, ÉS A PROGRAMOZÓSZOFTVERT IS IDEJE LENNE FÖLTENNI, A RENDELHETŐ OPCIONÁLIS TERMÉKEK KÖZÉ.
Igazi japán minőség☺. Egy dolgot hiányolok, a PMR frekvenciákat. Remélem a Yaesu ezt hamarosan orvosolni fogja.
