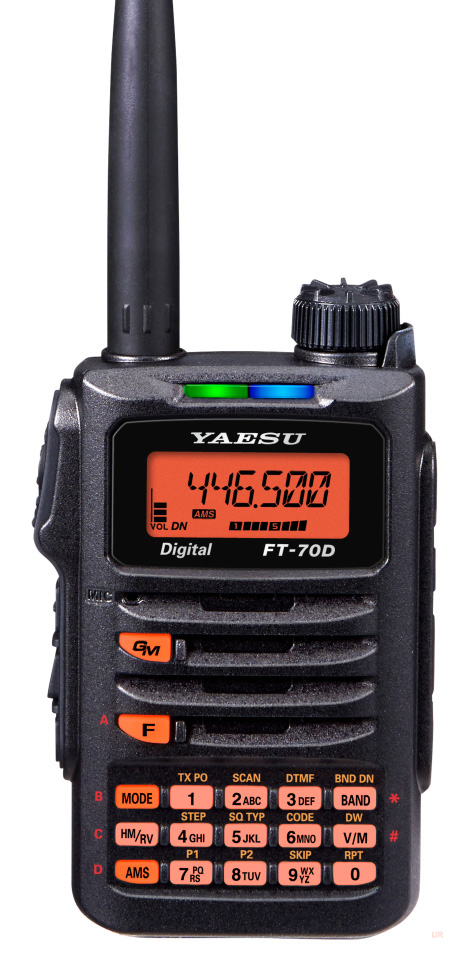

Yaesu FT-70DE C4FM FDMA / FM 144/430 MHz Dual Band Handheld Transceiver

Click to enlarge
Price:
184.06 EUR (153.38 EUR + VAT)
Model: FT-70DE
Availability: On stock
Average Rating: 5 out of 5 Stars! (10)
Manufacturer: Yaesu
Please choose the language of the owner's manual:
Owner's manual:
Qty:pieces

Description

Yaesu FT-70DE C4FM FDMA / FM 144/430 MHz Dual Band 5W Handheld Transceiver. The new Yaesu FT-70DE is a compact and very attractively priced YAESU System Fusion transceiver providing both conventional analog FM operation and the advanced C4FM Digital mode. The Yaesu FT-70DE provides up to 5W of reliable RF power, and its large Front Speaker delivers 700mW of Loud Audio Output. Because C4FM has better BER (Bit Error Rate) characteristics than other digital modulations, the user can expect exceptional audio quality.

The new digital Yaesu FT-70DE includes our unique Automatic Mode Select (AMS) function. AMS detects the operating mode of the received signal as C4FM digital or analog FM, and then automatically and instantly switches the receiver to the appropriate mode. Users do not need to manually change between modes. The multi-colored LED Mode-Indicator displayed on the front allows the operator to easily see what mode the Yaesu FT-70DE is in at any given moment.

LED Mode-Indicator clearly and visibly shows the transmit/ receive mode by changing its color so that the operating mode of the transceiver is easily recognized at a glance. One of the other distinguishing features of the Yaesu FT-70DE is Digital Group Monitor (GM) with DG-ID and DP-ID. DGID (Digital Group Identification) and DP-ID (Digital Personal Identification) are useful features now included in the Yaesu FT-70DE, to simplify the GM operation.

Simply put, the transceivers selecting the same DG-ID or DP-ID can communicate with each other. Between 00 and 99 DG-ID and DP-ID are selectable which provides loads of flexibility so that users can enjoy group communication with friends in GM mode in accordance to their individual operational needs.

Yaesu FT-70D features:

Commercial Grade VHF / UHF

The Yaesu FT-70DE is built to commercial grade standards, including the IP54 Rating for Dust and Water protection, and the MIL-810-C,D and E standards making this radio suitable for operation in the harshest of environments.

Wide band receive coverage

108 MHz - 580 MHz (B Band), continuous reception for short-wave, FM/AM broadcasts, aircraft, public service channels, etc.

Versatile Scanning Capabilities

Programmable VFO Scan, scans all channels in the desired frequency range, Memory scan allows scanning of user selectable frequencies, Priority Channel Scan can be used to scan memory channels while making one channel a priority. Weather Alert scan alerts the user when severe weather is approaching.

Automatic Mode Select (AMS)

The Automatic Mode Select function detects the receive signal mode. The transceiver automatically selects one of the four communication modes according to the signal received. This is extremely convenient when listening for communications, as you do not need to be aware of the other party’s communication mode. The transceiver can also be operated in a fixed communication mode.

More Advanced Features

Other advanced features include: External DC Jack for DC Supply Operation and to Charge the Battery, Mini USB port for convenient programming and software updates, CTCSS/ DCS Operation, Automatic Power Off (APO) feature, RF Squelch, Transmitter Time Out Timer (TOT) and Busy Channel Lock-Out (BCLO).

Yaesu FT-70D box contains:

  • SBR-24LI battery
  • SAD-11 battery charger
  • antenna
  • belt clip
  • USB cable
  • Operating Manual
  • Warranty card

3 years warranty!

Radio amateur transceivers can only transmit within amateur bands in factory default settings. Frequency extension is extra cost. See the related products!

Frequency Ranges Rx:108-137 MHz (air band), 137-174MHz(144 MHz HAM), 174-222 MHz(VHF1), 222 -420 MHz (VHF2), 420-470 MHz (430 MHz HAM), 470-579.995 MHz (UHF) TX 144-148MHz, 430-450MHz
Channel steps 5, 6.25, 8.33, 10, 12.5, 15, 20, 25, 50, 100 kHz
Frequency Stabilily ±2.5 ppm (-4°F to + 140°F, -20° C to + 60° C)
Emission Type F2D, F3E, F7W
Supply Voltage Nominal 7.4 V DC (SBR-24LI) Operating 6-14V Negative Ground, 11-16V Negative Ground (EXT DC Jack)
Current consumption 180mA (Receive Vol.16) 120 mA (Standby, saver off) 1.6 A (TX 144 MH z5 W) 1.9 A (TX 430 MHz 5 W)
Operating Temperature -4 F to + 140°F, -20° C 10 + 60° C
Case Size (WxHxO) 2.36" x 3.86' x 1.30" (60 x 98 x 33 mm)
Weight 8.99 oz (255 g) with SBR-24LI & antenna
RF Power Output 5.0 W (High) @ 7.4 V:SBR-24LI 2 W (Middle) @ 7.4 V:SBR-24LI 0.5 W (Low) @ 7.4 V:SBR-24LI
Spurious Emission At least 60 dB down (@ TX power high/middle) At least 40 dB down (@ TX power Low)
Microphone lmpedance 2k
Circuit Type Double-Conversion Superheterodyne
lntermediate Frequencies 1st:47.25MHz 2nd:450kHz
Sensitivity 1.5 µV TYP for 10 dB SN (108 - 137 MHz, AM) 0.16 µV tor 12 dB SINAD (137 - 174 MHz, NFM) 1µV tor 12 dB SINAD (174 - 222 MHz, NFM) 0.5 µV for 12 dB SINAD (300 - 350 MHz, NFM) 0.2 µV tor 12 dB SINAD (350 - 400 MHz, NFM) 0.18 µV tor 12 dB SINAD (400 - 470 MHz, NFM) 0.35 µV for 12 dB SINAD (470 - 579.995 MHz, NFM) 0.19 µV TYP for BER 1% (Digital mode @Ham Band)
Selectivity 12 kHz / 35 kHz (-6 dB /-60 dB)
AF Output 700 mW @ 10 % THD:lnternal speaker 300 mW @ 10 % THD:External speaker
AF Output lmpedance 8
