Yaesu FT5DE digital C4FM dual band handheld radio

Yaesu
458.70 EUR (385.46 EUR + VAT)
Qty:pieces
Model: FT-5DE
Availability: Back Order
Not Rated
For EU private customers:
VAT is recalculated to your local VAT, when you add your country through checkout menu.
Companies with EU VAT number:
We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!
For NON EU customers:
Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.
Product variations:
Owner's manual (in digital format):
458.70 EUR (385.46 EUR + VAT)
Qty:pieces
Please select the accessory products you would like to add to the cart!

Description

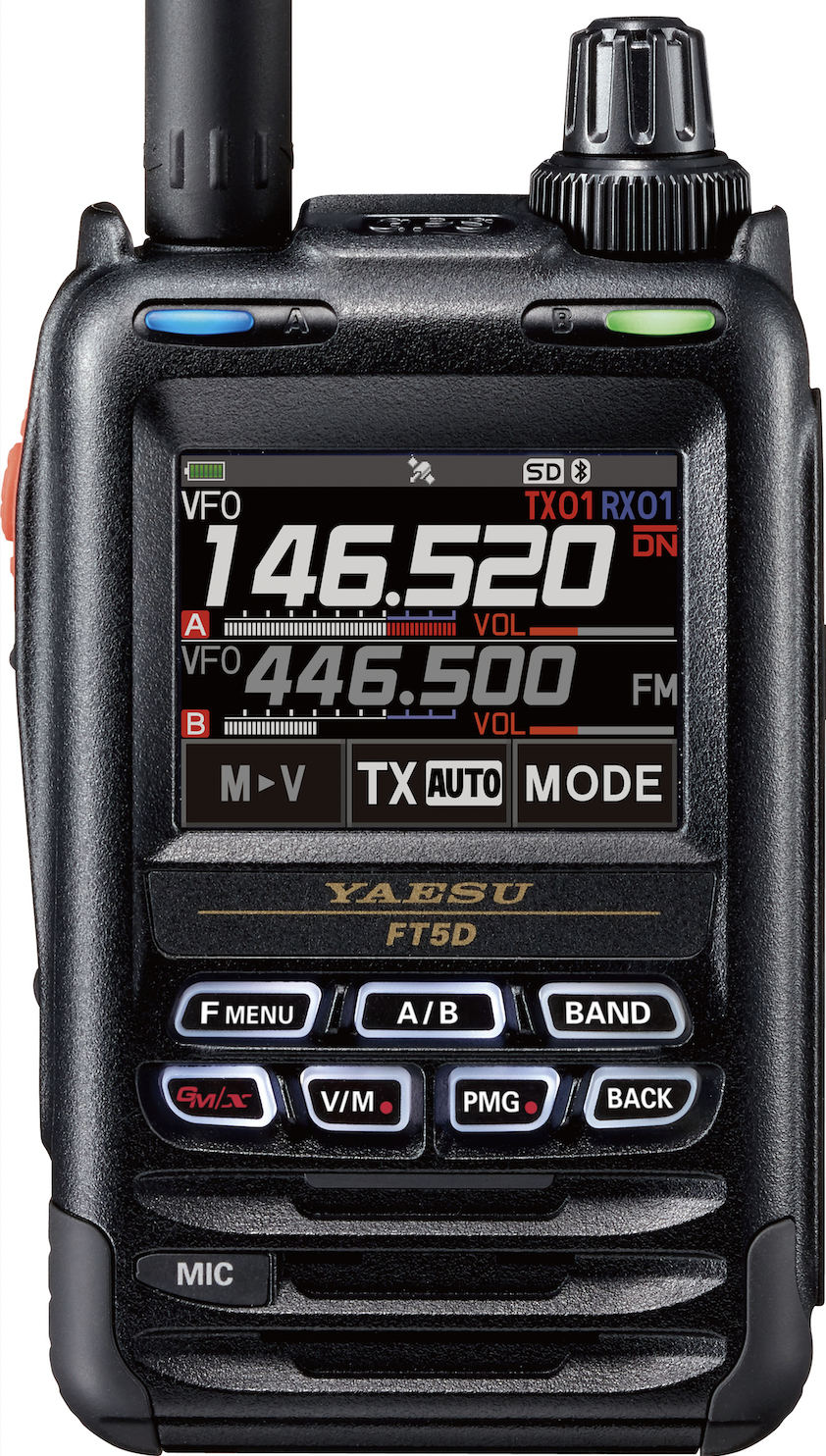

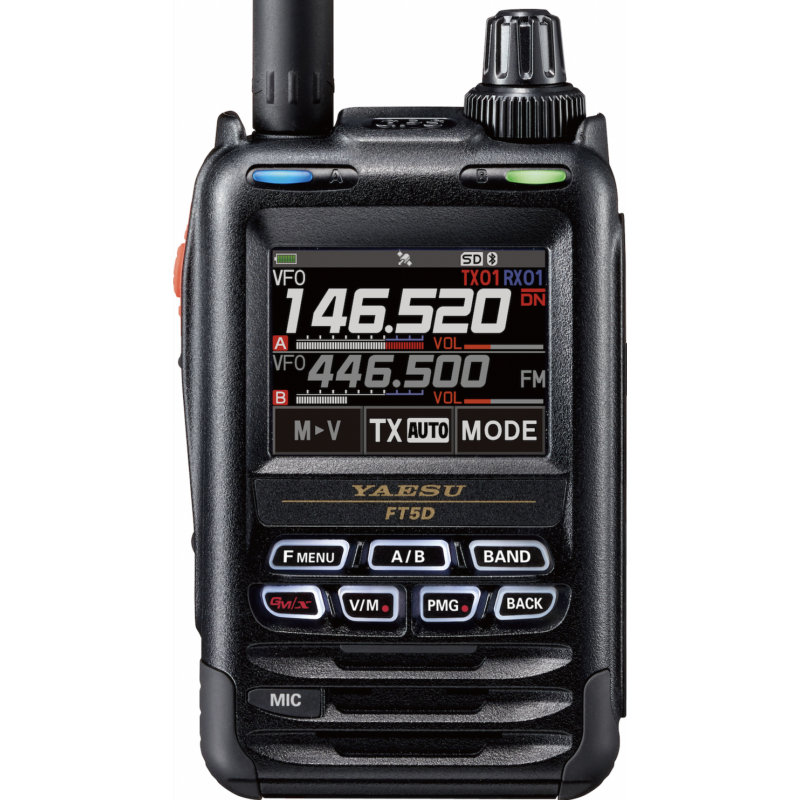

The new Yaesu FT5DE is a full-featured C4FM handheld transceiver with superior operability and new sophisticated functions.

Even in a compact body (W2.44” x D1.34” x H3.94”), the FT5DE provides reliable 5W RF power output and achieves loud 1W audio power that has been tuned for quality audio. Real Dual Band Operations (V+V, U+U, V+U, U+V) are available with two independent receivers. Large individual LED indicators for A band and B band present the status and communication modes (C4FM or Analog) of each band instantly. The new FT5DE supports simultaneous C4FM digital (C4FM/C4FM standby).

With rubber protection on the corner of the main body, the Yaesu FT5DE has rugged and shock-resistant construction. The waterproof rating is IPX7. The comfortable size and form of the full-flat back body provides excellent grasp for the radio operator.

A high-resolution display highlights the frequency of the operational band. The color of the operating band frequency can be selected from white, blue or red. Three (3) touch panel keys and seven (7) operation keys below the display offer intuitive operability.

The new TOUCH & GO operation is convenient in order to immediately start the communications on an often-used frequency. By pressing and holding the “PMG” key, the frequency of the current display is registered into Primary Memory Group.  After registration, pressing the “PMG” key will display the receive status of the registered frequencies as bars on   a graph (activity monitor). By simply touching the displayed bar, the user can instantly recall that frequency. (TOUCH &  GO Operation)

Band Scope function monitors in real time, up to 79 displayed channels that are centered around the current VFO frequency. The center frequency can be tuned by the dial knob or by touching and moving the frequency of a displayed channel bar.

The C4FM digital communication features which are already popular in the market, such as: Automatic Mode Select (AMS)Digital Group ID (DG-ID) operation, and Smart Navigation function are available with the new Yaesu FT5DE.

The Yaesu FT5DE supports the WiRES-X Portable Digital Node Function as well. A portable digital node can be easily set up with the new FT5DE, an internet connected laptop PC, and the optional SCU-39 cable kit.

New Quick Release Holster (SHB-26) is included in the FT5DE package as a supplied accessory that allows single-touch attaching and detaching the transceiver while wearing the holster on a belt.

Yaesu FT5DE digital C4FM dual band handheld radio additional features are:

  • Wireless hands-free operation using the optional Bluetooth® headset (SSM-BT10)
  • VOX function
  • Memory Auto Grouping (MAG)
  • VFO Band Skip Function
  • Wide-range RX coverage with continuous reception from 0.5MHz–999.99MHz (A Band) & 108MHz–580MHz (B Band)
  • Built-in high-sensitivity 66 channel GPS receiver 1200/9600bps
  • APRS Data modem
  • 2200mAh High-Capacity Li-ion Battery Pack (SBR-14LI) as standard
  • Voice Recording Function
  • Simultaneous AM/FM broadcast Reception while monitoring two frequency channel
  • Micro SD Card Slot
  • lntuitive and Smooth Operation provided by the Touch Panel Display
  • C4FM/C4FM Simultaneous Monitoring
  • Rugged Construction, IPX7  Waterproof
  • Wide-band Reception
  • 79 channel Band scope
  • Recording Function
  • Snapshot Feature (Transmit & Receive lmage data)
  • Number of Memories: 1000
  • Supported Bands: 2m 70cm
  • Connector: SMA socket

Yaesu FT5DE digital C4FM dual band handheld radio box contains:

  • 1 pce Yaesu FT-5DE
  • 1 pce Dual band antenna
  • 1 pce SBR-14LI LiIon battery 2200mAh

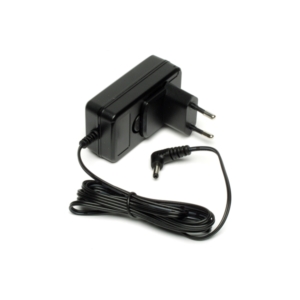

  • 1 pce SAD-25 Charger
  • 1 pce SHB-13 Belt clip
  • 1 pce SHB-26 Quick Release Holster
  • 1 pce USB cable
  • 1 pce Manual

The factory default setting for amateur transmitters does not cover transmission outside the amateur bands.

Yaesu FT5DE transceiver technical specifications:

Frequency Ranges
A Band RX 0.5 - 1.8MHz (AM Radio) 1.8 - 30MHz (SW Radio) 30 - 76 (88 ) MHz 76 (88 ) - 108MHz (FM Radio) 108 - 137MHz (Air Band) 137 -174MHz (144 MHz HAM) 174-222 MHz 222 -420 MHz 420 -470 MHz (430 MHz HAM) 470-800 MHz 800 -999.99 MHz
B Band RX 108 -137MHz (Air Band) 137 -174MHz (144 MHz HAM) 174-222MHz 222 -420MHz 420 - 470MHz (430 MHz HAM) 470-SBOMHz
TX 144-148MHz or 144-146MHz (Depends on the transceiver version) 430 -450MHz or 430 -440MHz (Depends on the transceiver version)
Channel Steps 5, 6.25, 8.33, 9, 10, 12.5, 15, 20, 25, 50, 1OOkHz (8.33kHz:only for Air band, 9kHz:only for AM Radio)
Frequency Stability ±2.5ppm -4°F to + 140"F (-20°C to +60°C)
Emission Type F1D, F2D, F3E, F7W

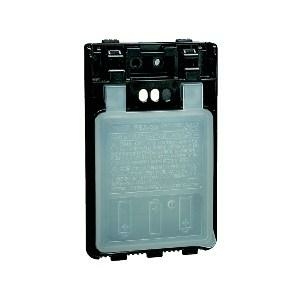

Supply Voltage Nominal:7.2V DC, Negative Ground SBR-14U, 7.4V DC, Negative Ground FNB-101 LI 10.5 - 16V DC, Negative Ground (EXT DC JACK) Operating:5.5 - 8.4V DC, Negative Ground (Li-ion Battery) 4 -16V DC, Negative Ground (EXT DC JACK) 10.5 -16V DC, Negative Ground (EXT DC:tor Charging) 3.6-4.5V DC, Negative Ground (With FBA-39)
Current Consumption 180mA (Mono band Receive) 220mA (Dual band Receive) 11OmA (Mono band Receive, Standby) 145mA (Dual band Receive, Standby) 74mA (Mono band Receive, Standby, Saver on "Save Ratio 1:10") 74mA (Dual band Receive, Standby, Saver on "Save Ratio 1:10") + 15mA (GPS On) + 3mA(Digital) 125mA (AM/FM Radio) 600ua (Auto Power off) 1.6A (5W TX, 144MHz 7.4V DC) 1.9A (5W TX, 430MHz 7.4VDC)
Operating Temperature -20°C to +60°C
Case Size 62 x 100 x34 mm (w/SBR-14LI, w/o knob, antenna, & belt clip)
Weight (Approx.) 282g w/SBA-14LI, antenna
Transmitter
RF Power Output 5W / 2.5W / 1W / 0.3W (@ Li-ion Battery or EXT DC) 0.9W / 0.3W (@ FBA-39)
Modulation Type F1 D, F2D, F3E:Variable Reactance modulation F7W:4fSK (C4FM)
Spurious Emission At least 60dB below (@TX Power Hi, L3) At least 50dB below (@TX Power L2, L 1)
Receiver
Circuit Type AM,NFM:Double-Conversion Super heterodyne, AM/FM Radio:Direct-Conversion lntermediate
Frequencies 1 st:58.05MHz (AM, NFM A Band) 1st:57.15MHz(AM, NFM B Band) 2nd:450kHz (AM, NFM)
Selectivity NFM, AM 12kHz / 35 kHz (-6dB / -60dB)
AF Output 1000mW (8ohm for 10 % THD) lnternal Speaker 500mW (8 ohm for 10 % THD) External Speaker Jack
