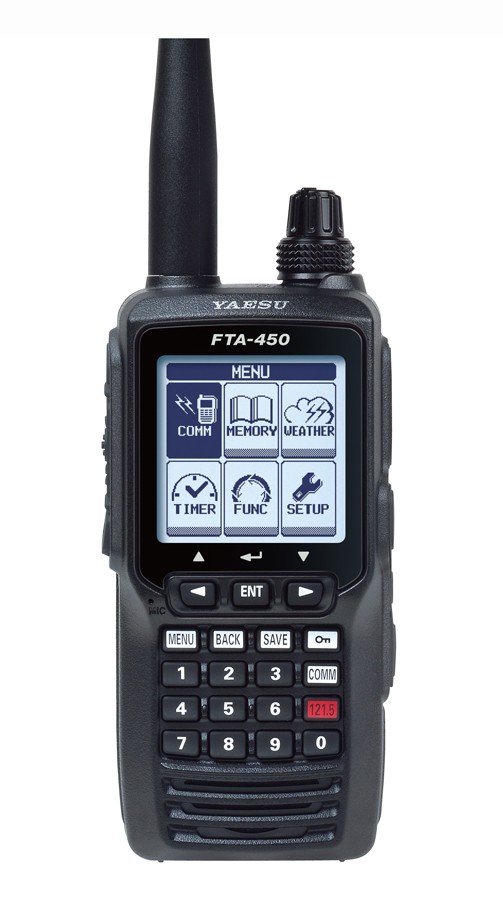

Yaesu FTA-450L AIRBAND HANDHELD RADIO

Click to enlarge
Price:
279.08 EUR (232.56 EUR + VAT)
Model: XAA001N025-1E
Availability: On stock
Average Rating: 4 out of 5 Stars! (1)
Manufacturer: Yaesu
Product variations:
Owner's manual:
Qty:pieces

Description

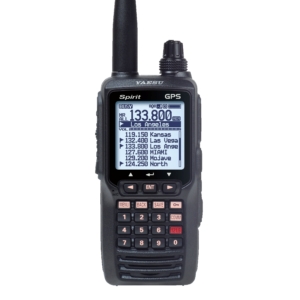

The Yaesu FTA-450L is a competitively priced (communication ONLY) version of the wildly successful Yaesu FTA-550L and FTA-750L. Featuring the same Easy To Operate icon driven menu system, on a large 1.7" x 1.7" Full Dot Matrix Display. The same Loud 800mW internal audio speaker guarantees calls will not be missed. 8.33 kHz Narrow Band compatible, with a programmable 200 channel memory bank, means all favorite channels can be easily stored and retreived with just a few button presses. Valued packaged with all the necessary accessories, including 110VAC and 12VDC chargers, headset adapter, Alkaline battery tray, Belt Clip, USB programming cable, and a large capacity 1800mAh Li-Ion rechargeable battery.

Yaesu FTA-450L airband radio features:

Easy to Operate Menu System

The Yaesu FTA-450 comes configured with an easy to operate icon driven menu system. The displays and menu settings are logically configured for a more intuitive user interface.

Huge Dot Matrix Display (160 x 160 dots)

The Yaesu FTA-450 features a huge 1.7" x 1.7" full dot matrix LCD display with full backlight and dimmer. The high resolution display makes it easier to view all the great features the Yaesu FTA-450 has to offer.

200 Memory channels with up to 15 Alphanumeric characters

The Yaesu FTA-450 can store up to 200 Memory channels for quick and easy retrieval. With the capability of using up to 15 Alphanumeric characters per name the Yaesu FTA-450 allows for a better channel description.

Yaesu FTA-450L airband radio box contains:

  • FTA-450L radio
  • SBR-12LI 1800 mAh battery
  • SAD-11/SAD-25 AC charger adapter
  • SBH-11 charger cradle
  • SDD-12 car charger
  • SRA-13A antenna
  • SHB-11 belt clip
  • SCU-15 headset adapter cable

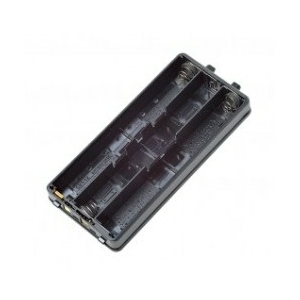

  • SBT-12 battery tray
  • USB cable

3 years warranty!

Yaesu FTA-450L airband radio specifications:

General
Frequency Range TX:118.000 to 136.975 MHz, RX:118.000 to 136.975 MHz, 161.650 to 163.275 MHz (Weather Channels; USA/Canada only)
Channel Spacing 25 kHz/8.33 kHz
Emission Type TX:AM, RX:AM & FM (FM:for receiving the Weather Channels)
Supply Voltage 6.0 to 9.5 VDC
Current Consumption (approx.) 300 μA (power off), 70 mA (battery saver on, saver ratio 50%), 80 mA (squelch on), 300 mA (receive), 0.9 A (transmit 1.5 W Carrier)
Temperature Range +14 ºF to + 140 ºF (–10 ºC to +60 ºC)
Case Size (W x H x D) 2.4 x 5.2 x 1.3 inches (62 x 133 x 34 mm) with SBR-12LI
Weight (approx.) 14.5 oz (410 g) with SBR-12LI, antenna and belt clip
Receiver
Circuit Type Double-conversion superheterodyne
IFs 47.25 MHz & 450 kHz
Sensitivity Better than 0.8 μV (for 6 dB S/N with 1 kHz, 30 % modulation)
Selectivity >8 kHz/–6 dB
Adjacent CH. Selectivity <25 kHz/–60 dB
AF Output (@7.4 V) 0.8 W @ 16 Ohms, 10 % THD
Transmitter
Power Output (@ 7.4 V) 5.0 W (PEP), 1.5 W (Carrier Power)
Frequency Stability Better than ±1 ppm (+14 ºF to + 140 ºF [–10 ºC to +60 ºC])
Modulation System Low Level Amplitude Modulation
Spurious Emission >70 dB below carrier
Int. Microphone Type Condenser
Ext. Mic. Impedance 150 Ohms
Specifications are subject to change without notice or obligation.

Attached documents

Reviews

4.00
1 rating
5
(0)
4
(1)
3
(0)
2
(0)
1
(0)
Write a review!
| 4 out of 5 Stars!
04/07/2018
90 % foarte buna.ceilalti 10% un mare minus antena care n-are un sistem bun de prindere.
