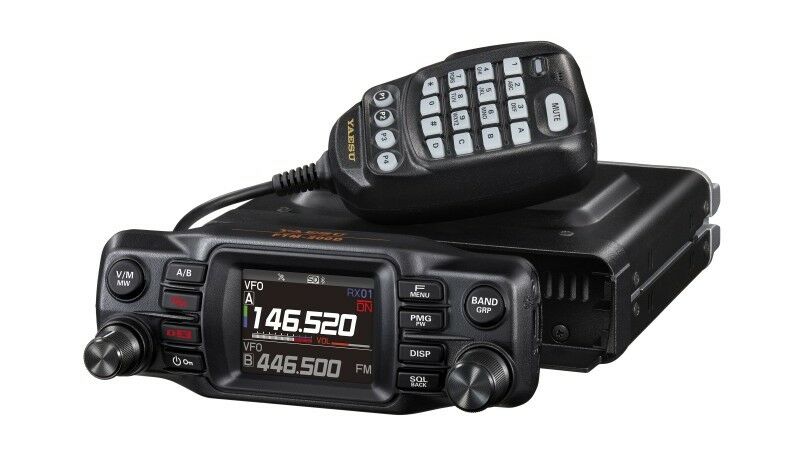

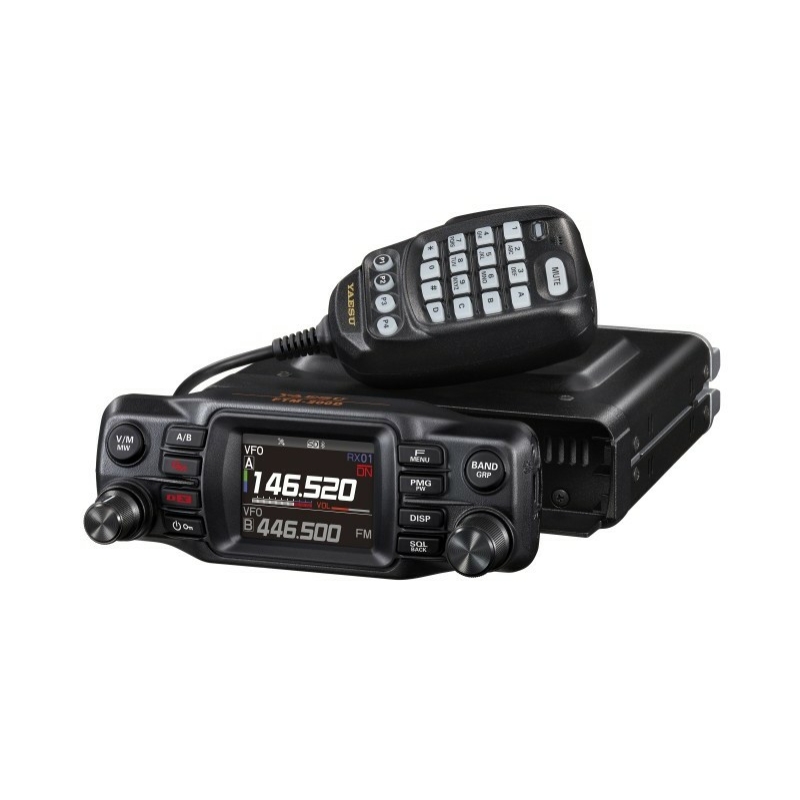

Yaesu FTM-200DE C4FM/FM VHF/UHF 50W dual band mobile transceiver

Yaesu
Model: XAH061M304
Availability: Back Order
Not Rated
For EU private customers:
VAT is recalculated to your local VAT, when you add your country through checkout menu.
Companies with EU VAT number:
We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!
For NON EU customers:
We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.
Product variations:
Owner's manual (in digital format):
365.86 EUR (307.44 EUR + VAT)
Qty:piece

Description

The new Yaesu FTM-200 is a C4FM Digital multi-functional transceiver with a single receiver. The Yaesu FTM-200 delivers reliable and stable 50W transmit performance. The speaker delivers 3W of clear and crisp receive audio which has been specifically tuned for radio communication. 2-inch Full-color display provides high visibility and highlights the frequency of the operating band with selectable color – White, Blue or Red. Front panel of the Yaesu FTM-200 is detachable and can be mounted at the most desirable operating position. The new FTM-200 supports optional Bluetooth® wireless operation using the SSM-BT10 Headset.

The Yaesu FTM-200DE mobile transceiver offers dual-band operation with one receiver. The display shows two frequencies, the first frequency is the receive frequency and the second is the dual monitoring frequency. More than 1100 storage locations help you organize the most popular frequencies so they are always quickly at hand. The receiver operates continuously between 108 and 1000 MHz, allowing for airband (AM) or maritime (FM) receptio

The transmitter uses robust power amplifier modules that provide a maximum transmitter power of 50 W in each band. Of course, the transmitter power can be reduced. Thanks to the design with directional air cooling, operation between -20 °C and +60 °C is possible.

In order to use the standard navigation functions and positioning data in the C4FM, the Yaesu FTM-200DE has a built-in GPS receiver with 66 channels. An external GPS receiver can be connected as an option. This allows you to use the usual functions such as remote station direction and distance display, tracking, and many more.

Other features known from C4FM technology, such as Digi Group ID and Digital Group Monitor, are also supported by the Yaesu FTM-200DE. Of course, the FTM-200DE can also be part of the Wires-X system. Connectors for the optional HRI-200 interface are available.

All settings and stored frequencies can be saved to an optional microSD memory card with a capacity of up to 32 GB. Voice Recording also uses the memory card. Power supply is 13.8 V / 11 A from an AC adapter, but can also be used on expedition from a battery.

Yaesu FTM-200DE transceiver main features:

- High-speed Band Scope (shows up to 61 channel reception status centered on the current VFO frequency, or up to 21 channel reception status in memory mode)

- Dual band 2 m / 70 cm (1 receiver)

- 50 W transmitter power

- Wide reception coverage from 108MHz to 999.995MHz

- Optional Bluetooth function

- C4FM digital and FM analogue auto switching

- More than 1100 memory channels

- High accuracy 66 channel GPS receiver

- 1200/9600bps APRS® data communication

- VOX function

- Recording function

- Snapshot function (MH-85A11U with snapshot camera)

- microSD card slot

Yaesu FTM-200DE transceiver package contents

- 1 piece FTM-200DE transceiver

- 1 piece DTMF microphone SSM-85D

- 1 piece main console bracket

- 1 piece Bracket control unit

- 1 piece Short cable to the control unit

- 1 piece long cable (3 m) to the control unit

- 1 piece USB cable

- 1 piece DC cable with fuses

- 1 piece Manual

The factory default setting for amateur transceivers does not cover transmission outside the amateur bands. Frequency extension must be ordered separately!

What is the difference between Yaesu FTM-200 and FTM-300 mobile radios?

Both FTM-200D and FTM-300D are Dual Band, however, the FTM-200D comes with a single receiver, meanwhile, the FTM-300D has two receivers which allow for real-time RX operations on any band. Therefore, the FTM-200D can receive only one frequency at the time.

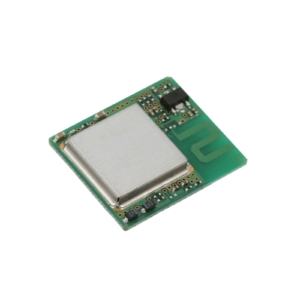

The frequency coverage is the same RX/TX between the two models but the sensitivity changes in certain frequency ranges. Furthermore, the FTM-300D comes with built-in Bluetooth Module, meanwhile the FTM-200D has it as an option (BU-4).

Design-wise, the FTM-200D has slimmer front panel which allows for easier installation on vehicles.

Yaesu FTM-200DE transceiver specifications:

Frequency Range TX 144 - 148MHz or 144 - 146MHz, 430 - 450MHz or 430 - 440MHz, (Depends on the transceiver version),:RX 108 - 137MHz (AIR Band), 137 - 174MHz, 144MHz HAM / VHF Band), 174 - 400MHz (GEN), 400 - 480MHz (430MHz HAM / UHF Band), 480 - 999.99MHz (GEN) (USA Cellular Blocked),
Channel Steps 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100kHz, (8.33kHz:only for Air band)
Mode of Emission F1D, F2D, F3E, F7W
Frequency Stability ± 2.5ppm (-4°F to +140°F [-20°C to +60°C])
Antenna Impedance 50Ω
Supply Voltage Nominal 13.8V DC, negative ground
Current Consumption (approx.) 0.5 A (Receive), 11 A (50W TX, 144MHz), 11 A (50W TX, 430MHz)
Operating Temperature Range -4°F to +140°F [-20°C to +60°C]
Case Size (W x H x D) Radio unit 5.47" x 1.66" x 5.2" (139 x 42 x 132 mm) (w/o Fan), Controller 5.47" x 2.09" x 0.7" (139 x 53 x 18mm) (w/o Knob)
Weight (approx.) 2.43lbs (1.1kg) (with Radio Unit, Controller, Control Cable)
Transmitter
RF Power Output 50W / 25W / 5W
Modulation Type F1D, F2D, F3E:Variable Reactance Modulation, F7W:4FSK(C4FM)
Maximum Deviation ±5kHz
Spurious Emission At least 60dB below
Microphone Impedance 2kΩ
DATA Jack Impedance 10kΩ
Receiver
Circuit Type Double-Conversion Super heterodyne
Intermediate Frequency 1st:58.05MHz, 2nd:450kHz
Sensitivity 0.8μV TYP for 10dB SN (108 - 137MHz, @AM), 0.2μV for 12dB SINAD (137 - 140MHz, @FM), 0.2μV for 12dB SINAD (140 - 150MHz, @FM), 0.25μV for 12dB SINAD, 150 - 174MHz, @FM), 0.3μV TYP for 12dB SINAD (174 - 222MHz,@FM), 0.25μV TYP for 12dB SINAD (222 - 300MHz, @FM), 0.8μV TYP for 10dB SN (300 - 336MHz, @AM), 0.25μV for 12dB SINAD (336 - 420MHz,@FM), 0.2μV for 12dB SINAD (420 - 470MHz, @FM), 0.2μV for 12dB SINAD (470 - 540MHz, @FM), 0.8μV for 12dB SINAD (540 - 800MHz, @FM), 0.4μV TYP for 12dB SINAD (800 - 900MHz, @FM), 0.8μV TYP for 12dB SINAD (900 - 999.99MHz, @FM), 0.19μV TYP for BER 1% (Digital Mode), Cellular Blocked (USA only)
AF Output 3W (8Ω, THD10%, 13.8V) Internal Speaker, 3W (8Ω, THD10%, 13.8V) External Speaker
AF Output Impedance
Strength of secondary radio waves 4 nW and below
Bluetooth (Optional BU-4)
Version Version 4.2
Class Class 2
Output Power 2dBm
Specifications are subject to change without notice, and are guaranteed within the 144/430MHz amateur bands only.
