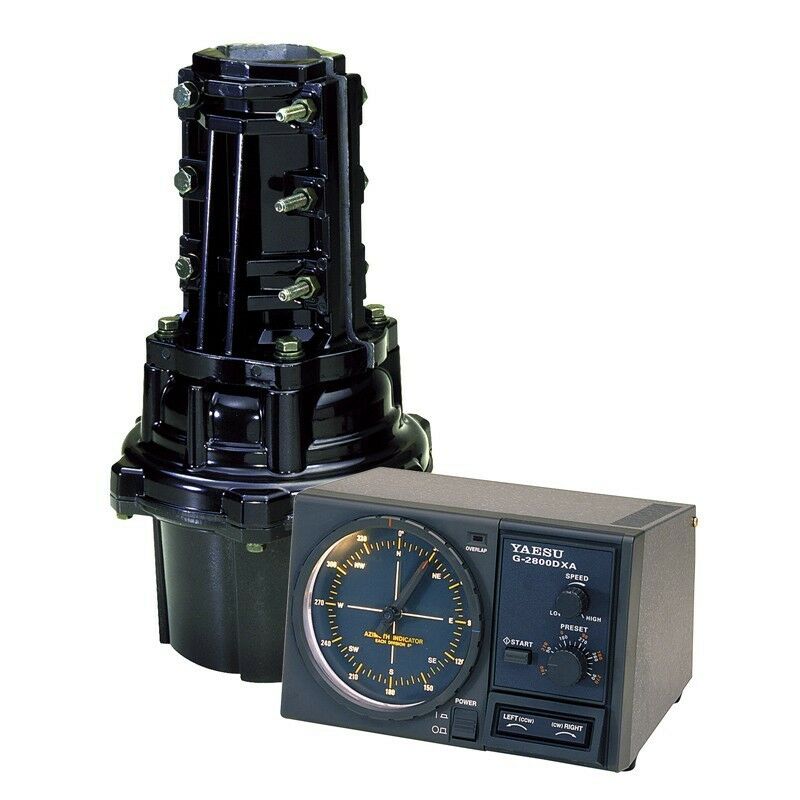

Yaesu G-2800DXC ROTATOR

Yaesu
1,285.25 EUR (1,080.05 EUR + VAT)
Qty:pieces
Model: AAA67X007
Availability: On stock
Not Rated
1,285.25 EUR (1,080.05 EUR + VAT)
Qty:pieces

Description

Yaesu G-2800DXC ROTATOR WITH CONNECTOR AND WIUTHOUT CABLE.

Power Supply Voltage:

117 VAC, 50-60 Hz

Power Supply Current Consumption:

1.5 Amps

Rotor Voltage:

11-24 VDC

Cable Conductors Required:

6

360° Rotation Time (Non Loaded):

120 ą10 seconds

0

50 ą5 sec (Variable)

Rotation Range:

450° ą 3°

Rotation Torque:

800 to 2,500 kgf-cm

Braking Torque:

25,000 kgf-cm

Maximum Vertical Load:

300 kg or less (continuous)

Weight

1,200 kg (momentary)

Mast Outside Diameter:

1.875 to 2.5 inches (48 to 63 mm)

Braking Type:

Mechanical and Electrical stoppers

Antenna K Coefficient:

950 or less

Wind Loading Area:

32 sq. feet

Maximum Continuous Duty:

3 minutes

Operating Temperature Range:

0°C to +40°C (Controller)

0

-20°C to +40°C (Rotator)

Rotator Dimension:

8 inch dimater 13.675 inches high (200 x 345) mm

Rotator Weight:

14.3 Lbs. (6.5 kg)

Controller Dimension (WHD):

200 x 130 x 193 mm

Controller Weight:

Approx. 3.8 kg

0

Specifications are subject to change without notice or obligation.
