The perfect match for your transceiver!
The Yaesu M-70 desktop microphone is designed for the majority of large and small Yaesu transceivers and offers very good voice quality and good features.
Which microphone suits my operating style?
When choosing a microphone, you should consider several aspects:
- the frequency range of the actual microphone capsule (hi-fi or narrow DX modulation),
- the comfort of use (equaliser and preamplifier yes/no),
- the exact match to the transceiver.

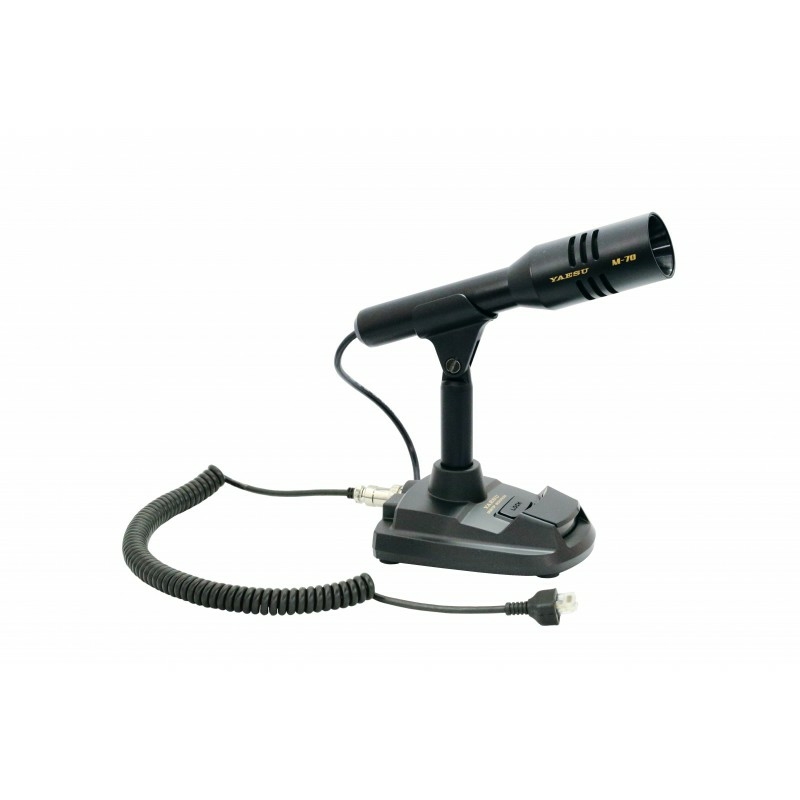

Features of Yaesu M-70 microphone
The Yaesu M-70 is a table microphone designed for everyday use. It is also suitable for radio amateurs who do not use it every day, but for whom a simple handheld microphone is not enough and too uncomfortable. Yaesu M-70 offers a frequency response of 30 - 17000 Hz, which is adapted to radio communication. A switchable high-pass filter limits the frequency response to 340 Hz in the lower range.
Transceiver models compatible with the Yaesu M-70 microphone
Yaesu M-70 fits almost all Yaesu transceivers of the last years. The universal microphone cable allows the use of transceivers with RJ-45 socket as well as transceivers with 8-pin round socket (so-called 'Foster' plug). Some older transceivers require an additional power supply unit; with more modern radios, the microphone is supplied via the radio.
Yaesu FT-1000, Yaesu FT-1000MP, Yaesu FT-1000MP Mk-V, Yaesu FT-1000MP MkV Field, Yaesu FT-747, Yaesu FT-817, Yaesu FT-818, Yaesu FT-840, Yaesu FT-900, Yaesu FT-920, Yaesu FT-950, Yaesu FT-990, Yaesu FT-DX10, Yaesu FT-DX9000, Yaesu FT-2000, Yaesu FT-450D, Yaesu FT-857, Yaesu FT-891 , Yaesu FT-897, Yaesu FT-991, Yaesu FT-DX101D, Yaesu FT-DX101MP, Yaesu FT-DX1200, Yaesu FT-DX3000, Yaesu FT-DX5000, Yaesu FT-850, FT-710.
Older radios which require an additional power supply:
Yaesu FT-747, Yaesu FT-840, Yaesu FT-850, Yaesu FT-990, Yaesu FT-1000.
Parameters of Yaesu M-70 microphone:
|Type of microphone||Electret (Condenser)|
|Connector||RJ-45 + 8pin Foster|
