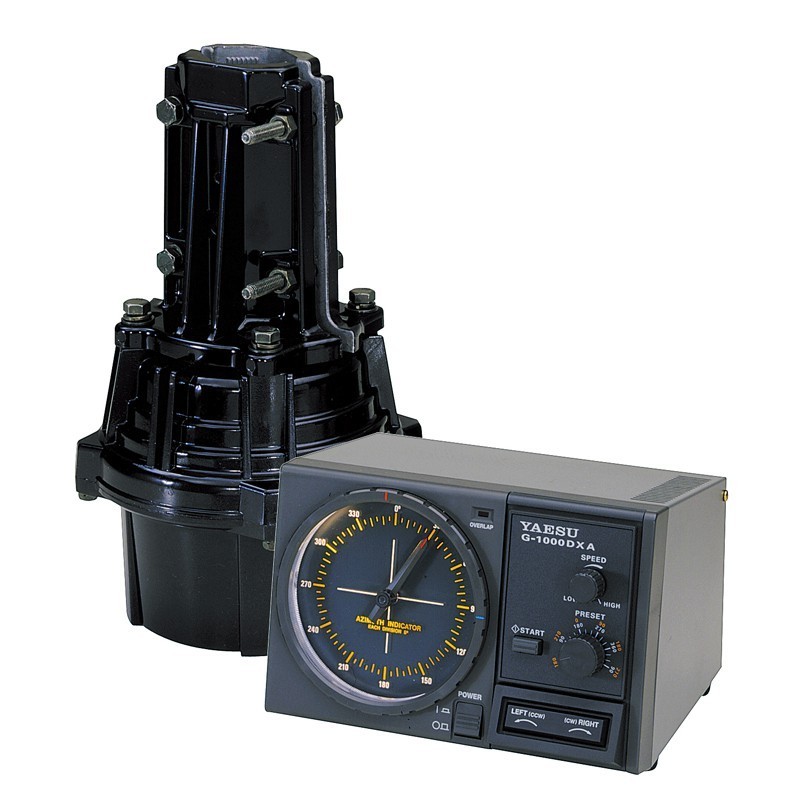

Yaesu G-1000DXC ROTATOR 220V2 WITH CONNECTOR, WO CABLE

Power Supply Voltage:

117 VAC, 50-60 Hz

Power Supply Current Consumption:

1.0 Amp

Rotor Voltage:

11-24 VDC

Cable Conductors Required:

6

360° Rotation Time (Non Loaded):

100 ą10 sec

0

40 ą 5 sec (Variable)

Rotation Range:

450° ą 3°

Rotation Torque:

43-79 Ft. Lbs. (600 to 1,100 kgf-cm)

Braking Torque:

6000 kgf-cm

Maximum Vertical Load:

440 Lbs. (200 kg) continuous

1320 Lbs. (800 kg) momentary

Mast Outside Diameter:

1.5 to 2.5 inches (38 to 63 mm)

Braking Type:

Mechanical and Electrical stoppers

Antenna K Coefficient:

230 or less

Wind Loading Area: (Pole Type)

0.75 m²

(Tower Type)

2.2 m²

Maximum Continuous Duty:

3 minutes

Operating Temperature Range:

0°C to +40°C (Controller)

-20°C to +40°C (Rotator)

Rotator Dimension:

7.5 inches diameter 12.5 inches high (186 x 300 mm)

Rotator Weight:

7.7 Lbs. (3.6 kg)

Controller Dimension (WHD):

200 x 130 x 193 mm

Controller Weight:

Approx. 2.8 kg

Specifications are subject to change without notice or obligation.
