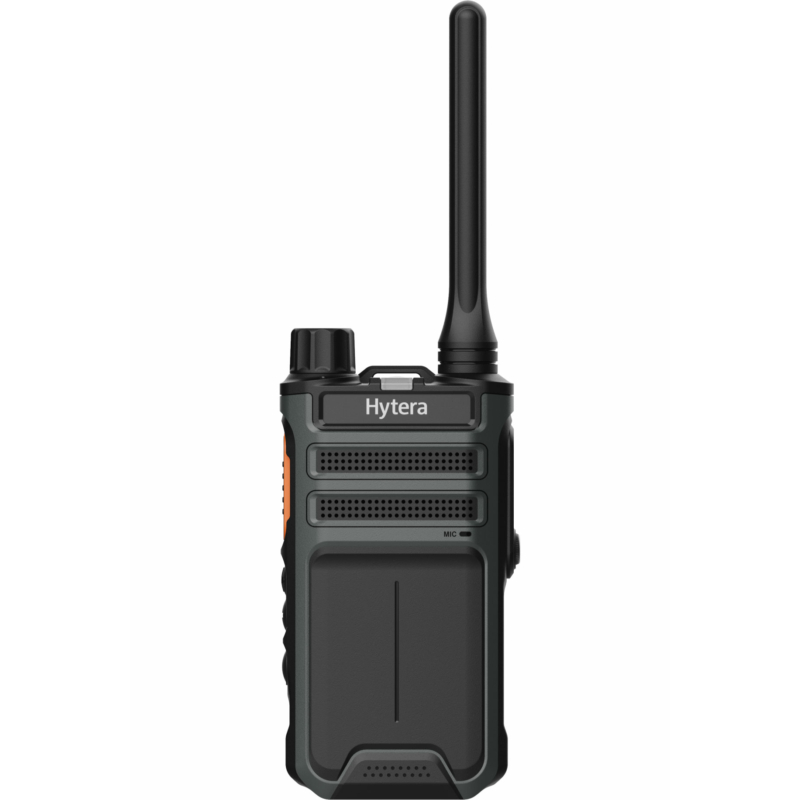

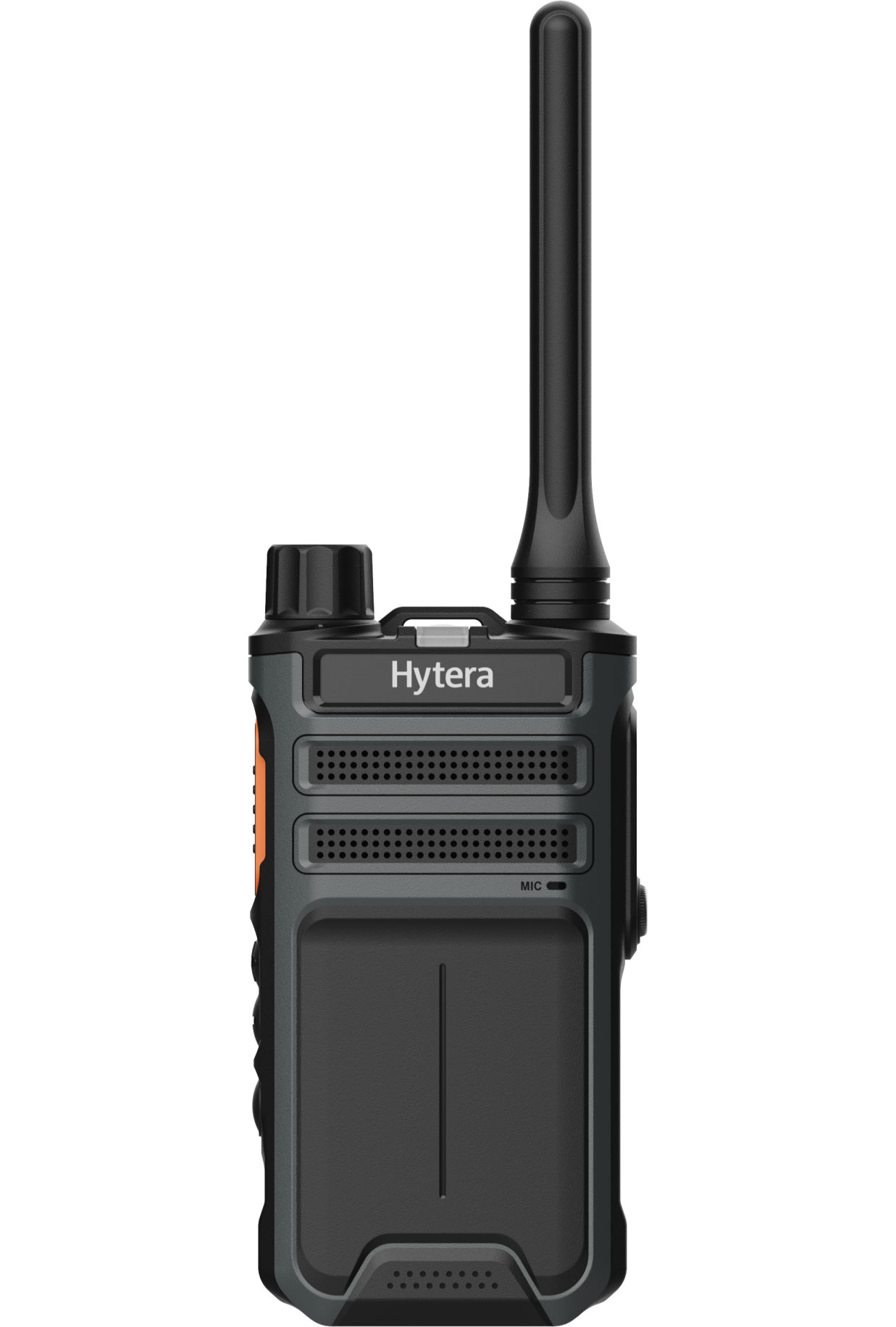

Hytera AP515LF professional analog PMR446 transceiver

Hytera
Model: AP515LF
Nyíregyháza (HU): Temporarily not available
Budapest (HU): Temporarily not available
For EU private customers:
VAT is recalculated to your local VAT, when you add your country through checkout menu.
Companies with EU VAT number:
We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!
For NON EU customers:
We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.



Description

The Hytera AP515 professional PMR446 license-free transceiver is the perfect choice for instant communication. With a 3W speaker, the compact and light Hytera AP515LF PMR446 transceiver can deliver loud and clear audio that allows you to hear and be heard in background noise. It has an incredibly long 25-hour battery life in its most minimal form. The Type-C USB charge plug allows users to charge the radio with a power bank anywhere. With the extended range and a bunch of productivity and efficiency enhancing features, the Hytera AP515LF PMR446 transceiver will ensure you stay connected and productive.

HEAR AND BE HEARD ANYWHERE

You might lose key information due to the unclear audio mixed with heavy background noise, or spend much extra time delivering your information to your partners. The Hytera AP515LF PMR446 transceiver has a 3W speaker and advanced noise cancellation algorithm to eliminate unwanted background noise, reduce distortion, and suppress howling caused by other devices when in close proximity of each other, delivering louder and clearer audio. The background noise will no longer slow down your communication, and you can hear and be heard wherever you are.

COMMUNICATE THROUGHOUT THE WORKPLACE

The Hytera AP515LF PMR446 transceiver has a high-sensitivity receiving module and high-efficiency monopole antenna to enhance signal penetration and achieve better call effects even in weak signal rooms. In addition, the monopole antenna has a unique stable design and is not easy to break and bend, it helps enhance the lifetime of the antenna and also increase the radiation efficiency compared to traditional antennas by 11% to extend radio communication distance.

DO MORE WHILE CARRYING LESS

With a 4000mAh Li-polymer battery, plus the low consumption design, the Hytera AP515LF PMR446 transceiver has an incredibly long 25-hour battery life in its most minimal form to supply your increasing need, without compromising in style or performance. With the 10W USB Type C Charger, the radio can be fully charged in just 1.8 hours. With just 1 hours’ worth of charge the analogue device is able to allow 8 hours of talk time. The long life battery also helps your teams power through extended shifts. So you can do more, while carrying less.

WORK SMARTLY AND EFFECTIVELY

The Hytera AP515LF PMR446 transceiver is coupled with a package of features to make it easy to get your work done. Voice notification confirms the operation for programming buttons or changing the channel.

TRUSTWORTHY QUALITY

Hytera has one of the world’s largest professional communication production lines. Each device is manufactured in accordance with strict supplier management system certification, each component meets the quality control requirements to ensure the consistency of product quality.

Hytera AP515LF PMR446 transceiver key features:

  • 32 channels
  • Auto scan
  • Vote scan
  • Squelch
  • Clear audio
  • CTCSS/CDCSS - you can find the factory default settings of the device in the attached documents
  • Timeout timer
  • Voice notification
  • VOX, channel settings, analogue encryption - can be set from program software
  • Type-C USB charge plug
  • IP54 protection
  • Encryption

Hytera AP515LF PMR446 transceiver accessories:

  • 1 pc. Hytera AP515LF radio on PMR446 license free 446Mhz frequency
  • 1 pc. Battery 4000mAh Li-polimer
  • 1 pc. Belt Clip
  • 1 pc. Strap
  • 1 pc. Type-C Cable
  • 1 pc. EU Power Adapter (USB)

Optional accessories: C-Earset, Programming cable PC155

Compatible with analogue PMR446 transceivers such as the Motorola XT420.

Notes for programming:

To use the Hytera AP515LF licence-free transceiver other than the factory default setting, the transceiver needs to be pre-programmed. Programming is done by the official distributor in Hungary: Anico Kft. 4400 Nyíregyháza, Debreceni út 127. +36-42-507-620 mail@anico.hu Budapest branch: 1107 Budapest Ceglédi út 1-3. +36-1-339-0190 anicobp@anico.hu Programming can also be done using a programming cable, which can be purchased from Anico Kft. Programming cable article number: PC155 Programming service article number: SZ018. After purchase we will consult with all customers about programming. When purchasing, the activation of the VOX function, channel setting and analogue encryption can be requested as an extra.

Blog:
Chatting on snowy slopes: Radio tips for winter sports

SPECIFICATIONS
Frequency Range 446.0 - 446.2 MHz
Supported operating modes Analogue PMR446
Channels & zones Channel capacity:32 Zone capacity:2 Channels per zone:16
Channel Spacing 12.5 kHz
Operating Voltage 3.7 V (rated)
Battery 4000 mAh / 3.7 V Li-polimer
Battery Life (5/5/90 Duty Cycle, High TX Power) 25h
Frequency Stability ±0.5ppm
Antenna Impedance 50Ω
Dimensions (H x W x D) 105 x 55 x 29.5mm
Weight (with antenna & battery) 200g
RECEIVER
Sensitivity 0.18μV (12dB SINAD)
Adjacent Channel Selectivity TIA-603:60dB@12.5kHz ETSI:60dB@12.5kHz
Intermodulation TIA-603:70dB@12.5kHz ETSI:65dB@12.5kHz
Spurious Response Rejection TIA-603:70dB@12.5kHz ETSI:70dB@12.5kHz
Blocking TIA-603:80dB; ETSI:84dB
Hum and Noise 40dB@12.5kHz
Rated Audio Power Output 0.5W
Rated Audio Distortion ≤3%
Audio Response +1~-3dB
Conducted Spurious Emission <-57dBm
TRANSMITTER
RF Power Output UHF:0.5W
FM Modulation -36dBm<1GHz; -30dBm>1GHz
Modulation Limiting ±2.5kHz@12.5kHz
FM Hum & Noise 40dB@12.5kHz
Adjacent Channel Power 60dB@12.5kHz
Audio Response +1 to -3dB
Audio Distortion ≤3%
ENVIROMENTAL
Operating Temperature -30℃ to +60℃ (-30℃* Radio only - Battery -20℃)
Storage Temperature -40℃ to +85℃
ESD IEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)
Dust and Water Intrusion IP54
Humidity MIL-STD-810 H
Shock and Vibration MIL-STD-810 H
