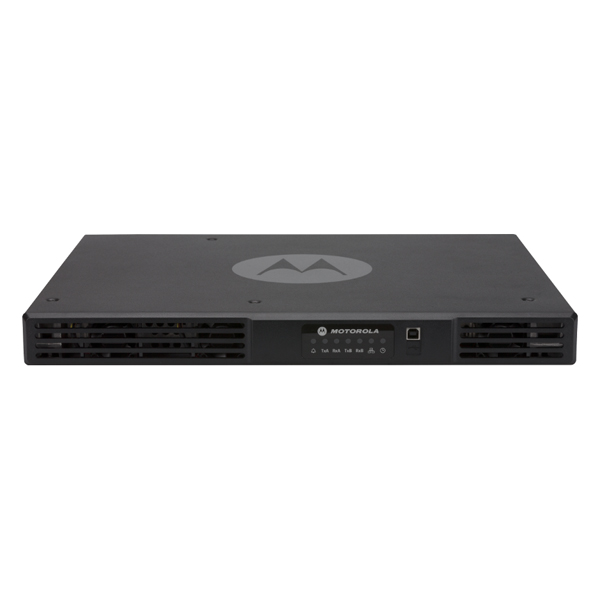

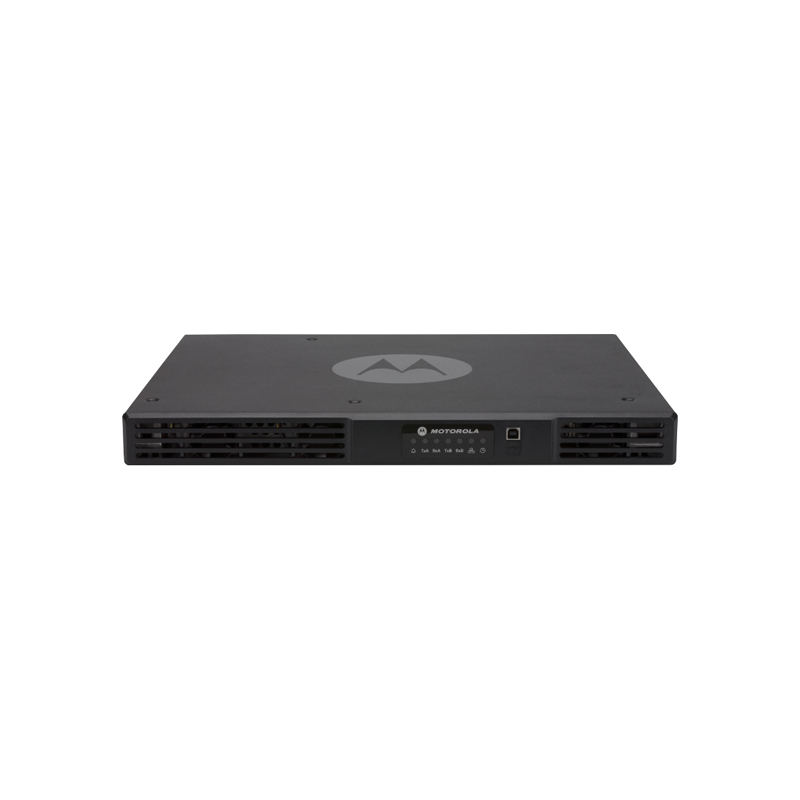

Motorola SLR5500 136-174MHZ 50W FA309B REPEATER

Click to enlarge
Price:
3,245.01 EUR (2,704.18 EUR + VAT)
Model: MDR10JCGANQ1AN
Availability: Back Order
Average Rating: Not Rated
Manufacturer: Motorola
Qty:pieces

Description

Motorola SLR5500 136-174MHZ 50W FA309B REPEATERFor your business to be successful, you need dependable voice and data communications that reach every corner of your operations. The MOTOTRBO SLR 5500 Repeater delivers high performance, high reliability two-way radio service with all the features you need to connect your workplace whether you're in the field or on the factory floor.

With its sleek form factor and low power consumption, the MOTOTRBO SLR 5500 is engineered for low cost of ownership. And with a huge leap forward in technology, it represents the next generation in repeaters as the cornerstone of a MOTOTRBO professional two-way radio system.

Whether you need the simplicity of a single site conventional system, or the powerful trunking capabilities of Capacity Plus, Linked Capacity Plus or Connect Plus, the SLR 5500 delivers the power of digital two-way radio to your workforce.

Motorola SLR5500 repeater basic model includes:
• Rack-mount repeater
• Power cable
NOTE reminder: The Standard Warranty is 24 months.

Motorola SLR5500 repeater technical data:
• VHF (136-174MHz)
• 64 channel capacity
• 1-50 Watts power
• 100% duty cycle at full power
• 1U form factor
• Weight 19 lbs (8.6 kg) - Dimensions (H x W x D) 1.75 x 19 x 14.6 in (44 x 483 x 370 mm)
• No self quieting frequency requirements

Motorola SLR5500 repeater functions:

• Operates either in analogue or digital mode
• Clear LED indicators on front panel indicate operating mode
• Repeater disabled
• TX/RX status per slot
• Rack or wall-mount
• Integrated power supply
• Interface for battery back-up and chargen
• Repeater Diagnostics and Control
• Digital Conventional, IP Site Connect, Capacity Plus, Linked Capacity Plus, Connect Plus, Analog Conventional, MPT 1327 compatible
• Application developers kit (to enable 3rd parties to develop applications which interface to the repeater)

GENERAL SPECIFICATIONS
Frequency Range 136-174 MHz
Channel Capacity 64
RF Output Power 1-50 W
Dimensions (H x W x D) 44 x 483 x 370 mm (1.75 x 19 x 14.6 in)
Weight 8.6 kg (19 lbs)
Input Voltage (AC) 100-240 Vac, 47-63 Hz Current (standby) 110 / 240 V 0.18 / 0.25 A Current (transmitting) 110 / 240 V 1.5 / 0.9 A
Input Voltage (DC) 11.0-14.4 Vdc Current (standby) 0.7 A Current (transmitting) 9.5 A
Operating Temperature Range -30 to +60 °C (-22 to +140 °F)
Humidity RH of 95%, non-condensing at 50 °C (122 °F)
Max Duty Cycle 100%
FCC Description ABZ99FT3094 ABZ99FT4096
IC Description 109AB-99FT3094 109AB-99FT4096
Digital Vocoder Type AMBE+2™
Battery Charger Capacity 12 V, 3 A
Connectivity Tx (N female), Rx (BNC female), USB A receptacle, 2x Ethernet
Supported System Types Digital Conventional, IP Site Connect, Capacity Plus, Linked Capacity Plus, Connect Plus, Analogue Conventional, MPT 1327
RECEIVER
Frequency Range 136-174 MHz
Channel Spacing 12.5 / 20 / 25 kHz
Frequency Stability 0.5 ppm
Sensitivity 12dB SINAD 0.22 uV
Sensitivity 5% BER 0.22 uV
Selectivity (TIA603D) 12.5/20/25 kHz 55 / 83 / 83 dB 55 / 80 / 80 dB
Selectivity (TIA603) 12.5/20/25 kHz 68 / 83 / 83 dB 68 / 80 / 80 dB
Selectivity (ETSI) 12.5/20/25 kHz 63 / 70 / 70 dB
Intermodulation Rejection (TIA603D/ETSI) 82 / 73 dB
Spurious Rejection (TIA603D/ETSI) 95 / 90 dB
Audio Distortion < 1%
Transmitter Hum and Noise 12.5/20/25 kHz -50 / -45 / -45 dB
TRANSMITTER
Frequency Range 136-174 MHz
RF Output Power 1-50 W
Max Duty Cycle 100%
Channel Spacing 12.5 / 20 / 25 kHz
Frequency Stability 0.5 ppm
Intermodulation Attenuation 40 dB
Adjacent Channel Power (TIA603D) 12.5/20/25 kHz 62 / 78 / 78 dB
Adjacent Channel Power (ETSI) 12.5/20/25 kHz 78 / 62 dB
Conducted Spurious Emissions -36 dBm < 1 GHz, -30 dBm > 1 GHz
Modulation Fidelity (4FSK) FSK Error 5%, FSK Magnitude 1%
Audio Response TIA603D
Audio Distortion < 1%
Receiver Hum and Noise 12.5/20/25 kHz -45 / -50 dB
Rated System Deviation 12.5/20/25 kHz ±5.0 / ±2.5 kHz * 25 kHz channels not available in the US
