Description
The SDRplay RSPdx is a complete redesign of the popular RSP2 and RSP2pro multi-antenna receiver. It’s a wideband full-featured 14-bit SDR which covers the entire RF spectrum from 1kHz to 2GHz. Combined with the power of readily available SDR receiver software (including ‘SDRuno’ supplied by SDRplay) you can monitor up to 10MHz spectrum at a time.

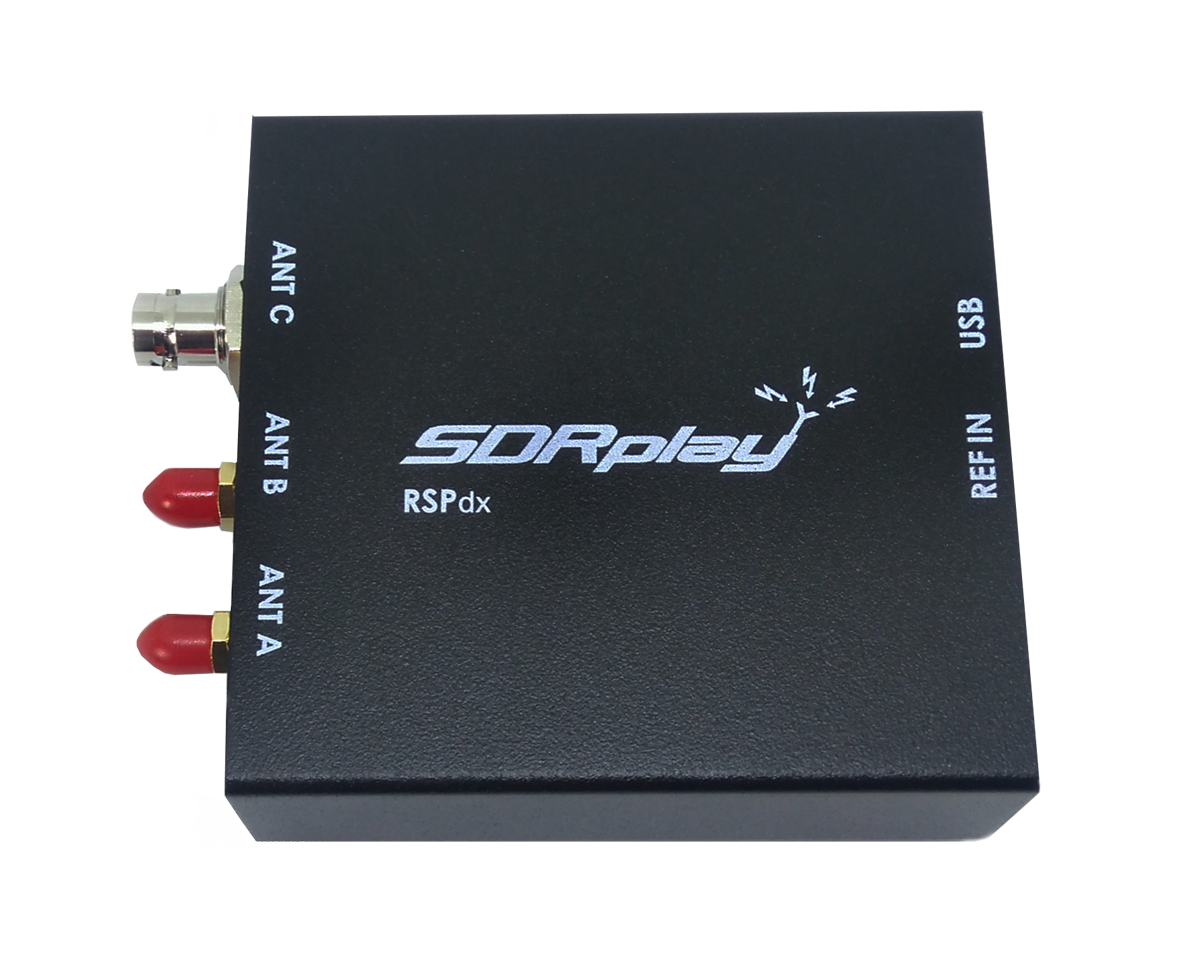

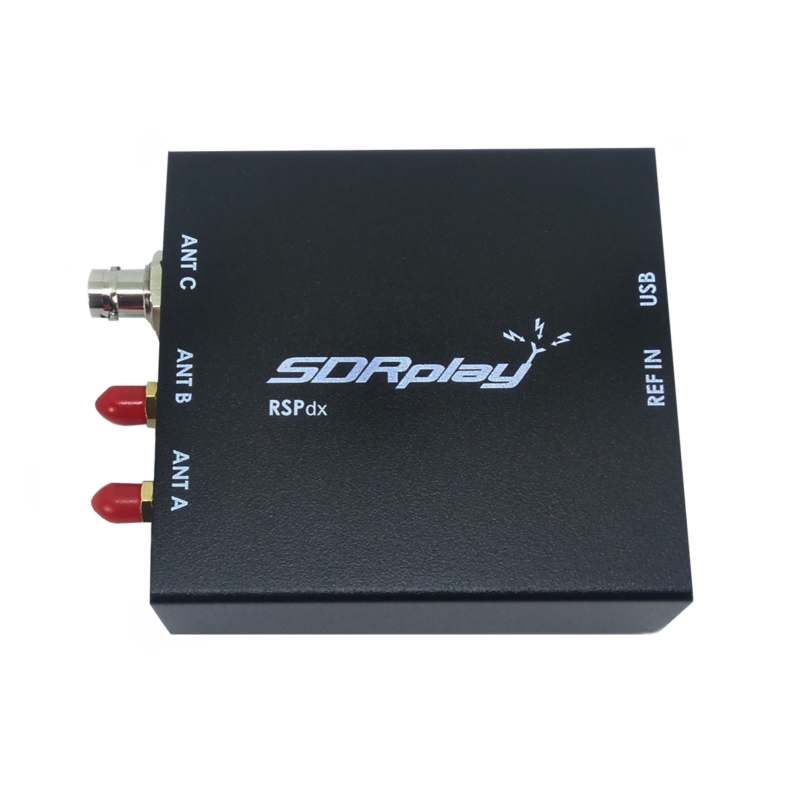

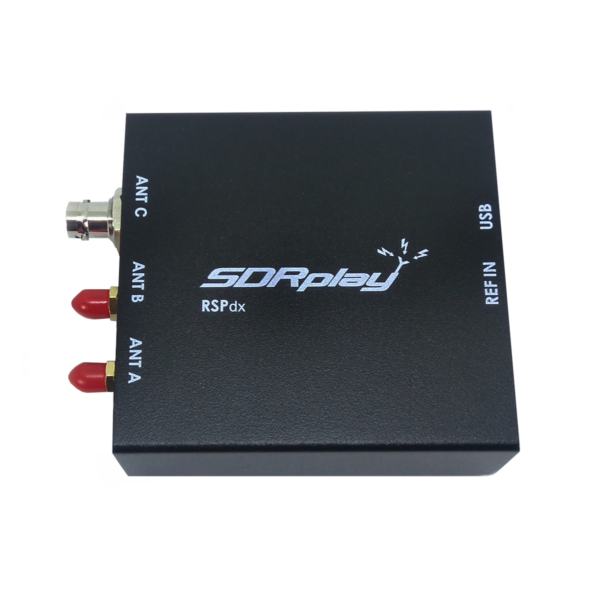

Az SDRplay RSPdx SDR It contains three antenna ports, two of which use SMA connectors and operate across the full 1 kHz to 2 GHz range and the third uses a BNC connector which operates up to 200MHz. Plus an external clock input. All it needs is a computer and an antenna to provide excellent communications receiver functionality. A documented API allows developers to create new demodulators or applications around the platform.
The SDRplay RSPdx is a replacement for the highly successful RSP2 and RSP2pro SDR receivers, which have been extensively redesigned to provide enhanced performance with additional and improved pre-selection filters, improved intermodulation performance, the addition of a user selectable DAB notch filter and more software selectable attenuation steps . The RSPdx , when used in conjunction with SDRplay’s own SDRuno software, introduces a special HDR (High Dynamic Range) mode for reception within selected bands below 2MHz. HDR mode delivers improved intermodulation performance and fewer spurious responses for those challenging bands.
SDRplay RSPdx SDR radio features:
- Covers all frequencies from 1kHz through VLF, LF, MW, HF, VHF, UHF and L-band to 2GHz, with no gaps
- Receive, monitor and record up to 10MHz of spectrum at a time
- Performance below 2MHz substantially enhanced – improved dynamic range and selectivity
- Software selectable choice of 3 antenna ports
- Enhanced ability to cope with extremely strong signals
- External clock input for synchronisation purposes, or connection to GPS reference clock for extra frequency accuracy
- Excellent dynamic range for challenging reception conditions
- Free use of windows-based SDRuno software which provides an ever-increasing feature-set
- Strong and growing software support network
- Calibrated S meter/ RF power and SNR measurement with SDRuno (including datalogging to .CSV file capability)
- Documented API provided to allow demodulator or application development on multiple platforms
You can find more information on the following sites:
- SDRPlay website: https://www.sdrplay.com/
- Softwares, manuals: https://www.sdrplay.com/downloads/
- SDRPlay forum: https://www.sdrplay.com/community/
- SDRPlay blog: https://www.sdrplay.com/blog/
- Introducing the SDRplay Raspberry Pi downloadable SD Card Image: https://www.youtube.com/watch?v=qXThS1XszhQ&feature=youtu.be
- Video and pdf collection: https://www.sdrplay.com/apps-catalogue/
- SDRPlay facebook: https://www.facebook.com/SDRPlay/
- SDRPlay twitter: https://twitter.com/SDRplay
IMPORTANT NOTICE!
SDR radios have no control panel, therefore manufacturers do not supply a user manual. Our company only sells SDR hardware; operation of these devices requires various software that you can download from the internet. Most of these software products are only available for download in the English language from the websites of manufacturers and third party developers (many of them radio amateurs) either for free or for a fee. Installation, setup and usage of the software require an intermediate level of proficiency in computing and the English language. We do not advise to buy these equipment unless you are in possession of these required skills, and we highly recommend to seek assistance and prior information from other radio hams on internet-based forums and user groups.
For SDRplay products, we recommend you to purchase the USB printer cable that we sell. Other USB cables may generate a lot of electromagnetic noise which may interfere with reception.
SDRplay RSPdx parameters | |
Weight | 315g |
Size | 113mm x 94mm x 35mm |
Low current consumption | • 190mA @ >60MHz (excl Bias T) • 120mA @ <60MHz (excl Bias T) |
Connectivity | USB 2.0 (high speed) type B socket |
Frequency Range | Continuous coverage 1kHz – 2GHz |
Antenna A Port Characteristics | • 1kHz – 2GHz operation • 50Ω input impedance • SMA female connector |
Antenna B Port Characteristics | • 1kHz – 2GHz operation • 50Ω input impedance • SMA female connector • Selectable 4.7V DC out (see Bias T) |
Antenna C Port Characteristics | • 1kHz – 200MHz operation • 50Ω input impedance • BNC female connector |
Reference Clock Input | MCX female connector |
Bias T (Antenna B Port only) | Software selectable 4.7V @ 100mA |
IF Modes | • Zero IF, All IF bandwidths • Low IF, IF bandwidths ≤ 1.536MHz |
IF Bandwidths (3dB) | • 200kHz • 300kHz • 600kHz • 1.536MHz • 5.0MHz • 6.0MHz • 7.0MHz • 8.0MHz |
ADC Characteristics | • Sample frequency 2 – 10.66MSPS • 14-bit native ADC (2 – 6.048MSPS) • 12-bit (6.048- 8.064 MSPS) • 10-bit (8.064- 9.216MSPS) • 8-bit (> 9.216 MSPS ) |
Maximum recommended input power | • 0dBm continuous • 10dBm for short periods |
Reference | High temp stability 0.5PPM TCXO • In-field trimmable to 0.01ppm. |
External Reference Clock | When an external 24MHz clock is applied, auto-detect will switch to the external reference. Ideally the external clock source should be connected to the RSPdx before power up |
Typical Noise Figures | • 20dB @ 2MHz • 17dB @ 12MHz • 15dB @ 25MHz • 15dB @ 40MHz • 2.6dB @ 100MHz • 2.1dB @ 200MHz • 6.0dB @ 340MHz • 3.1dB @ 660MHz • 4.4dB @ 1500MHz • 5.0dB @ 1800MHz |
Notch Filters | Note:The notch filters are software selectable and remove specific broadcast bands. |
• FM Notch Filter | >30dB 77 – 115MHz >50dB 85 – 107MHz >4dB 144 – 148MHz |
• MW Notch Filter | >15dB 400 – 1650kHz >30dB 500 – 1530kHz >40dB 540 – 1490kHz |
• DAB Notch Filter | >20dB 155 – 235MHz >30dB 160 – 230MHz |
Front End Filtering | |
• Low Pass | • 500kHz • 2MHz |
• Band Pass | • 2-12MHz • 12-30MHz • 30-60MHz • 60-120MHz • 120-250MHz • 250-300MHz • 300-380MHz • 380-420MHz • 420-1000MHz |
• High Pass | • 1000MHz |
