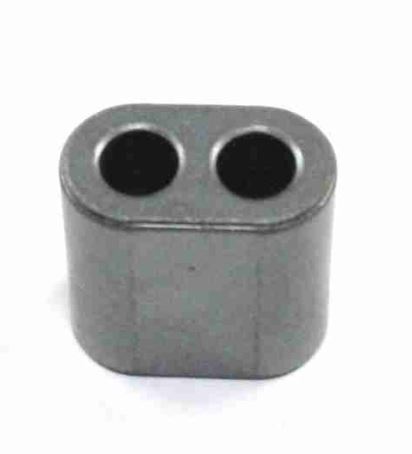

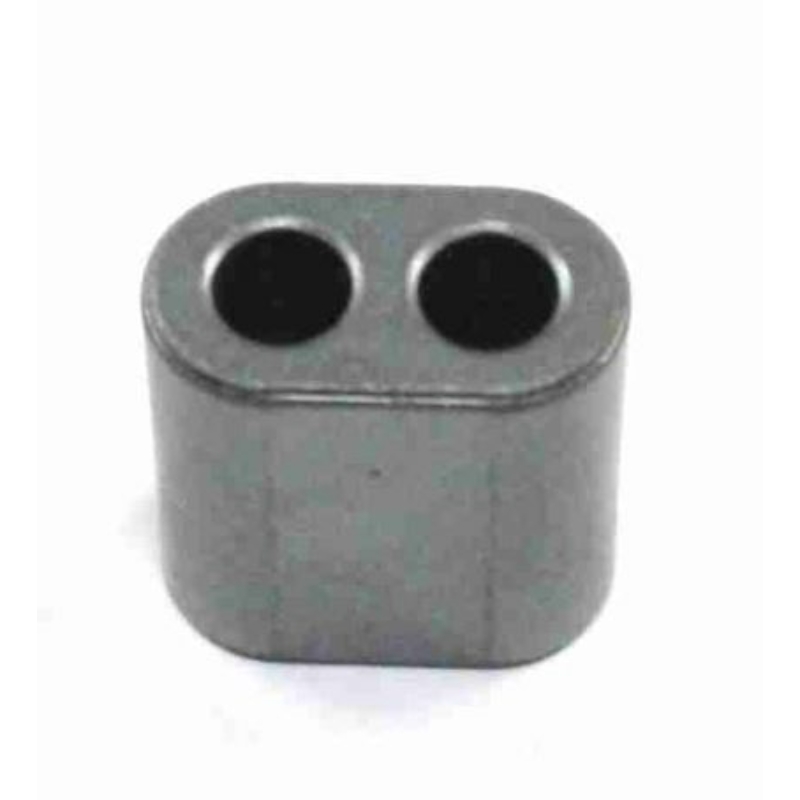

AMIDON BN-43-2402 MULTI-APERTURE CORE

Anico
Model: BN-43-2402
Availability: On stock
Not Rated
For EU private customers:
VAT is recalculated to your local VAT, when you add your country through checkout menu.
Companies with EU VAT number:
We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!
For NON EU customers:
We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.
0.46 EUR (0.39 EUR + VAT)
Qty:pieces

Description

Physical Dimensions



A=0.276 in / 7.0 mm +/- 0.25 mm
B=0.244 in / 6.2 mm +/- 0.25 mm
C=0.16 in / 4.2 mm +/- 0.25 mm
E=0.114 in / 2.9 mm +/- 0.1 mm
H=0.071 in / 1.7 mm +/- 0.2 mm
 AL=1440 +/- 20 %      uH=(AL*Turns2)/1000
Actual measured AL using 10 turns #28 wire
Temperature Stability (ppm /°C) = 12500
Color Code = shiny black
Application Freq Range
Wideband Transformers 5 - 400 MHz
Power Transformers 0.5 - 30 MHz
RFI Suppression 5 - 500 MHz
