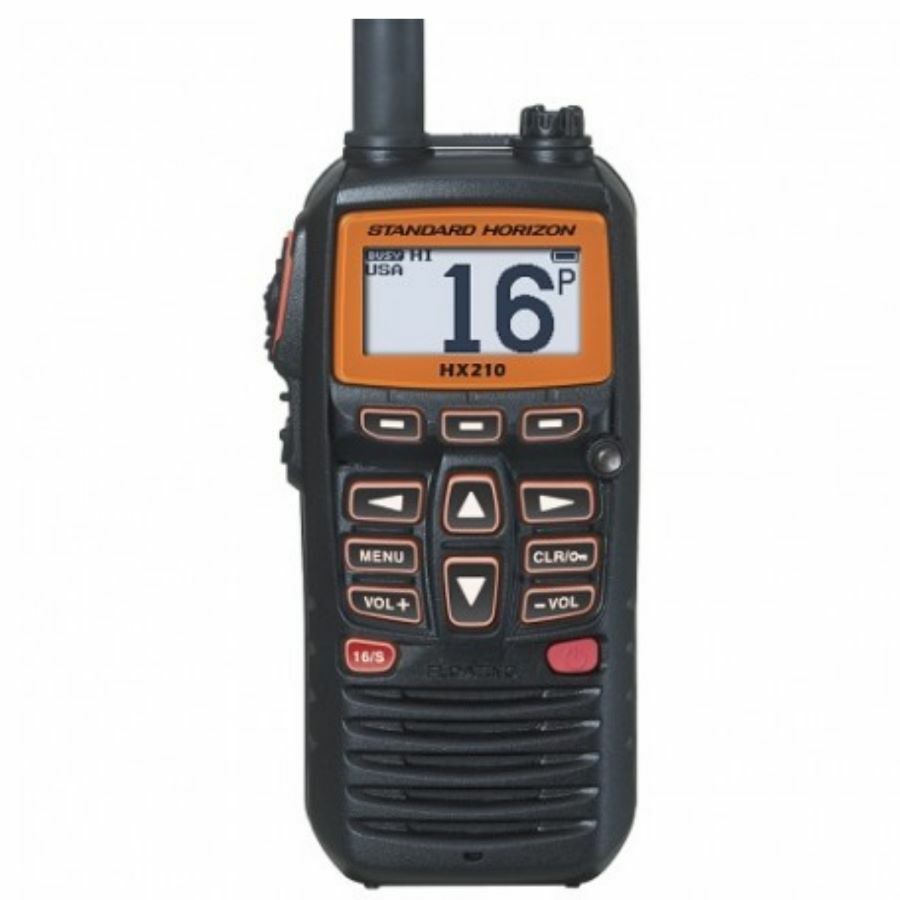

Standard Horizon HX-210E VHF HANDHELD MARINE RADIO

Click to enlarge
Price:
104.12 EUR (86.77 EUR + VAT)
Model: AM049N305
Availability: On stock
Average Rating: Not Rated
Manufacturer:
Please choose the language of the owner's manual:
Owner's manual:
Qty:pieces
More pictures

Description

Standard Horizon HX-210E is a 6W Compact Floating Marine Handheld Transceiver. Compact, ergonomic case design is a result of the new internal, large capacity 1850 mAh Lithium Ion battery technology. This gives the radio a much smaller case design yet light enough to float face up if dropped in the water.

Standard Horizon HX-210E VHF marine transceiver features:

  • Floating / Submersible IPX7 Waterproof rating (3.3 feet or 1 meter for 30 minutes)
  • All USA, International and Canadian channels
  • Selectable 6W / 2.5W / 1W output power
  • Receive WX and FM radio bands 76MHz to 108MHz
  • High resolution dot matrix LCD display
  • E2O Easy to Operate Menu system
  • Programmable function keys
  • Speaker mic Jack
  • High capacity 1850 mAh Li-Ion battery
  • 3 hour desktop rapid charger
  • 12VDC and 110VAC charging cables and charging cradle included
  • 3 year waterproof warranty

Water Activated Emergency Strobe light

If the radio falls in the water an emergency strobe light is automatically activated, even when the unit is turned off!!! The strobe can be reconfigured to flash on and off, flash SOS, or set to stay on continuously.

Oversized full dot matrix display

The Standard Horizon HX-210E VHF marine transceiver boasts one of the largest displays in a compact and affordable handheld VHF. With a larger display, greater (dot matrix) resolution, and a super bright backlight there will be no mistaking the information displayed on the face of the radio day or night.

E20 Easy to Operate Menu System

New intuitive menu system allows easy access to all of the setup functions of the radio, making it easy to customize settings based on the preferences of the user

Built in FM Broadcast band receive

The Standard Horizon HX-210E VHF marine transceiver has an expanded receiver allowing the user to tune in to their favorite FM radio station. The radio will receive FM broadcast bands between 76 MHz to 108 MHz.

3-year Waterproof Warranty

Because the Standard Horizon HX-210E VHF marine transceiver is built better, it’s backed better. If your Standard Horizon HX-210E ever fails for any reason including water damage during normal use in the first three years, STANDARD HORIZON will repair or replace it free, without hassle or charges…period! If it fails thereafter in normal use it is covered by Standard Horizon’s Flat Rate Service Program.



Standard Horizon HX-210E VHF hajózási adóvevő doboz tartalma:

  • HX-210E VHF transceiver
  • CAT460 antenna
  • SAD-11 AC adapter
  • EDC-19A DC cable with cigarette lighter plug
  • SBH-25 charger cradle
  • CLIP-22 belt clip



ABOUT THE VHF MARINE BAND: The radio frequencies used in the VHF marine band lie between 156 and 158 MHz. The marine VHF band provides communications over distances that are essentially “Line of sight” Actual transmission range depends much more on antenna type, gain and height than on the power output of the transmitter. On a fixed mount 25 W radio transmission expected distances can be greater than 15 miles, for a portable 5 W radio transmission the expected distance can be greater than 5 miles in “Line of sight”. The use of Marine VHF radio is governed by regulation and local laws. Use by unauthorized persons is not permitted and is subject to fines and confiscation if convicted. This is especially true when the radio is used on land in a non marine environment where because of location or propagation anomalies es-pecially during the summer, the transmission may cause interference with a search and rescue operation or contribute to a marine collision between pass-ing ships.



Standard Horizon HX-210E VHF marine transceiver specifications (Performance specifications are nominal, unless otherwise indicated, and are subject to change without notice. Measurements*1 are in accordance with TIA/EIA-603 (U.S.A.) and EN301 178 (EXP). *1(Except the FM Broadcast Receiver))

GENERAL
Frequency Ranges TX:156.025 MHz - 161.600 MHz (Frequency differs in some regions) RX:156.050 MHz - 163.275 MHz (Inter National, Including WX channels)
Channel Spacing 25 kHz
Frequency Stability ±3 ppm (–20°C to +60°C)
Emission Type 16K0G3E
Antenna Impedance 50 ohm
Operating Voltage 7.4 V DC, Negative Ground
Current Consumption 330 mA (Receive, Typical at AF MAX.); 100 mA (Standby) 1.6 A / 1.0 A / 0.7 A (TX:6 W (5 W)*2 / 2.5 W / 1 W)
Operating Temperature –20°C to +60°C
Case Size (W x H x D) 2.36” x 5.20” x 1.57” (60 mm x 132 mm x 40 mm) (w/o knob & antenna)
Weight (Approx.) 9.88 oz (280 g) (with hand strap, belt clip & antenna)
TRANSMITTER
RF Power Output 6 W (5 W)*2 / 2.5 W / 1 W (@7.4 V )
Maximum Deviation ±5 kHz
Spurious Emission Less than 0.25 μW
Microphone Impedance 2 k ohm *2(5 W TX required in Some Countries)
RECEIVER
Circuit Type Double Conversion Superheterodyne
Intermediate Frequencies 1st:38.85 MHz, 2nd:450 kHz
Adjacent Channel Selectivity 70 dB typical
Intermodulation 70 dB typical (U.S.A); 68 dB typical (EXP)
Hum & Noise Ratio 40 dB typical
Sensitivity 0.25 μV for 12 dB SINAD (U.S.A.); -5 dBμ for 20 dB SINAD (EXP)
Selectivity 12 kHz / 25 kHz (–6 dB / –60 dB)
AF Output (Internal SP) 600 mW @16 ohm for 10 % THD (@7.4 V)
FM BROADCAST RECEIVER
Frequency Range 65 MH z - 108 MHz
Frequency Step 100 kHz
Sensitivity 1.0 μV for 12 dB SINAD
