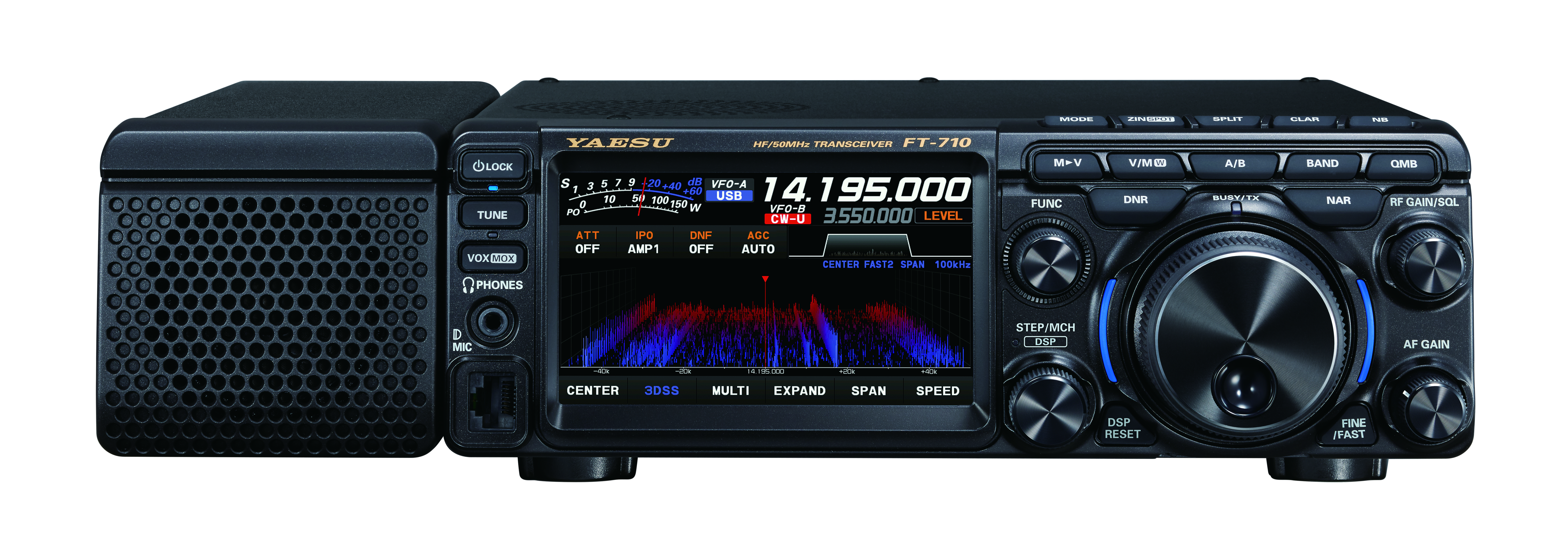

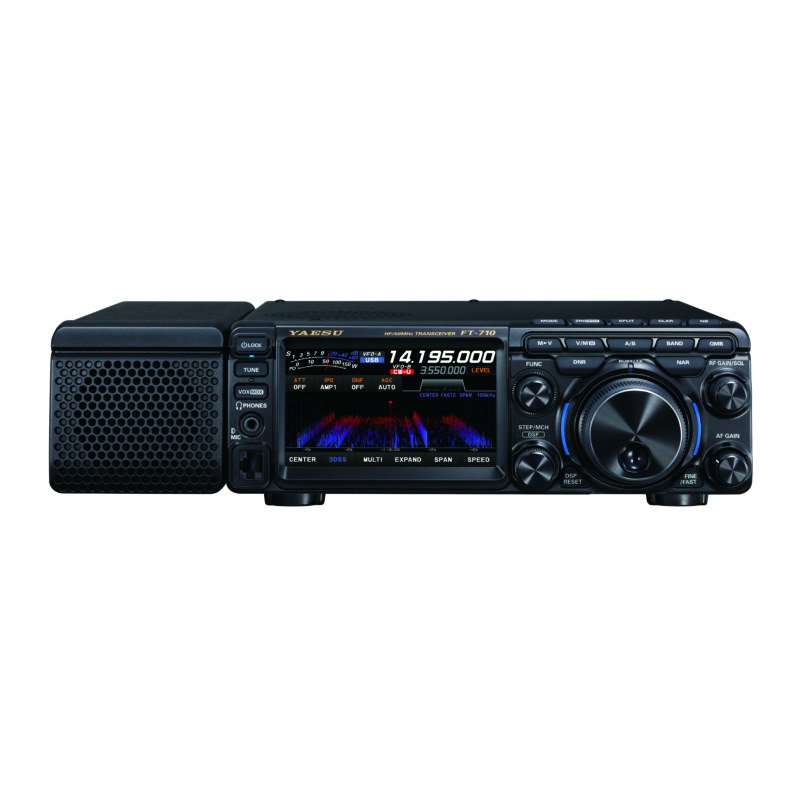

Yaesu FT-710 AESS 250 MHz, 100 W, HF/6M transceiver / with 5 year warranty
Description
The Yaesu FT-710 is Yaesu's compact shortwave transceiver that adopts the SDR technology of the Yaesu FT-DX101 and FT-DX10. The Yaesu FT-710 AESS (Acoustic Enhanced Speaker System) provides 100W of transmit power (adjustable from 5 to 100W). The RF input stage builds on the experience of the large Yaesu FT-DX101 and FT-DX10 transceivers and uses SDR technology. A series of band filters for the amateur radio bands filter out unwanted SIgnals from outside the band. The high-resolution 250 MHz synthesiser allows simultaneous reception of multiple signals.
Operation is greatly simplified by the large 4.3" colour display; as with its larger siblings, a mouse and/or keyboard can be connected for easier control. Clearly visible LEDs to the side of the large VFO knob indicate the current operating status (VFO-A, VFO-B, memory, clarifier/split). A 'preset' function helps to set all parameters for FT-8 operation super-fast and optimally. The built-in antenna tuner adjusts not exactly tuned antennas in a flash. If an external tuner is needed, the Yaesu FT-710 offers the possibility to connect the Yaesu FC-40 tuner.
To improve the integration into the radio station, the Yaesu FT-710 offers the possibility to connect an external monitor (DVI-D). In addition to the two USB ports (1x type A, 1x type B), there is also a port for network control. An SD memory card remembers all settings, memory contents and also records QSOs at the touch of a button. Firmware updates are also carried out very conveniently and securely via the SD card.
Yaesu FT-710 AESS transceiver technical data:
-
Product Name: FT-710
-
Freq Range Receiver (kHz): 30 kHz - 75 MHz
-
Supported Bands: 160m, 80m, 60m, 40m, 30m, 20m, 17m, 15m, 12m, 10m, 6m
-
4 m Band TX capable Yes, modification required
-
6 m Band TX capable Yes, as shipped
-
Weight [kg]: 4.51 kgs
Yaesu FT-710 AESS transceiver top features:
-
Transmitting power: 5 - 100 W
-
Bands: 160 m - 10 m + 6 m
-
Tuner built-in
-
Yaesu SDR technology
-
4.3" colour display
-
DVI-D port for ext. screen
-
Preset mode for FT-8
-
AESS: Acoustic Enhanced Speaker System
-
Remote control via network
Yaesu FT-710 250 MHz, 100 W transceiver supplied accessories:
- Yaesu FT-710 AESS Transceiver
- SP-40 Loudspeaker
- SSM-75E Handheld Microphone
- DC cable
- Instruction manual
- Small parts
| Specifikációk | |
| Tx Frequency Range | 1.8MHz - 54MHz (Amateur bands only), 70MHz - 70.5MHz (UK Amateur bands only) |
| Rx Frequency Range | 30kHz - 75MHz (operating), 1.8MHz - 29.699999MHz (Amateur bands only) 50MHz - 53.999999MHz (Amateur bands only) 70MHz - 70.499999MHz (UK Amateur bands only) |
| Emission Modes | A1A (CW), A3E (AM), J3E (LSB, USB), F3E (FM), |
| Frequency Steps | 1*/5/10/20Hz (CW, SSB, AM), 100Hz (FM) *FINE tuning “ON” |
| Frequency Stability | ±0.5ppm (after 1 minute @ +32°F to +122°F [0°C to +50°C]) |
| Supply Voltage | DC13.8V ± 15% (Negative Ground) |
| Power Consumption (approx.) | Rx (no signal) 1.8A, Rx (signal present) 2.2A Tx (100W) 21A |
| Dimensions | 239 x 80 x 247mm |
| Weight | 4.5kg |
| Transmitter | |
| Power Output | 5 - 100W (5 - 25W AM carrier) |
| Modulation Types | J3E (SSB):Balanced A3E (AM):Low-Level (Early Stage) F3E (FM):Variable Reactance |
| Maximum FM Deviation | ±5.0kHz / ±2.5kHz (Narrow) |
| Bandwidth | 3kHz (LSB, USB), 500Hz (CW), 6kHz (AM), 16kHz (FM) |
| Receiver | |
| Circuit Type | Direct Sampling Superheterodyne |
| Intermediate Frequencies | SSB, CW:18kHz / AM, FM:24kHz |
Attached documents
Reviews
1 rating
Write a review!
HA5SF
|
Verified purchase
01/01/2023
Egy régi szuperheterodin vevőt váltott nálam a 710-es. Fontos szempont volt, hogy kis méretű, és relatíve olcsó, de teljes értékű asztali rádió legyen.
Jelenleg ez a legjobb pure SDR amatőr adóvevő a világon a Sherwood engineering szerint. Nagyon gyenge jelet is szépen tudok vele venni. A DSP nagyon hatékony. A szelektivitása kitűnő. Szoftveresen még van pár javítanivaló rajta, de a gyártó folyamatosan adja ki a frissítéseket.
Összességében eddig meg vagyok vele elégedve, újra ezt venném.
Jelenleg ez a legjobb pure SDR amatőr adóvevő a világon a Sherwood engineering szerint. Nagyon gyenge jelet is szépen tudok vele venni. A DSP nagyon hatékony. A szelektivitása kitűnő. Szoftveresen még van pár javítanivaló rajta, de a gyártó folyamatosan adja ki a frissítéseket.
Összességében eddig meg vagyok vele elégedve, újra ezt venném.
