This LDG IC-705 version includes, 8 x AA batteries, PL259 coax to BNC adaptor lead and control cable ready for easy installation to the Icom IC-705.

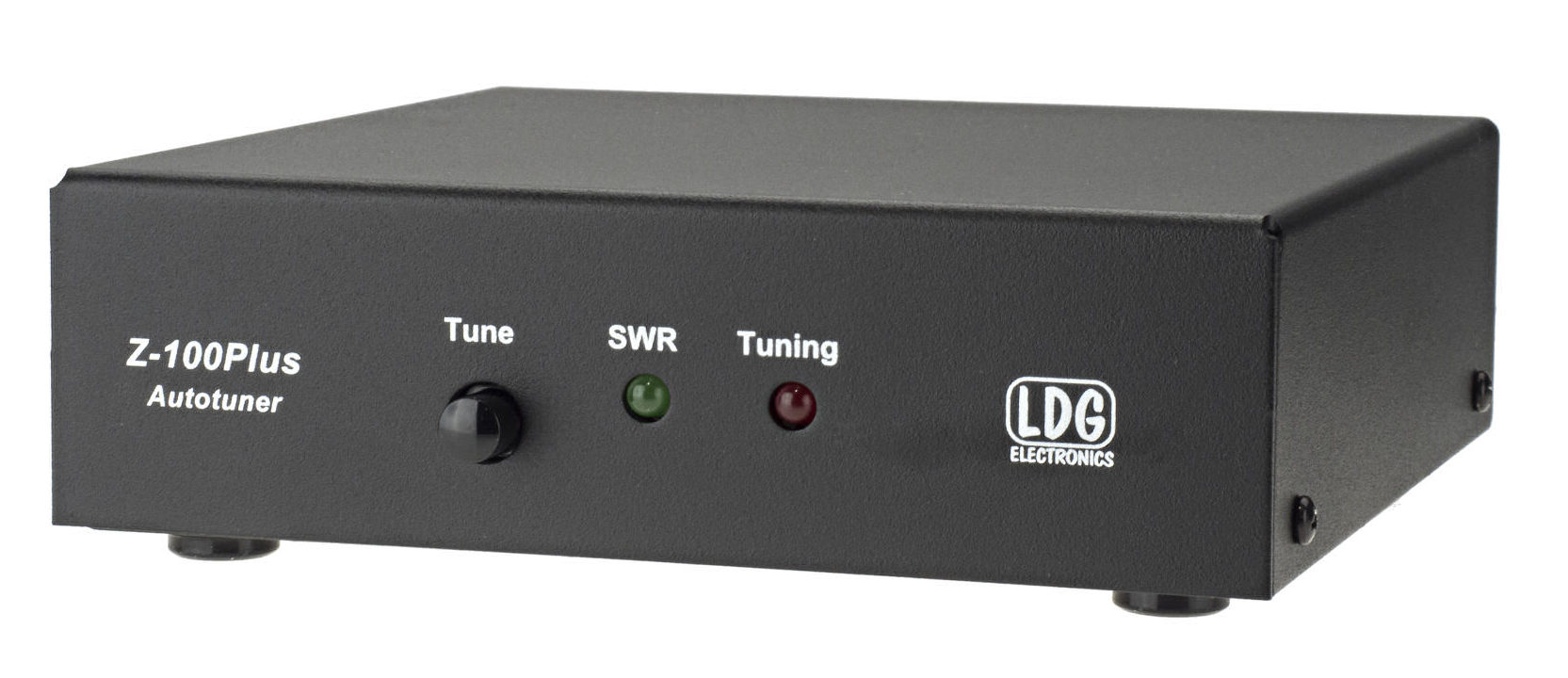

The LDG Z-100Plus is a small, low-cost automatic tuner suitable for any amateur purpose, whether base, mobile or portable. It handles up to 125 watts SSB or CW, but requires only 0.1 watts to tune, making it ideal for QRP operation.
Like all LDG tuners the Z-100Plus features LDG's advanced memory tuning, providing 2,000 memory locations; when tuning near a previously used frequency it will recall the settings for nearly instant tuning. It learns your favorite frequencies and bands as you use it.
The LDG Z-100Plus requires very little electrical power. An internal battery holder for eight AA batteries is included in the Icom IC-705 version; these will operate the tuner for about a year of normal use. This feature makes the Z-100Plus especially suitable for mobile or portable operation.
LDG Z-100Plus automatic antenna tuner specifications:
RF Power: 0.1 to 125 watts SSB and CW, 30W on PSK.
Latching relays for ultra low power consumption
2000 memories sorted by frequency.
1.8 to 54 MHz coverage (continuous coverage for MARS)
Tunes 6 to 800 ohms. (16 to 150 on 6M)
SO-239 in/out connections for dipoles, verticals, beams, G5RV, OCF, Cobra, ect.
7 to 18 Volts DC, 100 mA. 6ft DC power cable included 5.5 x 2.5mm.
Dimensions: 5.5"L, 5.5"W, 1.5"H. Weight: 16 ounces
Taking into account the strict warranty policy of LDG Electronics, the customer acknowledges that warranty and non-warranty repairs will be carried out exclusively by LDG's own service. The warranty period is 2 years. In the event of repair, the owner of the product must arrange for the product to be taken to LDG Electronics' service centre and pay the extra costs.
1445 Parran Rd.
St. Leonard, MD 20685 USA
