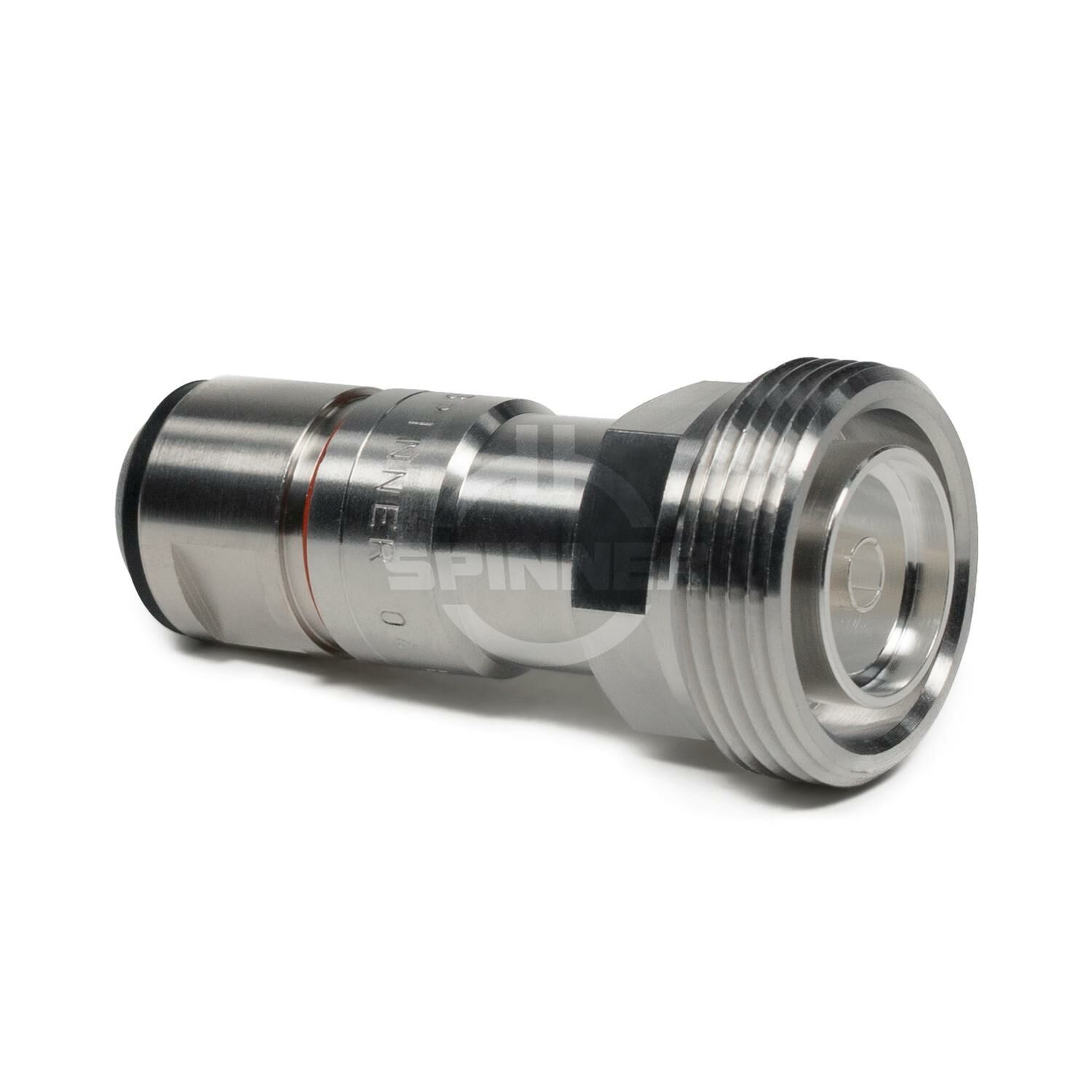

SPINNER 7-16 FEMALE CONNECTOR SF 1/2"-50 MultiFit

18.87 EUR (15.72 EUR + VAT)
Qty:pieces
Model: BN710371
Availability: On stock
18.87 EUR (15.72 EUR + VAT)
Qty:pieces

Description

SPINNER 7-16 female connector SF 1/2"-50 MultiFit. For Heliax, Andrew, TimesMicrowave, Belden, Draka, CommScope, EUPEN etc. cables.


RF characteristics

Number of interfaces:  1
Interface type:  7-16 female (50 Ω) per IEC 61169-4
Interface direction:  straight
Mounting type:  none
Frequency range:  DC to 6 GHz
VSWR, max.:
     1.02 @ DC to 1.0 GHz
     1.03 @ 1.0 to 2.7 GHz
     1.06 @ 2.7 to 3.8 GHz
     1.14 @ 3.8 to 6.0 GHz


Mechanical characteristics

Cable entry type:  Spinner MultiFit®
Cable compatibility:  SF 1/2
Cable manufacturer types:

  • SPINNER: SpinnerFlex® SF 1/2"-50
  • Acome: HPL50-1/2 SF
  • Andrew: FSJ4-50 B
  • Draka: RFF 1/2"-50
  • Eupen: EC4-50-HF
  • Hansen: RF 50 1/2" S
  • Hengxin: HRCAY-50-9
  • LS Cable: FlexLine 1/2" S
  • Leoni: HFSC 12 D
  • RFS: SCF 12-50

Inner conductor:  copper-alloy / silver-plated
Outer conductor material / surface:  copper-alloy / CuSnZn-plated
Other metal parts material / surface:  copper-alloy / nickel-plated
Insulation:  PTFE
Housing sealing:  silicone rubber
IP protection level:  IP 68
IP protection level remark:  connected with appropriate gasket
Weight, approx.:  100.0 g
