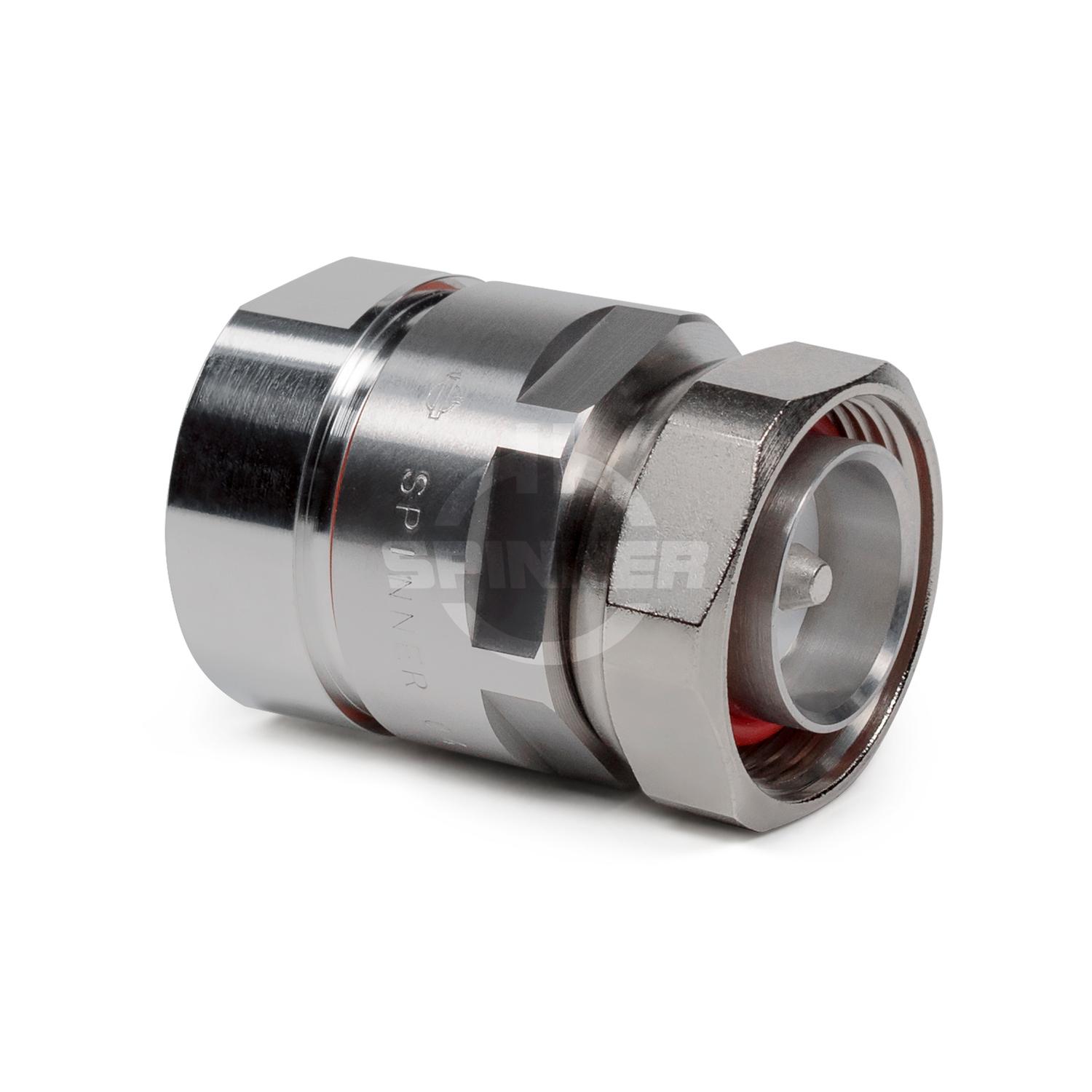

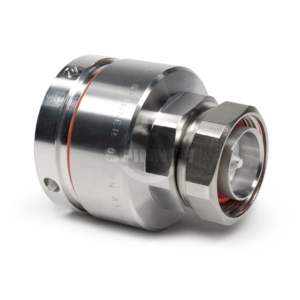

SPINNER 7-16 CONNECTOR LF 7/8"-50 MULTIFIT

SPINNER 7-16 connector LF 7/8"-50 MULTIFIT. For Heliax, Andrew, TimesMicrowave, Belden, Draka, CommScope, EUPEN etc. cables.


RF characteristics

Number of interfaces:  1
Interface type:  7-16 male (50 Ω) per IEC 61169-4
Interface direction:  straight
Mounting type:  none
Frequency range:  DC to 3.8 GHz
VSWR, max.:
         1.02 @ DC to 1.0 GHz
         1.03 @ 1.0 to 2.7 GHz
         1.06 @ 2.7 to 3.8 GHz

Mechanical characteristics

Cable entry type:

• Spinner MultiFit®
• Cable compatibility:
• LF 7/8
• Cable manufacturer types:
• SPINNER: SpinnerFlex® LF 7/8"-50
• Acome: HPL50-7/8 ALU, HPL50-7/8 F, HPL50-7/8 LA
• Andrew: AL5-50, AVA5-50, VXL5-50
• Draka: RFA 7/8"-50, RFA 7/8"-50 AL, RFE 7/8"-50
• Eupen: EA5-50 Aluminum, EC5-50-A, EC5-50-HF
• Hansen: RF 50 7/8"
• Hengxin: HCTAY-50-22
• Leoni: FlexLine 7/8" R Low Loss
• LS Cable: LHF 22D, HFC 22D
• RFS: LCF 78-50 A, LCF 78-50 L, UCF 78-50 A, UCF 78-50 L

Inner conductor:  copper-alloy / silver-plated
Outer conductor material / surface:  copper-alloy / CuSnZn-plated
Other metal parts material / surface:
         copper-alloy / tin-plated
         copper-alloy / CuSnZn-plated
         copper-alloy / nickel-plated
Insulation:  PTFE
Housing sealing:  silicone rubber
IP protection level:  IP 68
IP protection level remark:  mated
Weight, approx.:  140.0 g
