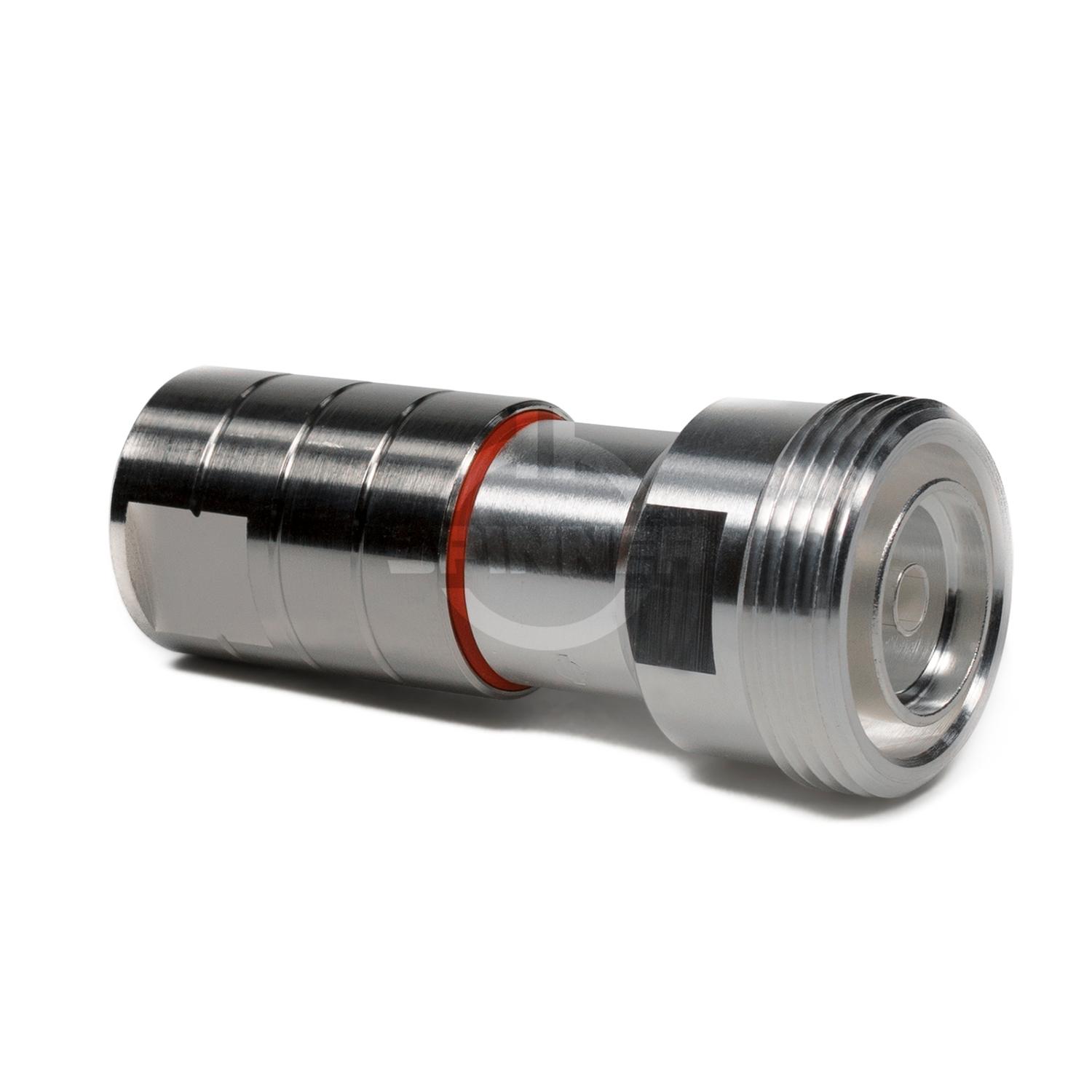

SPINNER 7-16 FEMALE CONNECTOR SF 1/2"-50 CAF

18.86 EUR (15.72 EUR + VAT)
Qty:pieces
Model: BN710359
Availability: On stock
Not Rated
18.86 EUR (15.72 EUR + VAT)
Qty:pieces

Description

SPINNER 7-16 female connector SF 1/2"-50 CAF. For Heliax, Andrew, TimesMicrowave, Belden, Draka, CommScope, EUPEN etc. cables.


RF characteristics

Number of interfaces: 1
Interface type: 7-16 female (50 Ω) per IEC 61169-4
Interface direction: straight
Mounting type: none
Frequency range: DC to 3.8 GHz
VSWR, max.:
     1.02 @ DC to 1.0 GHz
     1.03 @ 1.0 to 2.7 GHz
     1.06 @ 2.7 to 3.8 GHz


Mechanical characteristics

Cable entry type: CAF®
Cable compatibility: SF 1/2
Cable manufacturer types: RFS: SCF 12-50
Inner conductor: copper-alloy / silver-plated
Outer conductor material / surface: copper-alloy / silver-plated
Other metal parts material / surface: copper-alloy / nickel-plated
Insulation: PTFE
Housing sealing: silicone rubber
IP protection level: IP 68
IP protection level remark: connected with appropriate gasket
Weight, approx.: 140.0 g
