Description

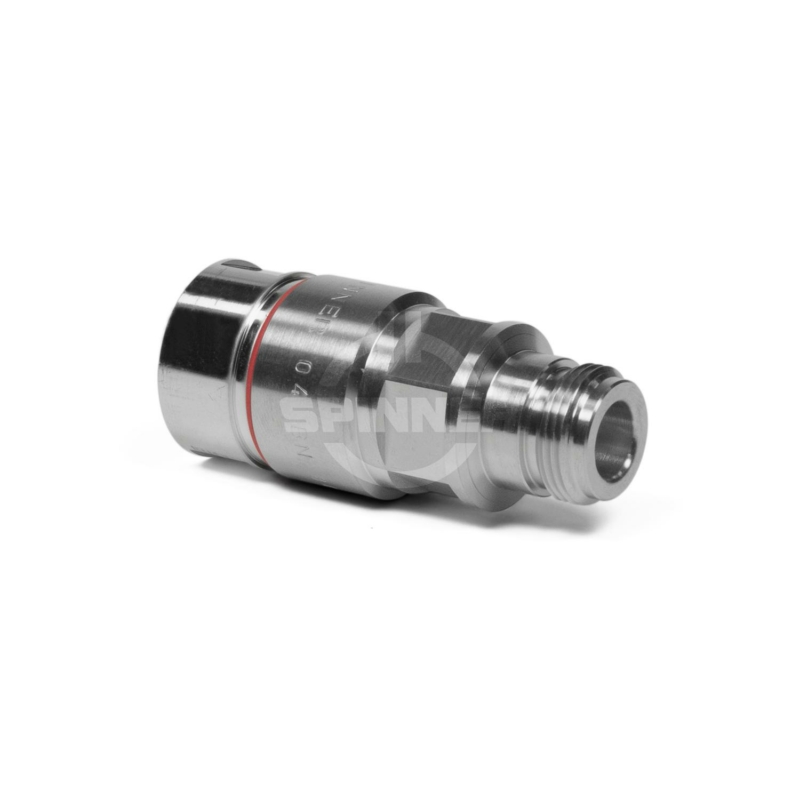

SPINNER N female connector LF 1/2"-50 MultiFit. For Heliax, Andrew, TimesMicrowave, Belden, Draka, CommScope, EUPEN etc. cables.
RF characteristics
Number of interfaces: 1
Interface type: N female (50 Ω) per IEC 61169-16
Interface direction: straight
Mounting type: none
Frequency range: DC to 6 GHz
VSWR, max.:
1.02 @ DC to 1.0 GHz
1.03 @ 1.0 to 2.7 GHz
1.08 @ 2.7 to 3.8 GHz
1.10 @ 3.8 to 6.0 GHz
Mechanical characteristics
Cable entry type: Spinner MultiFit®
Cable compatibility: LF 1/2
Cable manufacturer types:
SPINNER: SpinnerFlex® LF 1/2"-50
Acome: HPL50-1/2 F
Andrew: LDF4-50 A
Draka: RFA 1/2"-50
Eupen: EC4-50
Hansen: RF 50 1/2"
Hengxin: HCAAY-50-12
Leoni: FlexLine 1/2" R
LS Cable: HFC 12D Flexible Foam
RFS: LCF 12-50, LCF 12-50 L
Inner conductor: copper-alloy / silver-plated
Outer conductor material / surface: copper-alloy / CuSnZn-plated
Other metal parts material / surface:
copper-alloy / tin-plated
copper-alloy / CuSnZn-plated
Insulation: PTFE, PE
Housing sealing: silicone rubber, EPDM
IP protection level: IP 68
IP protection level remark: connected with appropriate gasket
Weight, approx.: 80.0 g
