Yaesu FTM-6000E FM VHF/UHF 50W mobile transceiver

Yaesu
285.02 EUR (239.51 EUR + VAT)
Qty:pieces
Model: FTM-6000XDE
Availability: On stock
Not Rated
For EU private customers:
VAT is recalculated to your local VAT, when you add your country through checkout menu.
Companies with EU VAT number:
We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!
For NON EU customers:
Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.
Product variations:
Owner's manual (in digital format):
285.02 EUR (239.51 EUR + VAT)
Qty:pieces

Description

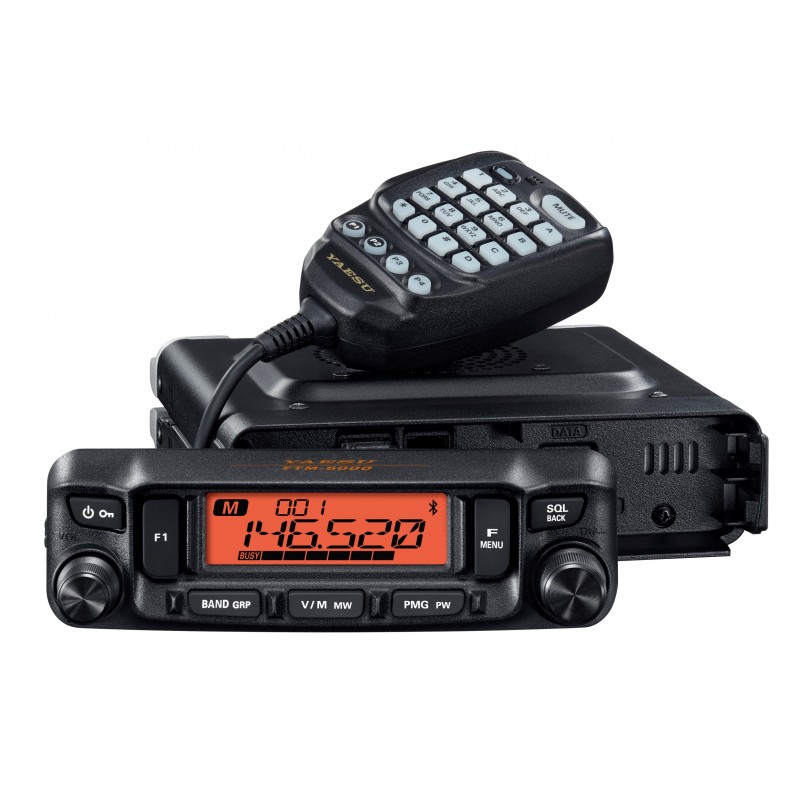

The Yaesu FTM-6000E is an easy-to-use FM mobile transceiver for the 2m and 70cm amateur radio bands. Transmit power is max 50 W, which can be switched to 25 and 5 W. The unit supports FM and NFM (Narrow FM) modes as well as AM (aviation radio) reception. The receiver operates in the range 108 to 999 MHz. On the transmitter side, the 2m and 70cm amateur bands are covered.

The large display allows easy reading of the operating frequency. Only the selected band is displayed at a time; the Yaesu FTM-6000E transceiver has only one receiver. For monitoring multiple frequencies, powerful functions such as Scan and Priority Watch (Dualwatch) are available. A new feature is the two large function buttons to the left and right of the display. These buttons form the basis of the new "Easy to Operate" (E2O) concept. Here the user can program the most important menu functions individually on the buttons. The result is an operation that suits every application.

The most frequently used frequencies can be stored in memory, with 1000 memory locations available. Each memory can be given an alphanumeric name, for example the call sign of the repeater. In order to access a selected group of memories particularly and quickly, a separate "PMG Primary Memory Group" button is available. Conveniently, all memories are automatically grouped by band, so all frequencies of a band are always grouped together.

Convenient operation is enhanced by the remote control panel of the Yaesu FTM-6000E. A bracket and a separation cable are supplied, allowing the control panel to be mounted in the optimal position in the vehicle. The control panel has space for the optional 'BU-4' Bluetooth card, which can be easily retrofitted by the user. The optional Bluetooth unit (BU-4) allows operation with a Bluetooth headset (e.g. SSM-BT10) or hands-free kit. A Bluetooth headset is very useful in many situations; in the vehicle, a BT hands-free system can contribute to driving safety. On the back of the Yaesu FTM-6000 transceiver there is a 10-pin "Data" socket, which can be used to operate e.g. Packet Radio or an external voice recorder. Another "Data" socket is used for programming with the appropriate PC software. The control panel of the FTM-6000E is detachable, a 3 m separation cable and a bracket are supplied. This allows the control panel to be mounted in a conveniently accessible location.

Main features of Yaesu FTM-6000E mobile transceiver:

  • 50W / 25W / 5W stable high power with heavy-duty heat sink
  • 3W powerful, clear sounding speaker
  • New user interface - E2O-III (Easy to Operate-III)
  • PMG (Primary Memory Group): instant recall of frequently used frequencies
  • MAG (Memory Auto Grouping): automatic categorisation of all memory channels
  • VFO band skip function
  • Memory data transfer to VFO register
  • Wide reception coverage from 108MHz to 999,995MHz
  • Wireless operation via Bluetooth® headset (with purchase of optional BU-4 bluetooth panel)
  • Removable front panel
  • 1100 memory channels with character alphanumeric labels

Yaesu FTM-6000E mobile transceiver package includes:

  • FTM-6000E European standard VHF/UHF FM amateur radio mobile transceiver
  • multifunction DTMF microphone - SSM-85D
  • mounting bracket
  • mounting bracket for the controller
  • control cable 10ft (3m)
  • USB cable
  • DC power cable
  • User manual

Yaesu FTM-6000E mobile transceiver specifications:

General
Frequency Range
RX 108 -137MHz (AIR Band), 137 - 174MHz (144MHz HAM / VHF Band), 174 -400MHz, 400 -480MHz (430MHz HAM / UHF Band), 480 -999.995MHz
TX 144 - 148MHz or 144 - 146MHz, 430 -450MHz or 430 -440MHz (Depends on the transceiver version)
Channel Steps 5, 6.25, (8.33), 10, 12.5, 15, 20, 25, 50, 100kHz (8.33kHz:Only for Air band)
Frequency Stability ±2.5ppm (-20°C to +60°C)
Emission Type F2D, F3E
Supply Voltage Nominal 13.BV DC, Negative Ground
Current Consumption 0.5A {Receive) 10A (50W TX, 144MHz) 10A (50W TX, 430MHz)
Operating Temperature -20° C to +60°C
Case Size Radio Unit 139 x 42 x 132mm w/o Fan Controller 140 x 40.5 x 35mm w/o Knob
Weight (Approx.) 1.1kg with Radio Unit, Controller, Control Cable
Transmitter
RF Power Output 50W/25W/5W
Modulation Type F2D, F3E Variable Reactance Modulation
Maximum Deviation ±5kHz
Spurious Emission At least 60dB below
Microphone lmpedance 2kΩ
Data Jack lmpedance 10kΩ
Receiver
Circuit Type Double-Conversion Super heterodyne
lntermediate Frequencies 1 st:58.05MHz, 2nd:450kHz
Sensitivity 0.8µV TYP for 10dB SN (108 - 137MHz, AM) 0.2µV for 12dB SINAD (137 -150MHz, FM) 0.25µV for 12dB SINAD (150 -174MHz, FM) 0.3µV TYP for 12dB SINAD (174 - 222MHz, FM) 0.25µV TYP for 12dB SINAD (222 -300MHz, FM) 0.8µV TYP for 10dB SN (300 -338MHz, AM) 0.25µV for 12dB SINAD (338 - 420 MHz, FM) 0.2µV for 12dB SINAD (420-470 MHz, FM) 0.2µV for 12dB SINAD (470-520MHz, FM) 0.4µV TYP for 12dB SINAD (800 - 900MHz, FM) 0.8µVTYP for 12dB SINAD (900 -999.99MHz, FM)
Selectivity NFM, AM 12kHz / 30kHz (-6dB / -60dB)
AF Output 3W (80, THD 10%, 13.8V) lnternal Speaker 3W (80, THD 10%, 13.8V) External Speaker
AF Output lmpedance
Strength of secondary radio waves 4nW and below
